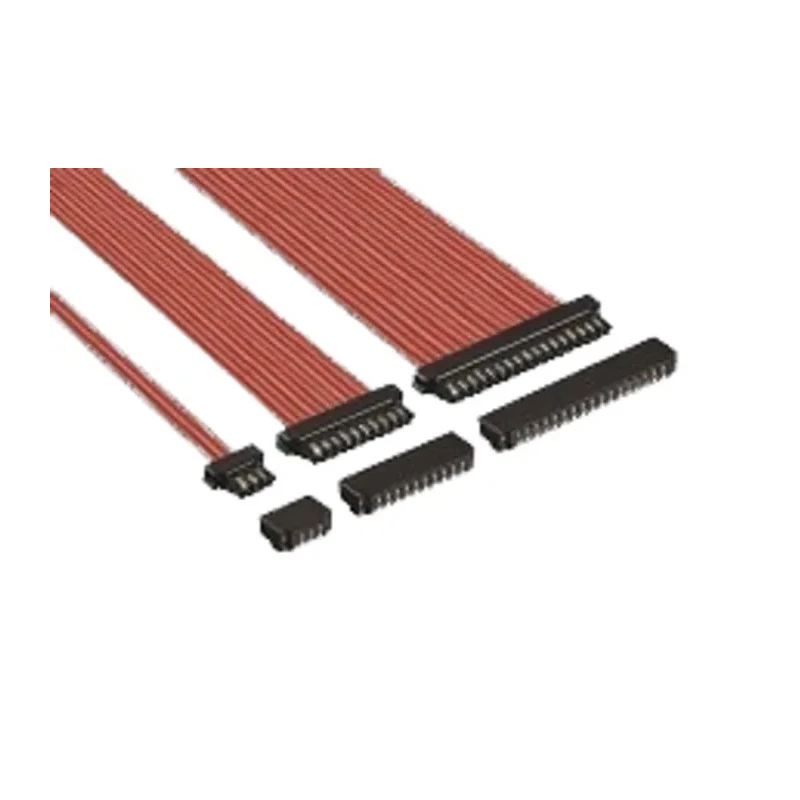

Hirose 52 Series Straight Cable FPC Connector, 20 Contacts, 0.8 mm Pitch, 1 Row DF52-20P-0.8C

Hirose DF52-20P-0.8C is a 52 Series straight cable FPC Connector designed for electronic components requiring compact and robust wire-to-board connections. With a pitch of 0.8 mm and a single row containing 20 contacts, this connector is optimized for precision and reliability in demanding industrial and commercial applications.

The housing material is polyamide, providing durability and thermal resistance to operate safely from -40°C to 85°C. The contacts are crafted from copper alloy and plated with tin to ensure low resistance and corrosion resistance. The crimp termination type supports secure cable connections, with high contact lance strength offering excellent mechanical retention.

Rated for a maximum voltage of 100 V ac and current capacity up to 1.2 mA, this connector is ideal for use in electronic devices, telecommunications, and control systems. It supports cable jackets from 0.5 to 0.6 mm outer diameter, accommodating wire gauges AWG 32 to 28.

The product features a halogen-free design complying with modern environmental standards. The robust form factor includes a 1.75 mm height and 4.1 mm depth, ensuring minimal volume on PCBs while maintaining mechanical strength. Variants include straight plugs and right-angle receptacles for flexible design integration.

The connector's compact size and high reliability make it suitable for laboratory, industrial automation, and electronic manufacturing uses. Its compatibility with DesignSpark software and availability of 3D models facilitates seamless integration into custom PCB designs and mechanical CAD workflows.

Industry users benefit from its proven ruggedness against cable wiring stress and deformation thanks to specialized crimp and contact designs. A halogen-free environmental profile supports compliance with strict manufacturing safety policies.
