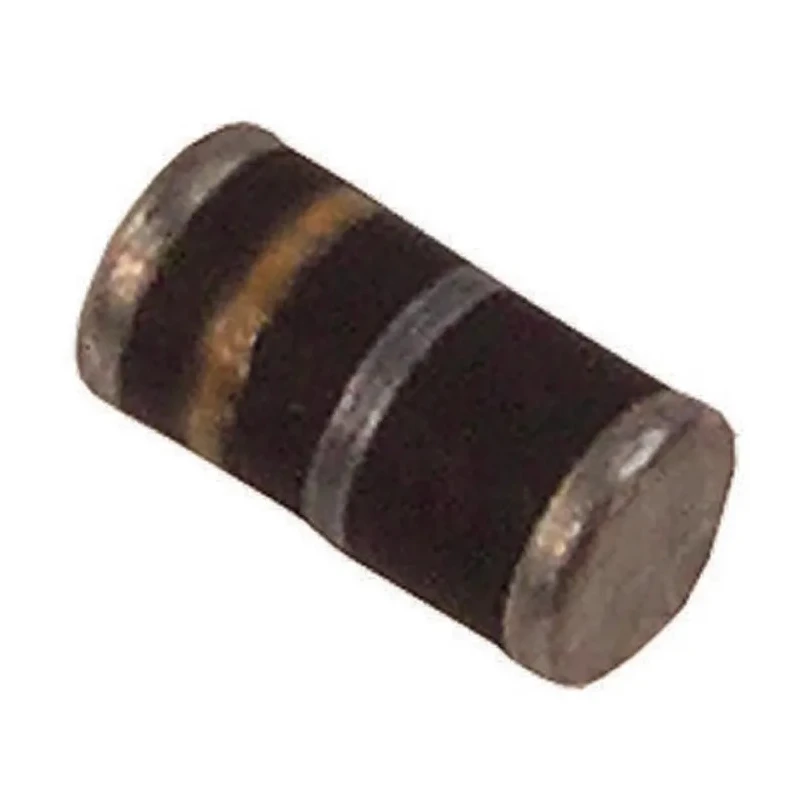

Vishay Switching Diode, Single Silicon Junction, 500 mA, 800 V, 2-Pin DO-213AA RGL34K-E3/98

Vishay RGL34K-E3/98 is a high reliability Switching Diode designed as a single silicon junction with a peak repetitive voltage rating of 800 V and a maximum forward current of 500 mA. It is housed in a 2-pin DO-213AA package with a molded epoxy over glass body providing robust mechanical protection and thermal stability.

The diode features a cavity-free glass-passivated junction with a superectifier structure that enables fast switching and low leakage current typically less than 0.2 μA. It also offers high forward surge capability, rated for 10 A peak non-repetitive forward surge current. The maximum forward voltage is 1.3 V, and peak reverse recovery time is 250 ns, suitable for efficient power switching and rectification applications.

Operating temperature extends from -65°C to 175°C, making it suitable for demanding industrial and commercial environments. The terminals are matte tin plated and comply with soldering standards J-STD-002 and JESD 22-B102. The E3 suffix indicates compliance with JESD 201 Class 1A whisker test, further ensuring reliable performance.

Common applications include high voltage rectification for G2 grids in CRTs and televisions, as well as snubber circuits for camera flashes, enabling protection and efficient switching in electronic circuits.

Features a fast switching capability with low leakage current under 0.2 μA at typical conditions. Glass passivated junction construction ensures reliability and high surge forward capability. Operates in temperature range from minus 65°C to 175°C.

Compact case size with DO-213AA epoxy molded body measuring 3.68 mm length and 1.68 mm width and height. Solder dip rated at 275 °C max for 10 seconds ensures compatibility with standard PCB manufacturing processes. Color band indicates cathode for easy polarity identification.

Typical applications include high voltage rectification in CRT and TV grids and snubber circuits in camera flashes.

This diode is an excellent choice for industrial electronics, power supply design, and electronic manufacturing requiring reliable, high-performance switching components. Explore more in the Vishay diode range at EnvMart.
