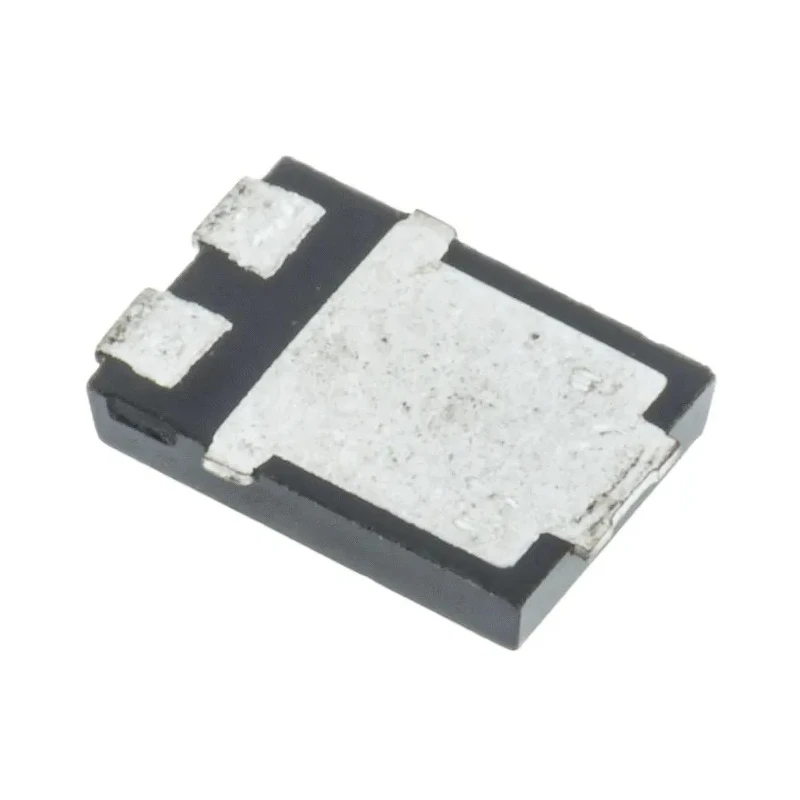

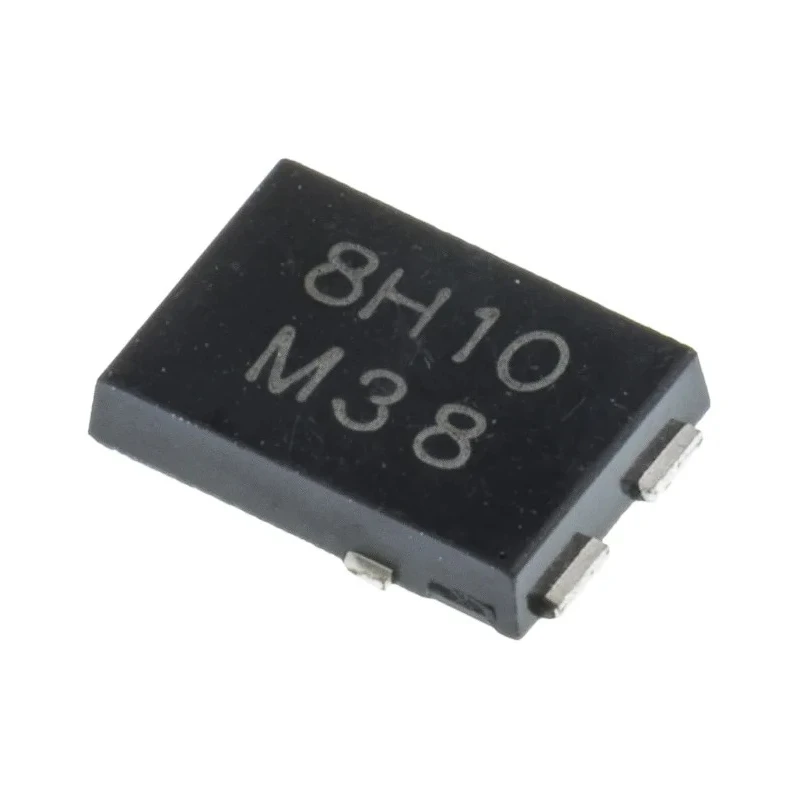

Vishay 100 V 8 A Surface Mount Schottky Rectifier TO-277A SS8PH10-M3/86A

Free Delivery in India | Lowest Global Shipping Charges

Vishay 100 V 8 A Surface Mount Schottky Rectifier TO-277A SS8PH10-M3/86A

Name: Vishay 100 V 8 A Surface Mount Schottky Rectifier TO-277A SS8PH10-M3/86A
Brand: Vishay
SKU: 218084



Category Semiconductors Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	1.2mm
Length	4.35mm
Model	SS8PH10-M3/86A
Width	6.15mm
Mount Type	Surface
Series	eSMP
Maximum Operating Temperature	175°C
Package Type	TO-277A
Minimum Operating Temperature	-55°C
Standards/Approvals	JEDEC TO-277A, JESD 201, J-STD-002, J-STD-020, RoHS, UL 94 V-0, JESD 22-B102
Pin Count	3
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	8A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	2μA
Peak Non-Repetitive Forward Surge Current Ifsm	150A
Maximum Forward Voltage Vf	900mV

Key Features

Designed for surface mount applications with 3-pin configuration.
Features a low forward voltage drop of 900 mV for high efficiency.
Operates reliably across a temperature range from -55°C to 175°C.
Complies with JEDEC TO-277A, RoHS, and AEC-Q101 automotive standards.
Offers high surge current capability up to 150 A peak non-repetitive forward surge current.
Manufactured in China with robust semiconductor quality assurance.

Product Description

Vishay SS8PH10-M3/86A Schottky Rectifier is a high-performance semiconductor diode designed for efficient switching applications requiring low forward voltage drop and fast switching speed. The device is packaged in a JEDEC-compliant TO-277A surface mount package with a 3-pin arrangement suitable for compact circuit designs.

Engineered for continuous forward current of 8 A and withstands a peak reverse repetitive voltage of 100 V. The rectifier’s maximum forward voltage drop is 900 mV which helps minimize power dissipation and improves circuit efficiency.

This Schottky rectifier supports a wide operating temperature range from -55°C to 175°C, making it suitable for industrial and automotive environments. It meets stringent automotive standards such as AEC-Q101, along with RoHS compliance and JESD certifications, ensuring reliability and regulatory adherence.

The physical dimensions of the component - 6.15 mm width, 4.35 mm length, and 1.2 mm height - enable integration into dense circuit layouts. It also provides exceptional surge current handling with a peak non-repetitive forward surge current rating of 150 A, providing robustness during transient load conditions.

Surface mount 3-pin TO-277A package. 8 A continuous forward current rating with 100 V reverse voltage capability. Low forward voltage drop of 900 mV for energy efficient operation. Wide operating temperature range from -55°C to 175°C.

Compliance with JEDEC, RoHS, AEC-Q101, and automotive standards. Compact dimensions that simplify PCB layout and assembly. High surge current capacity ensuring device durability under load peaks.

This Schottky diode is ideal for use in industrial, automotive, power supply, and electronic circuit applications requiring fast switching, low noise, and high efficiency. Vishay’s semiconductor manufacturing expertise guarantees product quality and performance compliance.
