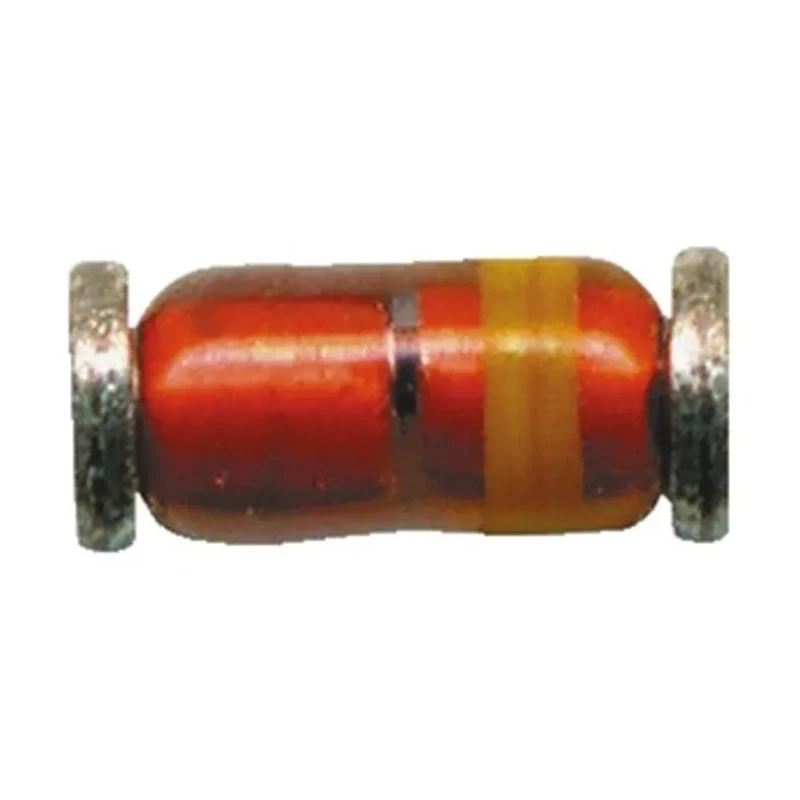

Vishay 20 V 1 W General Purpose Surface Mount Zener Diode DO-213AB ZMY20-GS08
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Length | 4mm |
| Model | ZMY20-GS08 |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-213AB |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 1W |
| Diode Configuration | Single |
| Test Current It | 25mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 20V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 12Ω |
Key Features
- Single diode configuration suitable for voltage regulation and clipping applications.
- Surface mount type in compact DO-213AB package with 2 pins.
- Maximum power dissipation of 1 watt with nominal Zener voltage of 20 volts.
- Test current is 25 mA with Zener voltage tolerance of ±5 percent.
- Operates reliably over temperature range of -55°C to 175°C.
- Maximum Zener impedance is 12 ohms and maximum reverse leakage current is 500 nanoamperes.
- Automotive standard compliance with AEC-Q101 qualification.
- Silicon planar technology for general purpose use in stabilizing and clipping circuits.
Product Description
Vishay ZMY20-GS08 is a single configuration general purpose Zener diode designed for surface mounting in electronic circuits. It features a nominal Zener voltage of 20 volts and power dissipation capacity of 1 watt, housed in a compact DO-213AB package with 2 pins, allowing efficient integration on PCBs.
This diode is engineered using silicon planar power technology, making it ideal for voltage regulation, clipping, and stabilization applications in various electronic devices. The device exhibits a test current of 25 mA and a Zener voltage tolerance of ±5%, ensuring precise voltage control in circuits.
The ZMY20-GS08 supports a wide operating temperature range from -55°C to 175°C, making it suited for harsh automotive and industrial environments. Its maximum Zener impedance of 12 ohms and maximum reverse leakage current of 500 nA contribute to its reliability and performance in demanding applications.
Qualified to the automotive standard AEC-Q101, this Zener diode meets stringent quality and reliability requirements, suitable for use in automotive electronics as well as other industrial and commercial electronic systems.
Common application areas include voltage stabilization, transient voltage suppression, and clipping circuits, particularly where a compact, surface-mounted solution is required. Single diode configuration suitable for voltage regulation and clipping applications.
Compact DO-213AB surface mount package with 2 pins. Operating temperature range from -55°C to 175°C for robust environmental performance. Nominal Zener voltage of 20 volts with ±5% tolerance. Maximum power dissipation of 1 watt supports medium power applications.
Automotive qualified to AEC-Q101 standard ensuring high reliability. Low maximum reverse leakage current (500 nA) for efficiency in circuits. Ideal for industrial, automotive, and commercial semiconductor applications. Explore more Vishay semiconductor components and electronic parts on EnvMart for your industrial and manufacturing needs.
Explore more products in our Semiconductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this model is 20 volts, with a tolerance of ±5%.
This diode has a maximum power dissipation capacity of 1 watt.
It operates reliably over a temperature range from -55°C to 175°C.
This diode is housed in a compact DO-213AB package with 2 pins.
The test current for this model is 25 mA.
It is qualified to the automotive standard AEC-Q101, ensuring high reliability.
The maximum Zener impedance is 12 ohms.
This model has a single diode configuration, with 1 element per chip.
It supports surface mounting, making it suitable for PCB integration.
Common applications include voltage stabilization, transient voltage suppression, and clipping circuits.
It is engineered using silicon planar technology for general purpose use in electronic circuits.
