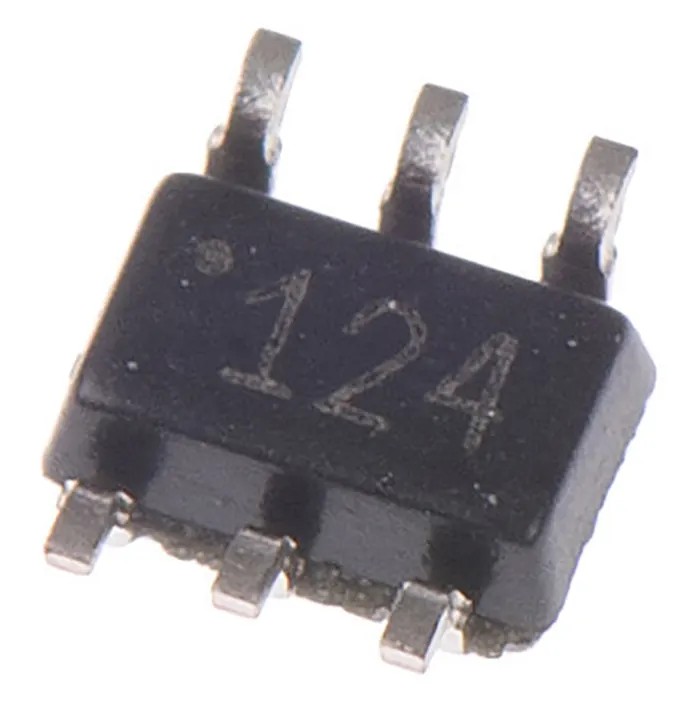

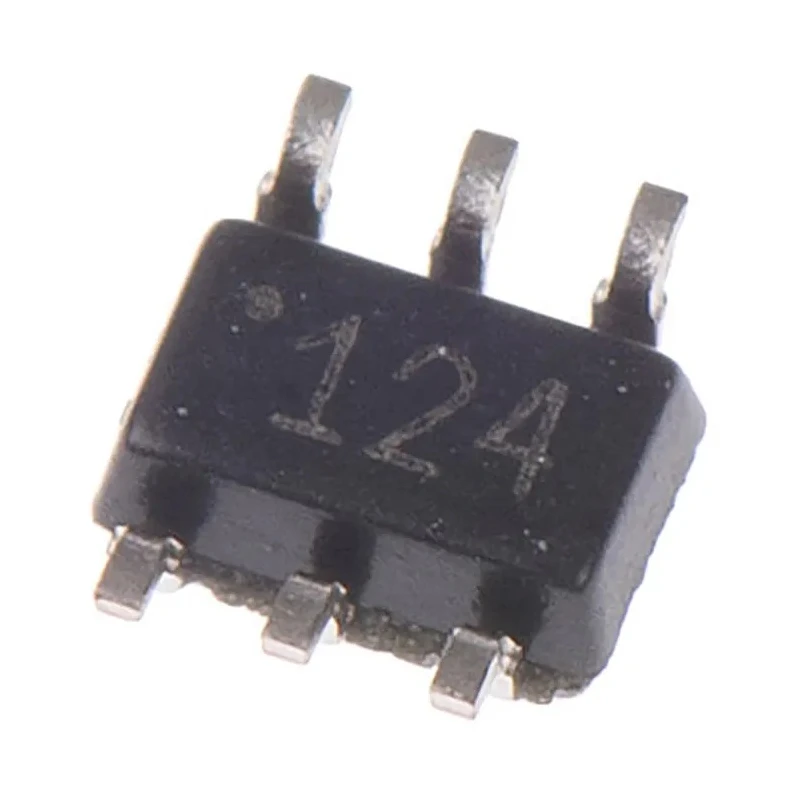

Wurth Elektronik 4-Element Uni-Directional TVS Diode Array 6-Pin SOT-363 6V Breakdown Voltage 6A Pulse Current 82400274
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 0.95mm |
| Length | 2mm |
| Model | 82400274 |
| Width | 1.25mm |
| Mount Type | Surface |
| Series | WE-TVS |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-363 |
| Minimum Operating Temperature | -55°C |
| Interfaces | USB 2 |
| Pin Count | 6 |
| Number of Elements per Chip | 4 |
| Clamping Voltage VC | 9V |
| Diode Configuration | Complex Array |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 6A |
| Maximum Reverse Leakage Current | 5μA |
Key Features
- Uni-directional diode configuration for effective transient voltage suppression.
- 4-element complex array integrated in a compact surface mount package.
- Breakdown voltage of 6V ensuring reliable voltage protection.
- Maximum peak pulse current rating of 6A for robust transient handling.
- Operating temperature range from -55°C to 85°C suitable for diverse environments.
- Low clamping voltage of 9V to protect sensitive interfaces.
- Surface mount type with SOT-363 packaging for easy PCB integration.
- Designed for USB 2.0, HDMI, DVI, Ethernet, Firewire, and Serial Bus interface protection.
Product Description
Wurth Elektronik 82400274 4-Element Uni-Directional TVS Diode Array in a 6-Pin SOT-363 surface mount package is designed for effective electrostatic discharge (ESD) protection in electronic circuits. This complex array contains four diode elements that provide fast response to suppress transient voltages, thereby protecting sensitive electronic devices.
With a minimum breakdown voltage of 6V and a maximum reverse stand-off voltage of 5V, this diode array offers robust protection against voltage spikes. The device supports a maximum peak pulse current of 6A, enabling it to handle substantial transient energy effectively.
The diode array is ideal for integration in USB 2.0, HDMI, DVI, Ethernet, Firewire, and other serial bus interfaces requiring ESD protection. It features a low clamping voltage of 9V that limits voltage during transient events, minimizing potential damage.
Compact dimensions (2mm length, 1.25mm width, 0.95mm height) and surface mount SOT-363 packaging facilitate seamless PCB assembly in space-constrained designs. The device operates over a wide temperature range from -55°C to 85°C ensuring reliability in varying environmental conditions.
Uni-directional configuration for efficient transient voltage suppression. Complex array with 4 diode elements per chip. Surface mount SOT-363 package with 6 pins. 6V minimum breakdown voltage with a 5V maximum reverse stand-off voltage.
6A maximum peak pulse current for strong transient handling. ESD protection compliant with common interface standards. Low leakage current and low clamping voltage of 9V. Operating temperature rated from -55°C to +85°C. Compact size suitable for modern electronics assemblies.
Manufactured in China by Wurth Elektronik.
This diode array is optimum for industrial, manufacturing, telecommunications, and consumer electronics applications where robust ESD protection is crucial. Its proven technology and compact design enable efficient, reliable safeguarding of delicate circuitry in demanding environments.
Explore a wide range of semiconductor protection components and accessories at EnvMart to enhance your electronic design and production efficiency.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breakdown voltage of this diode array is 6V, ensuring reliable voltage protection for sensitive electronic components.
This model has a maximum peak pulse current rating of 6A, allowing it to effectively handle substantial transient energy.
The operating temperature range for this diode array is from -55°C to 85°C, making it suitable for diverse environmental conditions.
The dimensions of the SOT-363 package are 2mm in length, 1.25mm in width, and 0.95mm in height.
It is designed for protection in USB 2.0, HDMI, DVI, Ethernet, Firewire, and other serial bus interfaces.
The clamping voltage during transient events is 9V, which helps to limit voltage and protect sensitive components.
This model includes four diode elements per chip, providing effective transient voltage suppression.
This diode array uses a surface mount type, specifically designed for easy PCB integration.
The maximum reverse stand-off voltage for this diode array is 5V, which is crucial for its operation.
The maximum reverse leakage current for this model is 5μA, ensuring minimal power loss during operation.
This product is manufactured in China by Wurth Elektronik.
