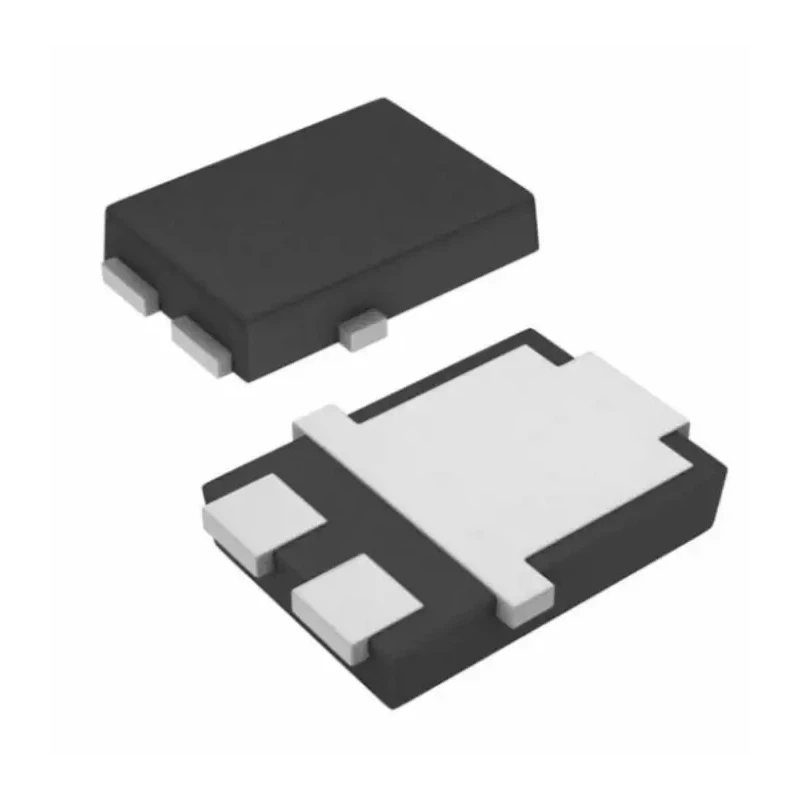

Vishay 60 V 10 A Surface Mount Schottky Diode 3-Pin TO-277 SS10P6-M3/86A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.2mm |
| Length | 6.15mm |
| Model | SS10P6-M3/86A |
| Width | 4.35mm |
| Mount Type | Surface |
| Series | SS10P6 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-277 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 150μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 280A |
| Maximum Forward Voltage Vf | 670mV |
Key Features
- Features a maximum forward current rating of 10 amperes ensuring high current handling.
- Supports peak reverse repetitive voltage of 60 volts suitable for medium voltage circuits.
- Designed with a low maximum forward voltage drop of 670 mV to minimize power loss.
- Operates within a temperature range of -55°C to 150°C for reliable thermal performance.
- Has a peak non-repetitive surge current capacity of 280 amperes for handling transient conditions.
- Employs a single diode configuration with fast switching capability inherent to Schottky types.
- Pin count is three suitable for typical connections in power rectification circuits.
- Product origin is China, meeting standard manufacturing quality requirements.
Product Description
Vishay SS10P6-M3/86A is a high-performance surface mount Schottky diode designed for power and fast switching applications. This diode features a maximum continuous forward current of 10 A and a peak reverse repetitive voltage of 60 V, which makes it suitable for medium voltage rectification tasks.
The device exhibits a low forward voltage drop of 670 mV, reducing power dissipation and improving energy efficiency in electronic circuits. Its peak non-repetitive forward surge current rating of 280 A allows it to withstand transient current spikes commonly encountered in industrial environments.
Constructed in a compact TO-277 package with three pins, the diode ensures convenient mounting on printed circuit boards with surface mount technology. The physical dimensions (length: 6.15 mm, width: 4.35 mm, height: 1.2 mm) support dense assembly in space-constrained applications.
Operating temperature ranges from -55°C to 150°C, enabling reliable function in harsh environmental conditions suitable for industrial, automotive, and power management electronics. Its single diode configuration and Schottky rectifier properties offer extremely fast switching and very low reverse recovery times, reducing switching losses effectively.
Applications include power supply rectification, freewheeling diodes in motor drives, and other electronic power conversion systems requiring efficient and reliable diodes. Maximum continuous forward current: 10 A. Peak reverse repetitive voltage: 60 V.
Forward voltage drop: 670 mV max. Operating temperature range: -55°C to 150°C. Peak surge current: 280 A. Surface mount TO-277 package with 3 pins. Compact size allowing high-density PCB layouts. Designed for fast switching applications.
Country of origin is China. This product complies with Vishay Semiconductor standards but does not list specific certifications. Discover more Schottky Diodes and electronic components in the Vishay category on EnvMart for industrial and electronics manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this diode is 10 A.
This model supports a peak reverse repetitive voltage of 60 V, making it suitable for medium voltage circuits.
The diode has a maximum forward voltage drop of 670 mV, which helps minimize power loss.
It operates within a temperature range of -55°C to 150°C, ensuring reliable performance in various conditions.
The peak non-repetitive forward surge current capacity is 280 A, allowing it to handle transient conditions.
This diode is packaged in a TO-277 surface mount configuration with three pins, suitable for typical connections in power rectification circuits.
The physical dimensions are 6.15 mm in length, 4.35 mm in width, and 1.2 mm in height.
It is a Schottky rectifier, designed for fast switching applications with low reverse recovery times.
This diode is suitable for applications such as power supply rectification and freewheeling diodes in motor drives.
The diode features a pin count of three, which is typical for surface mount connections.
The peak reverse current is specified at 150 μA, which is relevant for its performance in circuits.
The product is manufactured in China, meeting standard manufacturing quality requirements.
