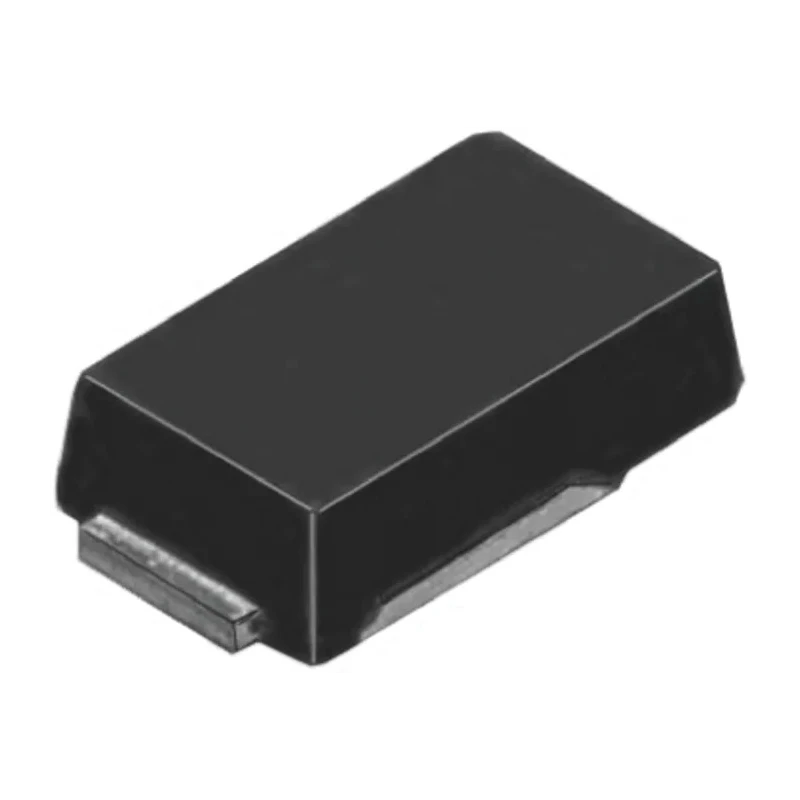

Vishay Switching Diode, Single Silicon Junction, Surface Mount SMP Package 2-Pin 1 A 400 V RS1PG-M3/84A

Free Delivery in India | Lowest Global Shipping Charges

Vishay Switching Diode, Single Silicon Junction, Surface Mount SMP Package 2-Pin 1 A 400 V RS1PG-M3/84A

Name: Vishay Switching Diode, Single Silicon Junction, Surface Mount SMP Package 2-Pin 1 A 400 V RS1PG-M3/84A
Brand: Vishay
SKU: 217948
Price: 0.32 USD
Availability: InStock



Category Switching Diode Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	1.15mm
Length	3.61mm
Model	RS1PG-M3/84A
Width	2.18mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SMP
Sub Type	Silicon Junction
Minimum Operating Temperature	-55°C
Pin Count	2
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	30A
Maximum Forward Voltage Vf	1.3V
Peak Reverse Recovery Time trr	250ns
Maximum Forward Current If	1A
Maximum Peak Reverse Repetitive Voltage Vrrm	400V

Key Features

Single silicon junction diode configuration ensures efficient switching performance.
Maximum forward current rated at 1 ampere.
Peak reverse repetitive voltage up to 400 volts supports high-voltage applications.
Package type is SMP with low profile dimensions of 3.61 mm length by 2.18 mm width and 1.15 mm height.
Peak non-repetitive forward surge current capability of 30 amperes.
Fast recovery time of 250 nanoseconds ensures quick switching response.
Operating temperature range from -55°C to 150°C for reliable performance in harsh environments.
Maximum forward voltage drop is 1.3 volts for minimal power loss.

Product Description

Vishay RS1PG-M3/84A switching diode is a high-efficiency single silicon junction diode designed for fast switching applications. It supports a maximum forward current of 1 ampere and withstands peak reverse voltages of up to 400 volts. The diode is housed in a compact surface mount SMP package with 2 pins, featuring dimensions of 3.61 mm length, 2.18 mm width, and a low profile height of 1.15 mm. This design is ideal for modern electronic circuits requiring efficient power rectification and switching.

The device exhibits a peak non-repetitive forward surge current rating of 30 amperes and a fast recovery time of 250 nanoseconds, ensuring rapid switching capabilities with minimal losses. It operates reliably in a wide temperature range from -55°C to 150°C, making it suitable for industrial, automotive, power supply, and general semiconductor applications.

The maximum forward voltage drop of 1.3 volts contributes to energy efficiency, while the surface mount configuration optimizes PCB space usage and supports automated manufacturing processes.

Single silicon junction configuration for switching diode functionality. 1 A maximum continuous forward current rating. Peak reverse repetitive voltage of 400 V for high-voltage tolerance. Fast recovery time of 250 ns for efficient switching.

Wide operating temperature range from -55°C to 150°C. Compact SMP package suitable for surface mounting. Low forward voltage drop of 1.3 V reduces power dissipation. High peak surge current capacity of 30 A. 2-pin configuration enabling easy integration in circuits.

Manufactured in China under Vishay Semiconductor quality standards.

This Vishay switching diode RS1PG-M3/84A is widely used in electronic circuits requiring fast rectification such as power supplies, switching regulators, and industrial control equipment. Its reliable and compact design makes it a robust choice for modern electronics manufacturing processes. Browse more Vishay semiconductor components and Switching Diodes on EnvMart for your next project.
