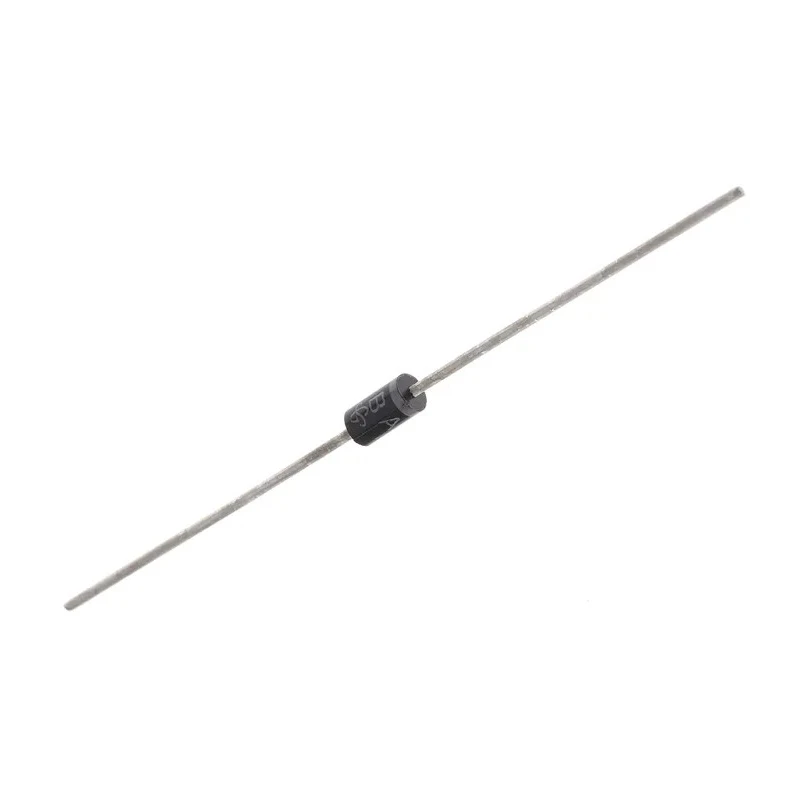

Vishay Switching Diode Single 1 A 2-Pin 1000 V DO-204AL BA159-E3/54

Vishay BA159-E3/54 is a high-efficiency switching diode featuring a single silicon junction capable of handling a continuous forward current of 1 ampere and a maximum peak reverse voltage rating of 1000 volts. Housed in a compact DO-204AL package, it supports through-hole mounting with a 2-pin configuration suitable for a wide range of industrial and electronic circuit designs.

This diode offers a fast peak reverse recovery time of 500 nanoseconds, making it ideal for switching applications that require rapid response times. The maximum forward voltage of 1.3 volts ensures low power dissipation during conduction, enhancing overall system efficiency.

Operating temperature ranges from -65°C up to 125°C, providing robust performance under harsh environmental conditions. Its peak non-repetitive forward surge current capability reaches 20 amperes, suitable for transient high current conditions.

The physical dimensions are 5.2 mm in length, with a width and height of 2.7 mm each, facilitating low-profile PCB mounting and integration.

Applications include switching and avalanche rectification in power supplies, industrial machinery, consumer electronics, and other semiconductor switching tasks requiring fast recovery diodes.

The diode features a peak non-repetitive forward surge current of 20A. It offers a maximum forward voltage of 1.3V ensuring efficient conduction. Designed for through-hole mounting with 2-pin configuration. Complies with fast recovery rectifier standards with a peak reverse recovery time of 500ns.

Operates reliably within the temperature range of -65°C to 125°C. Ideal for industrial and electronic applications requiring fast switching and avalanche rectification. Explore more Vishay semiconductor Switching Diodes on EnvMart for reliable and high-performance electronic components.
