| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.7mm |
| Length | 3.9mm |
| Model | BZX55C16-TAP |
| Mount Type | Through Hole |
| Series | BZX55 |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-27 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 100nA |
| Nominal Zener Voltage Vz | 16V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 40Ω |

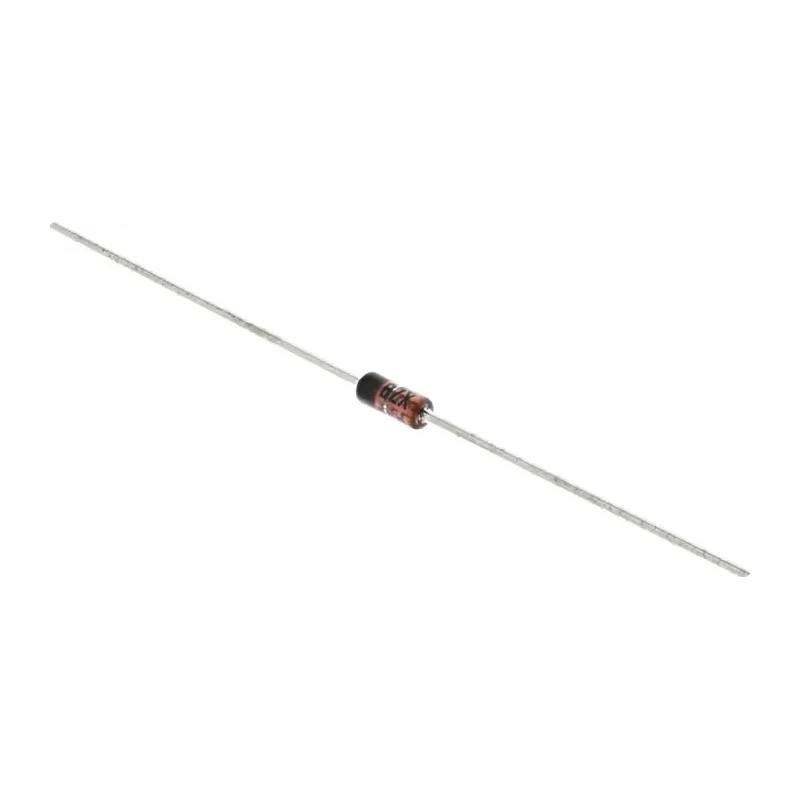

Vishay BZX55C16-TAP is a high stability Single Zener Diode designed for voltage regulation with a nominal Zener voltage of 16 V and maximum power dissipation of 500 mW. Packaged in a robust Through Hole 2-pin SOD-27 form factor, it provides reliable performance in a compact size measuring 3.9 mm in length and 1.7 mm in height.
This diode features very sharp reverse characteristics with very low reverse current and noise, making it suitable for precise voltage regulation applications in electronic, automotive, and industrial circuits. The diode operates efficiently under a test current of 5 mA and maintains a maximum Zener impedance of 40 Ω, ensuring stable voltage clamping performance.
Designed for harsh operating environments, it withstands temperatures ranging from -65°C up to 175°C. Compliance with RoHS standards and qualification under AEC-Q101 ensures suitability for automotive and high-reliability industrial applications.
The 2-pin Through Hole package enables easy mounting and integration into various PCB designs. Its low maximum reverse leakage current of 100 nA further supports its application in precision circuits requiring minimal leakage and noise interference.
This diode is ideal for voltage regulation and protection systems in electronic, automotive, industrial, and power supply applications. Its compact SOD-27 package is tailored for through-hole mount installations. Robust temperature range supports use in demanding environmental conditions.
RoHS compliance ensures environmental and safety standards are met. AEC-Q101 certification supports automotive industry quality demands. Providing high stability and low noise voltage regulation in compact form. Perfect for integration in power management and signal conditioning circuits.
Explore Vishay semiconductor components on EnvMart for high-quality Zener Diodes designed for industrial and automotive electronic applications.
