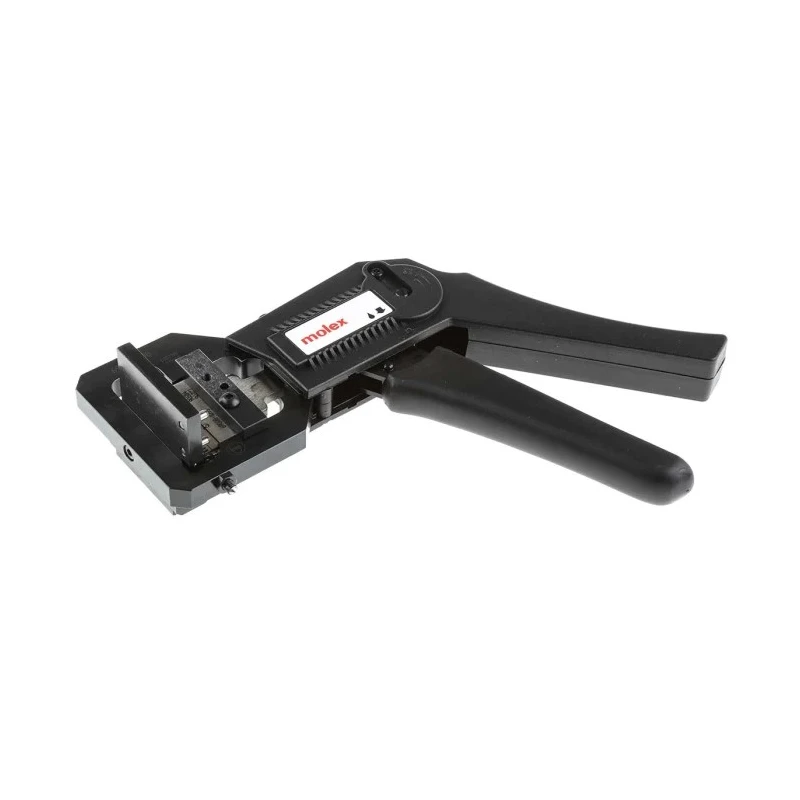

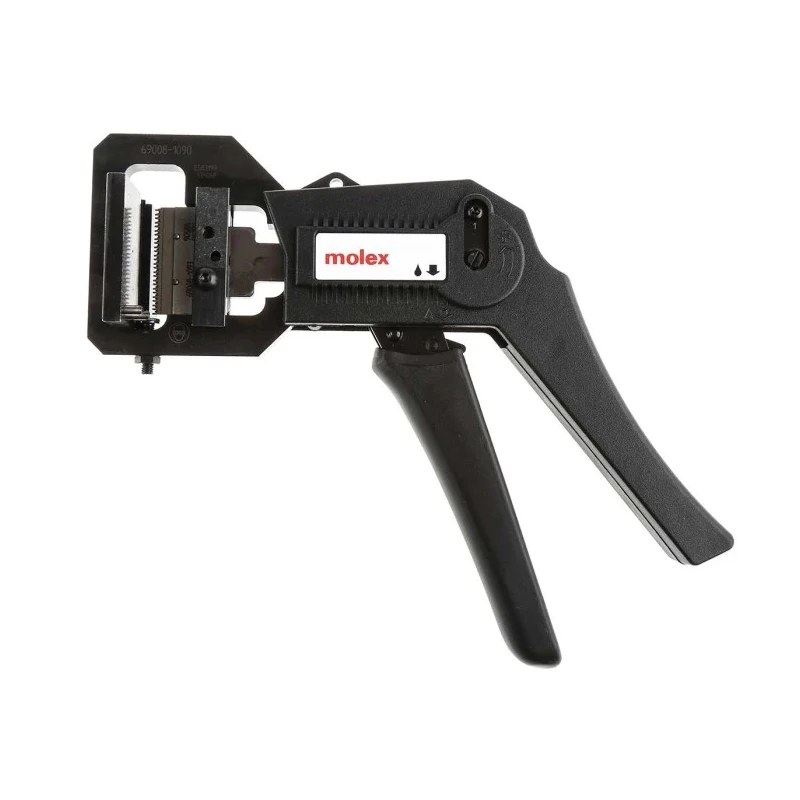

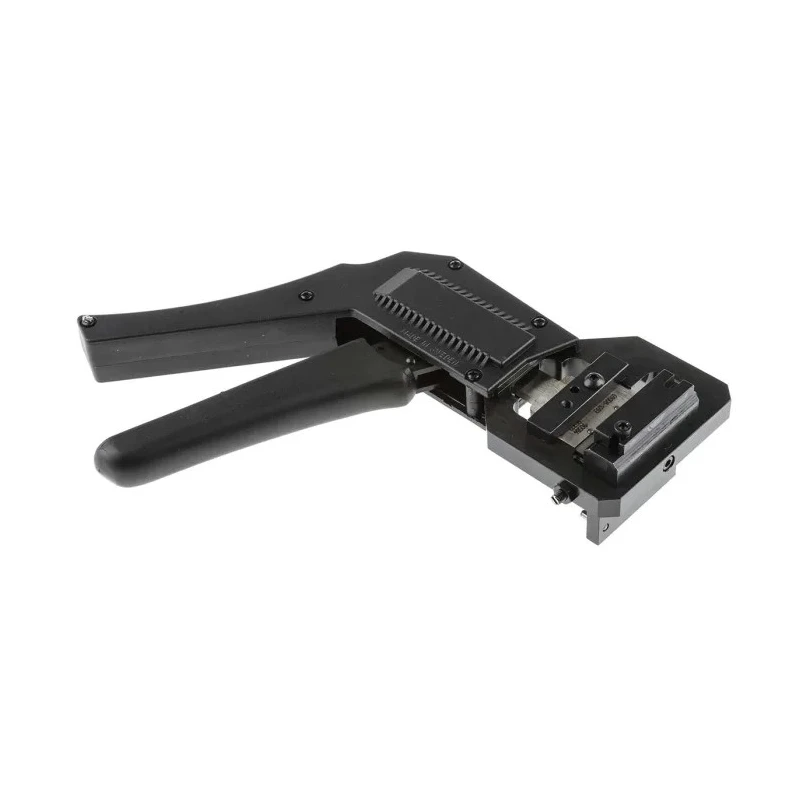

Molex PremiumGrade Ratchet IDC Hand Tool for IDT Connector Crimping 200mm Length 750g 69008-1090
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Series | PremiumGrade |
| Sub Type | Hand Tool |
| For Use With | IDT |
Key Features
- The ratchet mechanism locks until crimping cycle completes ensuring consistent terminations.
- Press the release lever to reset the tool in case of jams or misplacements.
- Features a numbered adjustment wheel to set handle force for specific system requirements.
- Lightweight design at 750 grams for ease of handling and portability.
- Supports both feed-to and feed-through wire termination styles for versatility.
- Adjustable stop screw and bracket aid in precise connector alignment and positioning.
- Suitable for applications in computing, automotive, robotics, and automation industries.
Product Description
Molex 69008-1090 PremiumGrade Ratchet IDC Hand Tool is engineered for crimping insulation displacement terminals (IDT) onto wiring harnesses efficiently and accurately. Measuring 200mm in length and weighing 750 grams, this hand tool ensures precise cable termination for sizes ranging from 28 to 26 AWG.
This manual IDC termination tool utilizes a ratchet mechanism that remains locked until the full crimp cycle is complete, enabling consistent, high-quality cable connections. The release lever provides quick reset capability if terminal misplacement or jamming occurs. An adjustable numbered wheel allows fine-tuning of the handle force to suit different connector systems.
The design accommodates both feed-to (unterminated wire harnesses) and feed-through (wire harnesses pre-terminated on one end) termination methods, improving operational versatility. The tool’s insertion blades are customized and marked for IDT connector series, supported by adjustable stop screw and bracket that ensure precise connector alignment during use.
Lightweight and portable, this IDC hand tool is suitable for demanding industrial environments including computing hardware assembly, automotive manufacturing, and robotic automation systems.
The ratchet mechanism ensures secure, repeatable crimps. Adjustable stop screw enables perfect connector alignment. Numbered adjustment wheel customizes handle force. Lightweight for ease of use and mobility. Supports multiple wiring termination techniques.
Compatible with cable sizes 28 to 26 AWG. Ideal for computing, automotive, and automation applications.
This product delivers reliable and precise IDC terminations critical for high-integrity electrical connections in industrial and commercial settings. Its robust yet ergonomic design supports extended use in manufacturing, laboratory, and automation sectors.
Explore more in the Hand Tools / Cable, Connector & Crimping Tools category at EnvMart for professional-grade crimping and termination solutions.
Explore more products in our Cable, Connector & Crimping Tools category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is designed to crimp insulation displacement terminals (IDT) onto wiring harnesses for cable sizes ranging from 28 to 26 AWG.
It utilizes a ratchet mechanism that locks until the full crimp cycle is complete, ensuring consistent terminations.
The numbered adjustment wheel allows users to set the handle force for specific system requirements, enabling fine-tuning for different connector systems.
It supports both feed-to and feed-through wire termination styles, providing versatility for different applications.
This hand tool weighs 750 grams and measures 200mm in length, making it lightweight and portable for ease of handling.
It is suitable for applications in computing, automotive, robotics, and automation industries, ensuring reliable cable terminations.
Yes, it features a release lever that allows for quick resetting in case of terminal misplacement or jamming.
An adjustable stop screw and bracket are included to assist in precise connector alignment and positioning while crimping.
The country of origin for this product is India.
This tool is part of the PremiumGrade series by Molex, designed for high-quality crimping applications.
The insertion blades are customized and marked for IDT connector series, ensuring accurate and efficient crimping.
The design focuses on ergonomic handling and operational versatility, making it suitable for extended use in demanding environments.
