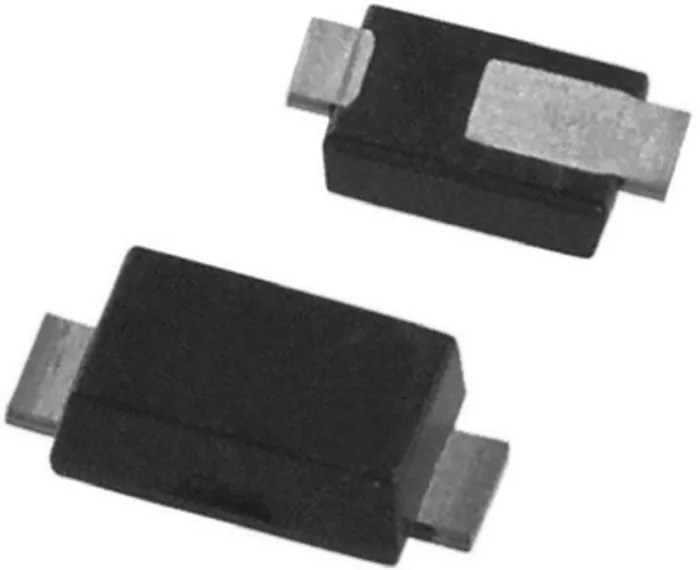

DiodesZetex 40 V 2 A Schottky Diode Surface Mount PowerDI123 2-Pin DFLS240L-7
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1mm |
| Length | 3mm |
| Model | DFLS240L-7 |
| Width | 1.93mm |
| Mount Type | Surface |
| Series | DFLS240L |
| Maximum Operating Temperature | 125°C |
| Package Type | PowerDI123 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 650mV |
Key Features
- This diode supports a maximum continuous forward current of 2 amperes.
- It features a peak reverse repetitive voltage rating of 40 volts, suitable for various power applications.
- The maximum forward voltage is 650 millivolts, ensuring efficient performance.
- It has a peak reverse current of 10 milliamperes, maintaining low leakage.
- The diode operates safely over a temperature range from -55°C to 125°C.
- It can withstand a peak non-repetitive forward surge current of 50 amperes.
- The compact dimensions are 3 mm length, 1.93 mm width, and 1 mm height.
- Designed to comply with automotive standard AEC-Q101 for high reliability.
Product Description
DiodesZetex DFLS240L-7 is a high-quality Schottky diode featuring a 40 V peak reverse voltage and 2 A maximum continuous forward current. Packaged in a compact PowerDI123 2-pin surface mount type, it is designed for reliable and efficient performance in various electronic circuits.
Schottky diodes are known for their low forward voltage drop and fast switching characteristics. The DFLS240L-7 exhibits a maximum forward voltage of 650 mV, contributing to improved energy efficiency and reduced heat dissipation in power-sensitive applications.
The diode maintains low leakage current with a peak reverse current of only 10 mA, ensuring stability and longevity in circuit designs. It sustains a broad operating temperature range from -55°C to 125°C, making it suitable for harsh environments, including industrial and automotive uses.
This diode also withstands a peak non-repetitive forward surge current of up to 50 A, allowing it to handle transient overloads effectively. The physical dimensions of 3 mm length, 1.93 mm width, and 1 mm height support compact board layouts and space-constrained designs.
Certified to automotive standard AEC-Q101, the DFLS240L-7 offers enhanced reliability demanded in automotive electronics and other critical fields. Maximum continuous forward current: 2 A. Peak reverse repetitive voltage: 40 V.
Maximum forward voltage: 650 mV. Peak reverse current: 10 mA. Operating temperature range: -55°C to 125°C. Peak non-repetitive forward surge current: 50 A. Compact surface mount PowerDI123 package. Automotive standard AEC-Q101 compliant.
Manufactured in China.
This product is ideal for industrial, automotive, and electronic applications requiring reliable rectification and fast switching performance. Browse more Schottky Diodes and rectifiers on EnvMart to find components matching your technical and budgetary requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the DFLS240L-7 Schottky diode is 2 amperes.
This diode features a peak reverse repetitive voltage rating of 40 volts.
The dimensions of this diode are 3 mm in length, 1.93 mm in width, and 1 mm in height.
The maximum forward voltage drop for the DFLS240L-7 is 650 millivolts.
It operates safely over a temperature range from -55°C to 125°C.
The diode can withstand a peak non-repetitive forward surge current of 50 amperes.
The peak reverse current for the DFLS240L-7 is 10 milliamperes.
This model uses a surface mount type packaging.
Yes, the DFLS240L-7 is designed to comply with automotive standard AEC-Q101 for high reliability.
The diode configuration for this model is single.
The DFLS240L-7 is classified as a Schottky rectifier.
This diode is manufactured in China.
