| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.35mm |
| Length | 1.7mm |
| Model | 1N4448HWT-7 |
| Width | 0.9mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-523 |
| Sub Type | Silicon Junction |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Power Dissipation Pd | 150mW |
| Diode Configuration | Single |
| Peak Non-Repetitive Forward Surge Current Ifsm | 2A |
| Maximum Forward Voltage Vf | 1.25V |
| Peak Reverse Recovery Time trr | 4ns |
| Maximum Forward Current If | 250mA |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 80V |

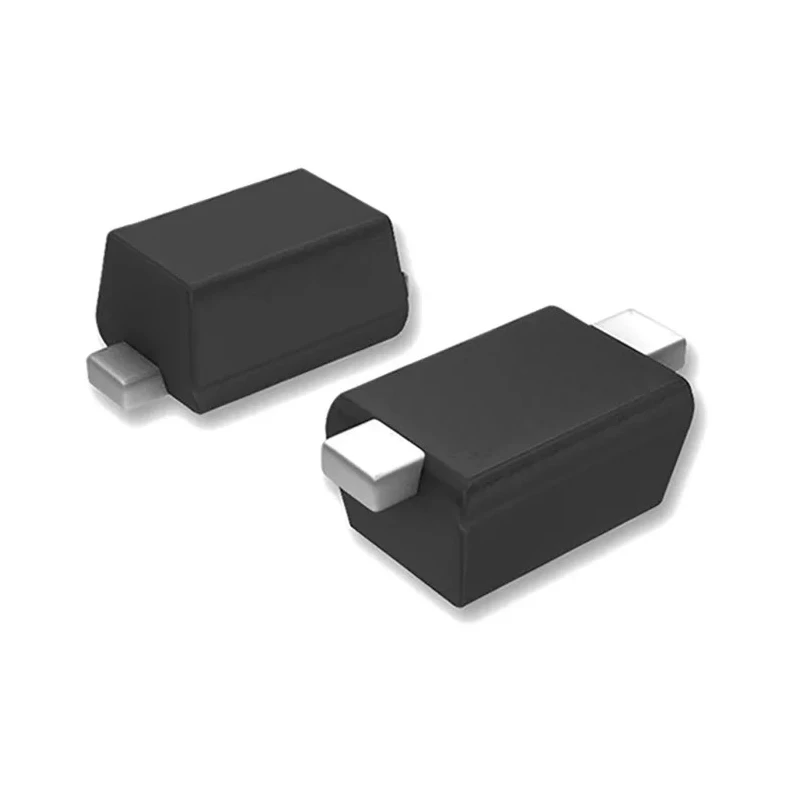

DiodesZetex 1N4448HWT-7 is a high-performance silicon junction switching diode designed for surface mount technology applications. It features a single diode configuration with a maximum forward current rating of 250mA, allowing reliable switching in low to medium current electronic circuits.
Encapsulated in a compact SOD-523 package with two pins, this diode fits well into compact PCB designs, maintaining high efficiency and low profile. It has a maximum peak reverse repetitive voltage of 80 volts and a maximum power dissipation of 150 milliwatts, making it suitable for a range of low voltage switching applications in electronics.
The diode supports high-speed switching with a peak reverse recovery time of 4 nanoseconds. It also withstands peak non-repetitive forward surge currents up to 2 amperes, ensuring durability under transient conditions. Its forward voltage maximum is 1.25 volts, optimizing conduction properties during operation.
The device operates over a wide temperature range from -65°C to 150°C, catering to demanding industrial, commercial, and electronic manufacturing environments. Dimensional specifications include a length of 1.7 mm, width of 0.9 mm, and height of 1.35 mm, providing precise mounting and low-profile circuit integration.
This switching diode is ideal for use in industrial electronics, telecommunications, consumer electronics, and testing and measurement equipment where fast switching and reliability are critical.
Single diode configuration suitable for switching applications. Supports maximum forward current of 250mA for efficient operation. Compact SOD-523 package designed for surface mount technology. Rated for a maximum peak reverse repetitive voltage of 80 volts.
Fast switching with peak reverse recovery time of 4 nanoseconds. Maximum power dissipation of 150 milliwatts ensures sustained performance. Wide operating temperature range from -65°C to 150°C. Peak forward voltage of 1.25 volts optimizes conduction.
Can handle peak non-repetitive forward surge current of up to 2 amperes. Small dimensions (1.7x0.9x1.35 mm) support compact electronic designs. Explore more semiconductor components at EnvMart for industrial, laboratory, and manufacturing applications.
Explore more products in our Switching Diodes category.
