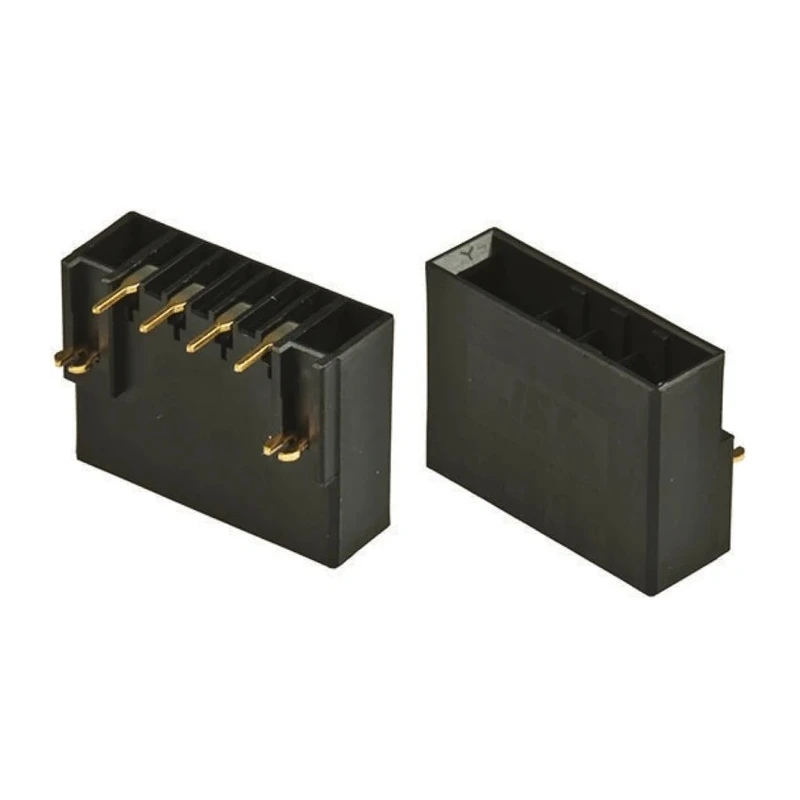

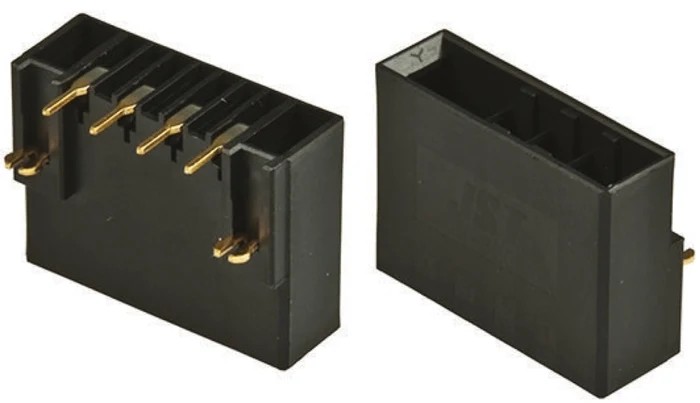

JST JFA J300 Series Right Angle Through Hole PCB Header 3 Contacts 5.08 mm Pitch 1 Row Shrouded S03B-F32SK-GGXR

Free Delivery in India | Lowest Global Shipping Charges

JST JFA J300 Series Right Angle Through Hole PCB Header 3 Contacts 5.08 mm Pitch 1 Row Shrouded S03B-F32SK-GGXR



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	Japan
Voltage	600V
Brand	JST
Orientation	Right Angle
Current	10.5A
Model	S03B-F32SK-GGXR
Mount Type	Through Hole
Contact Material	Copper Alloy
Series	JFA J300
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Interfaces	lances
Number of Rows	1
Pitch	5.08mm
Contact Plating	Gold
Number of Contacts	3
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

This PCB header supports a current rating of 10.5 amperes.
Features a right-angle orientation for versatile PCB assembly.
Constructed with copper alloy contacts plated with gold for reliable conductivity.
Designed with a shrouded housing and lances for secure locking and polarization.
Compatible with wire-to-board connector systems and through-hole mount types.
Rated for operating temperatures ranging from -55°C to 105°C.
Supports voltages up to 600 volts for robust electrical applications.
Manufactured in Japan ensuring high quality standards.

Product Description

The JST S03B-F32SK-GGXR is a high-quality Right Angle Through Hole PCB Header from the JFA J300 Series, featuring 3 contacts and a 5.08 mm pitch in a single row configuration. Engineered for maximum performance, this shrouded header offers secure and reliable wire-to-board connections in electronic assemblies.

Its right-angle orientation facilitates efficient PCB layout and space-saving design. The copper alloy contacts are plated with gold, ensuring excellent conductivity and resistance to corrosion. The double spring construction within this series enhances connection reliability by providing optimal contact pressure and stability.

Designed to operate under harsh conditions, this header supports a temperature range from -55°C to 105°C and withstands voltages of up to 600V. The shrouded housing and integrated lances offer a secure locking mechanism along with polarization features to prevent incorrect mating, contributing to safer and error-free installations.

This PCB header is compatible with solder termination and through-hole mounting, making it suitable for a wide range of industrial, automotive, telecommunication, and electronic manufacturing applications. Its robust construction and high current rating of 10.5A assure dependable performance in demanding environments.

This PCB header supports a current rating of 10.5 amperes. Features a right-angle orientation for versatile PCB assembly. Constructed with copper alloy contacts plated with gold for reliable conductivity. Designed with a shrouded housing and lances for secure locking and polarization.

Compatible with wire-to-board connector systems and through-hole mount types. Rated for operating temperatures ranging from -55°C to 105°C. Supports voltages up to 600 volts for robust electrical applications. Manufactured in Japan ensuring high quality standards.
