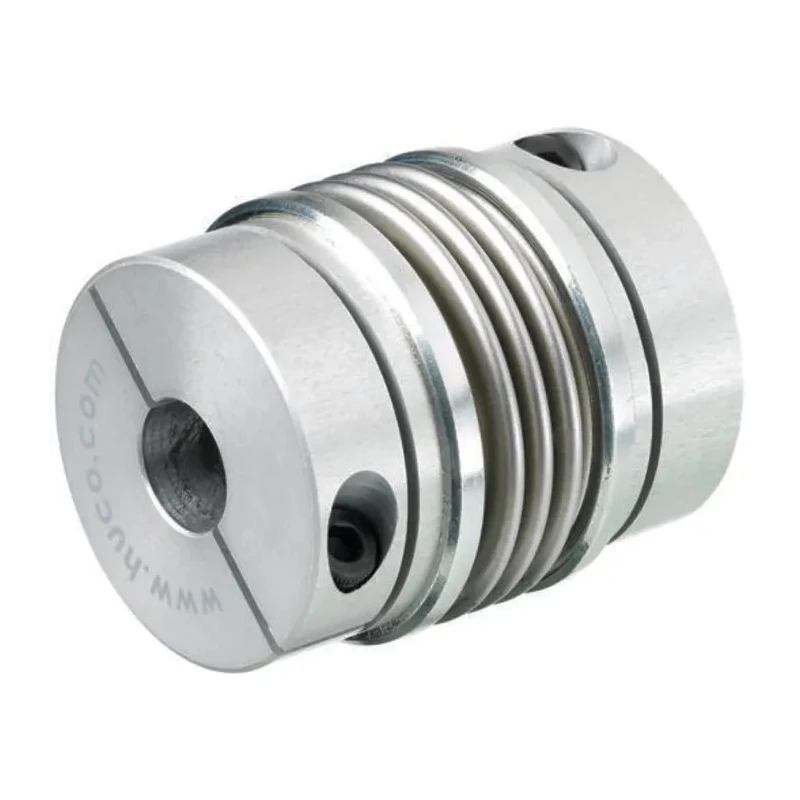

Huco Stainless Steel Bellows Screw Style Flexible Coupler 12 mm Bore 41 mm OD 49.7 mm Length 530.41.3535

Free Delivery in India | Lowest Global Shipping Charges

Huco Stainless Steel Bellows Screw Style Flexible Coupler 12 mm Bore 41 mm OD 49.7 mm Length 530.41.3535

Name: Huco Stainless Steel Bellows Screw Style Flexible Coupler 12 mm Bore 41 mm OD 49.7 mm Length 530.41.3535
Brand: Huco
SKU: 213078
Price: 65.86 USD
Availability: InStock



Category Mechanical Power Transmission Couplers Brand Huco Condition New

Specifications

Country of Origin	United Kingdom
Screw Size	M6
Brand	Huco
Length	49.7mm
Maximum Speed	5000rpm
Series	Flex B
Maximum Operating Temperature	120°C
Minimum Operating Temperature	-40°C
Torque Rating	7.61Nm
Hub Material	Aluminium
Moment of Inertia	2490 x 10-8 kg/m²
Misalignment - Angular	2.5°
Misalignment - Parallel	0.15mm
Misalignment - Axial	0.8mm
Bellows Material	Stainless Steel
Bore Size B	12mm

Key Features

The aluminium hub ensures lightweight and durability.
Suitable for high precision servo drive applications due to high torsional stiffness.
Accommodates angular, parallel, and axial misalignments effectively.
Stainless steel bellows provide corrosion resistance and flexibility.
The coupler supports a maximum speed of 5000 rpm for dynamic position control.
Operates reliably within a temperature range from -40°C to 120°C.
Set screw style with M6 screw size for secure attachment.
Compact design with low moment of inertia ideal for precision control.

Product Description

Huco 530.41.3535 stainless steel bellows flexible coupler is designed for mechanical power transmission with precision and reliability. Featuring a 12 mm bore size and 41 mm outside diameter, its compact length of 49.7 mm makes it suitable for space-constrained installations. The aluminium hub ensures an optimal balance between weight and strength, while the stainless steel bellows provide flexibility and resistance to fatigue.

This flexible coupler accommodates angular misalignment of up to 2.5°, parallel misalignment of 0.15 mm, and axial misalignment of 0.8 mm, ensuring consistent torque transmission without compromising positional accuracy. Rated for a maximum speed of 5000 rpm and torque capacity of 7.61 Nm, it is ideal for servo drive applications requiring high torsional stiffness.

The coupler operates reliably between -40°C and 120°C, making it suitable for demanding industrial environments. The set screw style uses an M6 screw size to secure the hub firmly onto shafts. Its low moment of inertia (2.49 x 10^-5 kg·m²) enhances dynamic performance, ensuring fast response and minimal vibration.

The aluminium hub provides strength with low weight. Stainless steel bellows offer excellent durability and flexibility. Supports high RPM up to 5000 for dynamic control systems. Effective compensation for multiple misalignments types.

Compact and lightweight design ensures easy installation. Suitable for servo drive and precise positioning applications. Operates safely within a wide temperature range including sub-zero conditions. Corrosion-resistant materials extend product lifespan.

This flexible coupling from Huco is widely used in industrial tools and equipment sectors, particularly in mechanical machinery and power transmission systems requiring precision coupling solutions. Its robust construction and engineered flexibility make it ideal for manufacturing, HVAC, automation, and servo motor applications.

Explore Huco coupler products at EnvMart for reliable power transmission solutions crafted for industrial performance and precision engineering.
