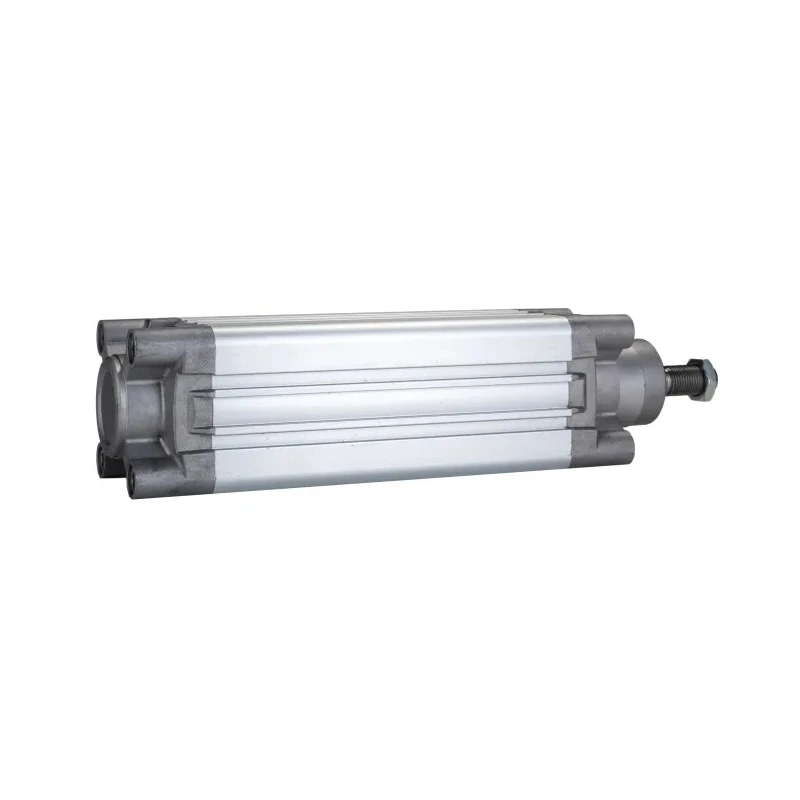

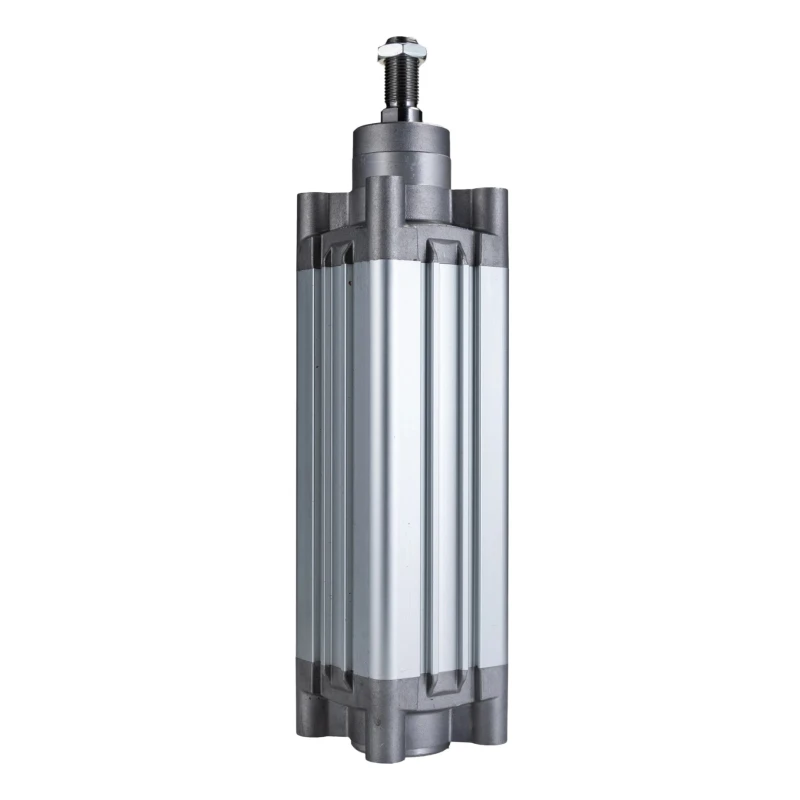

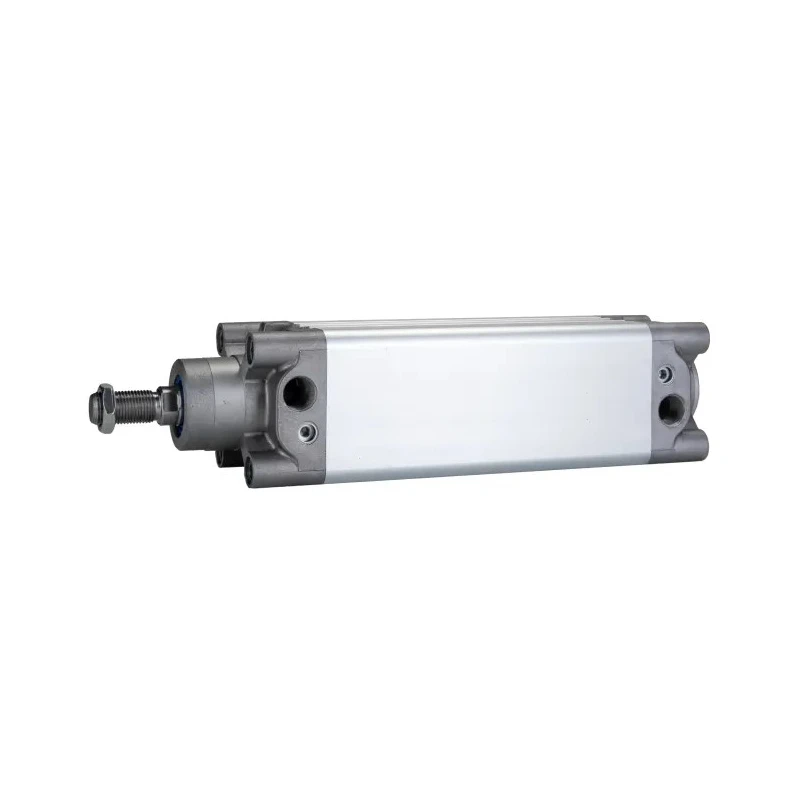

RS PRO Double Acting Pneumatic Cylinder 63mm Bore 160mm Stroke X Series Stainless Steel Body 176-1668
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | RS PRO |
| Body Material | Stainless Steel |
| Maximum Operating Pressure | 10 bar |
| Height | 74mm |
| Length | 318mm |
| Model | 176-1668 |
| Width | 74mm |
| Mount Type | Both Ends Tapped |
| Series | X |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | 0°C |
| Stroke Length | 160mm |
| Bore Diameter | 63mm |
| Rod Type | Double |
| Action Type | Double Acting |
| Standards/Approvals | RS PRO Seal of Approval |
| Cushioning Type | Cushioned |
| Piston Rod Gender | Female |
| Piston Rod Thread Standard | Metric |
| Piston Rod Thread Size | M16 |
Key Features
- This double acting cylinder utilizes compressed air to move the piston in both directions for controlled mechanical motion.
- The stainless steel body provides corrosion resistance for long-lasting performance in harsh environments.
- Integrated cushioning reduces impact and noise at the end of the stroke, enhancing lifespan and operational smoothness.
- Equipped with an integrated magnet for external magnetic sensor feedback to detect piston position accurately.
- Mount type includes both ends tapped for versatile installation options.
- Designed to operate under maximum pressure of 10 bar within a temperature range of 0°C to 80°C.
- Features a female piston rod with M16 metric thread size and double rod type for robust mechanical connection.
- Compliant with RS PRO Seal of Approval ensuring quality and reliability.
Product Description
RS PRO 176-1668 is a high-quality double acting pneumatic cylinder offering a 63mm bore diameter and 160mm stroke length, part of the X Series designed for industrial automation applications requiring precise control and durability. This actuator converts compressed air to smooth mechanical motion with piston movement in both directions, enabling efficient and reliable operation.
The cylinder features a robust stainless steel body, providing excellent corrosion resistance suitable for demanding industrial, manufacturing, assembly line, and robotics applications. Its built-in cushioning mechanism minimizes impact and noise at stroke ends, prolonging service life and ensuring quieter operation.
The integrated magnet in the actuator allows for external magnetic sensors to detect piston position, providing accurate feedback and enhancing system control. With double rod type design and a female piston rod threaded with M16 metric standard, it ensures secure mechanical connections compliant with ISO standards.
Mounting options include both ends tapped to support versatile installation setups. The actuator is rated for a maximum operating pressure of 10 bar and can safely operate within temperatures ranging from 0°C to 80°C, making it adaptable across various industrial environments.
RS PRO quality assurance is affirmed with the RS PRO Seal of Approval, underscoring reliable performance and longevity. This pneumatic cylinder is ideal for industrial automation, fluid power systems, and pneumatic actuator applications demanding precision, repeatability, and robust construction.
Double acting cylinder with bi-directional piston movement. Stainless steel body for enhanced corrosion resistance. Integrated cushioning for reduced impact and noise. Magnet for piston position sensing. Both ends tapped mount type for flexible installation.
Rated for 10 bar maximum operating pressure. Operating temperature range from 0°C to 80°C. Female piston rod with M16 metric thread size. RS PRO Seal of Approval certifies product quality. Explore the RS PRO product range for pneumatic actuators and cylinders, engineered to meet rigorous industrial and automation requirements with dependable performance.
Explore more products in our Pneumatic Cylinders category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure for this pneumatic cylinder is 10 bar.
This model has a height of 74mm, a width of 74mm, and a length of 318mm.
The stroke length of this double acting cylinder is 160mm.
The bore diameter of this pneumatic actuator is 63mm.
The cylinder features a stainless steel body, providing corrosion resistance suitable for harsh environments.
It can operate within a temperature range of 0°C to 80°C.
The model is equipped with an integrated magnet for external magnetic sensor feedback to accurately detect piston position.
This cylinder features integrated cushioning to reduce impact and noise at the end of the stroke.
The piston rod has a female thread size of M16 metric standard.
The cylinder has both ends tapped for versatile installation options.
It is compliant with the RS PRO Seal of Approval, ensuring quality and reliability.
This model is designed for industrial automation applications requiring precise control and durability.
