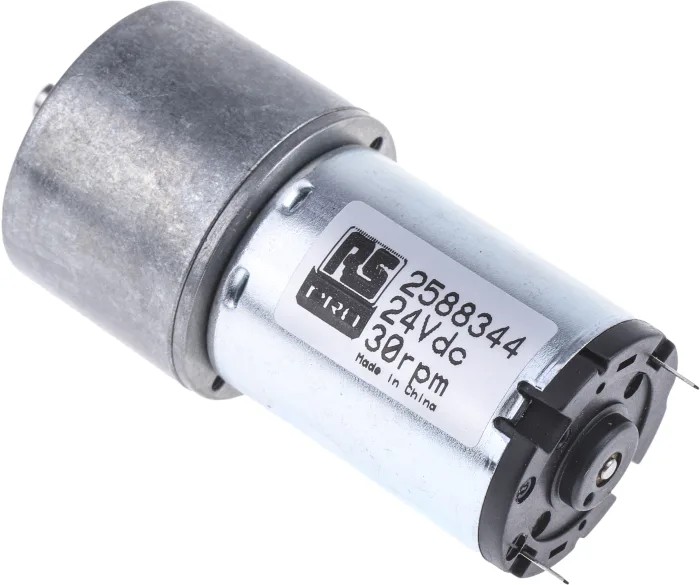

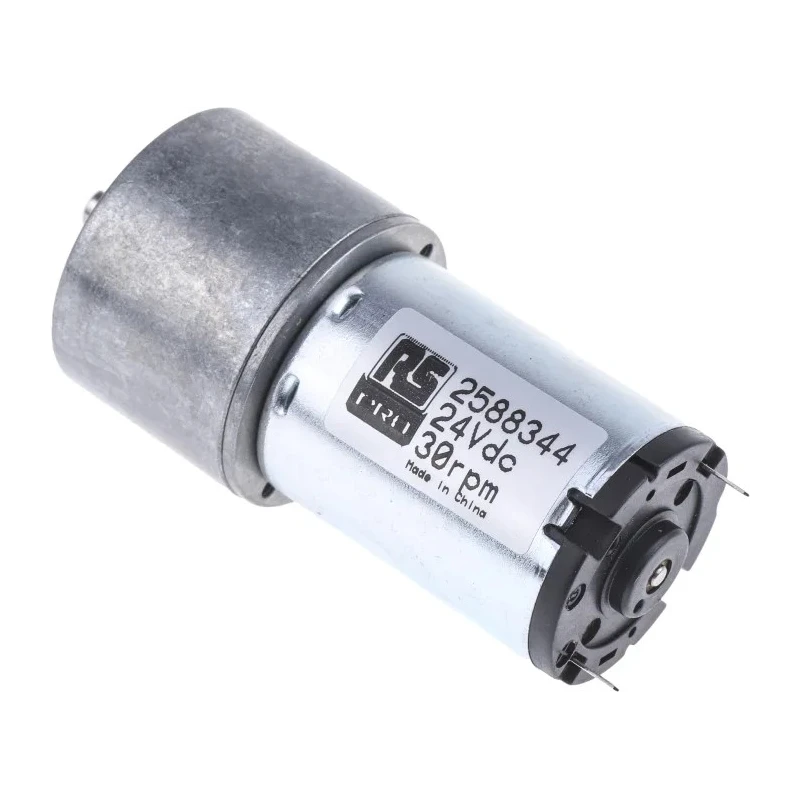

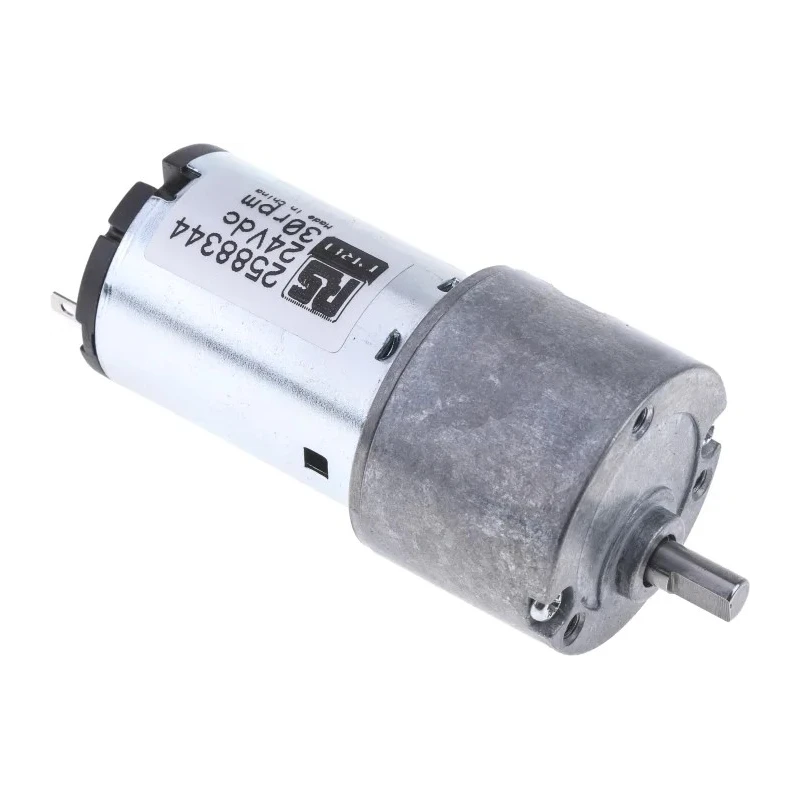

RS PRO 24V DC Geared Motor 22kW, 30rpm, 30Ncm Torque, Spur Gearhead, 5mm Shaft Diameter 258-8344

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 24V DC Geared Motor 22kW, 30rpm, 30Ncm Torque, Spur Gearhead, 5mm Shaft Diameter 258-8344

Name: RS PRO 24V DC Geared Motor 22kW, 30rpm, 30Ncm Torque, Spur Gearhead, 5mm Shaft Diameter 258-8344
Brand: RS PRO
SKU: 179855
Price: 65.4 USD
Availability: InStock



Category Gear Motors Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Material	Steel
Length	62.3mm
Model	258-8344
Depth	11.6mm
Width	27.7mm
Mount Type	Screw
Current Rating	30mA
Power Rating	22kW
Sub Type	Geared
Output Speed	30rpm
Shaft Diameter	5mm
Shaft Length	9.5mm
Supply Voltage	24V dc
Gear ratio	125:1
Standards/Approvals	RoHS
Maximum Output Torque	30Ncm
Gearhead Type	Spur
Core Construction	Iron Core
125	1
Gear Ratio 125	1

Key Features

This geared motor features a spur gearhead ensuring high torque transmission efficiency.
Constructed with steel material and iron core for durability and strength.
Compact dimensions include 62.3mm length and 27.7mm width, ideal for space-constrained installations.
Equipped with a 5 mm diameter shaft and 9.5 mm shaft length for reliable mechanical coupling.
Incorporates a five-pole armature with VDR suppression for reduced electrical noise and improved reliability.
Sintered bronze bearings increase gearbox durability and operational life.
Mount type is screw-based, facilitating secure and stable installation.
Rated current is 30 mA, optimized for low voltage applications.

Product Description

RS PRO 258-8344 DC Geared Motor is a high-quality 22 kW brushed DC motor operating at 24V DC with a 30rpm output speed and 30 Ncm torque, designed for low speed applications requiring high starting torque.

The motor utilizes a robust five-pole armature with VDR suppression, and is coupled with an all-metal spur gearhead using sintered iron gears running on hardened steel shafts, resulting in efficient torque transfer and durability.

The output shaft runs on sintered bronze bearings, enhancing gearbox life and load capacity. The compact form factor, including a 5 mm diameter shaft and 9.5 mm shaft length, allows versatile integration in various machines.

This geared motor is ideal for a range of industrial and commercial applications such as vending machines, magnetic card readers, printer mechanisms, actuators, and all types of coin control systems, providing reliable and precise motion control.

Constructed from steel with an iron core, it offers durability while maintaining a compact size with length 62.3mm, width 27.7mm, and depth 11.6mm. The screw mount ensures stable mounting operations.

This motor features a durable spur gearhead for effective torque delivery. Its brushed design allows direct DC power supply wiring without complex drives. The 30 mA current rating supports energy-efficient performance. RoHS certification guarantees adherence to environmental standards.

Robust build quality extends operational lifespan in manufacturing and automation environments.

RS PRO products are known for comprehensive manufacturing excellence and reliability, making this geared DC motor a preferred choice for varied industrial applications. Explore EnvMart for a wide selection of motors and related components.
