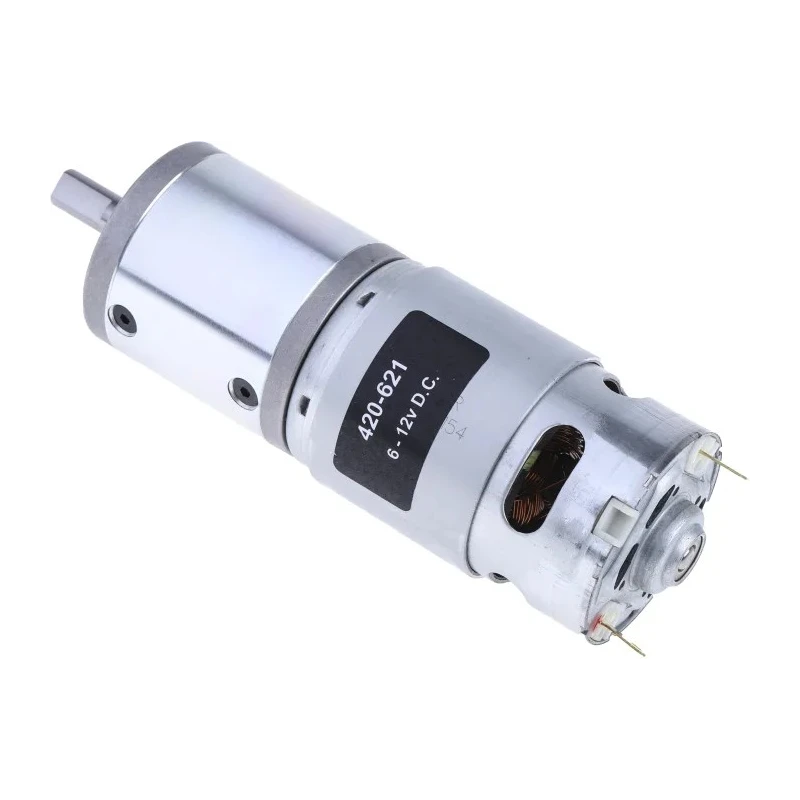

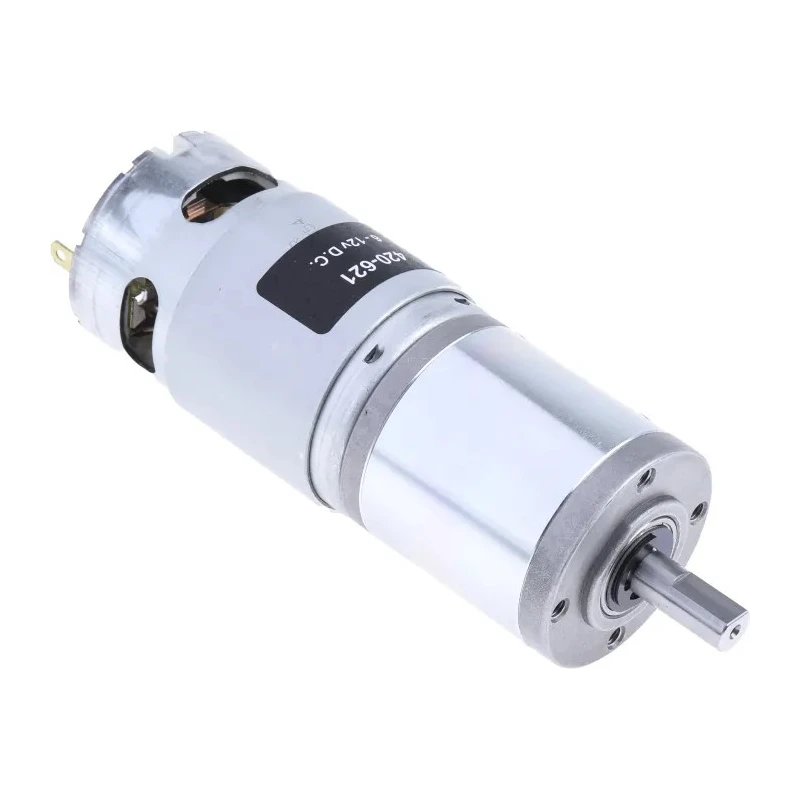

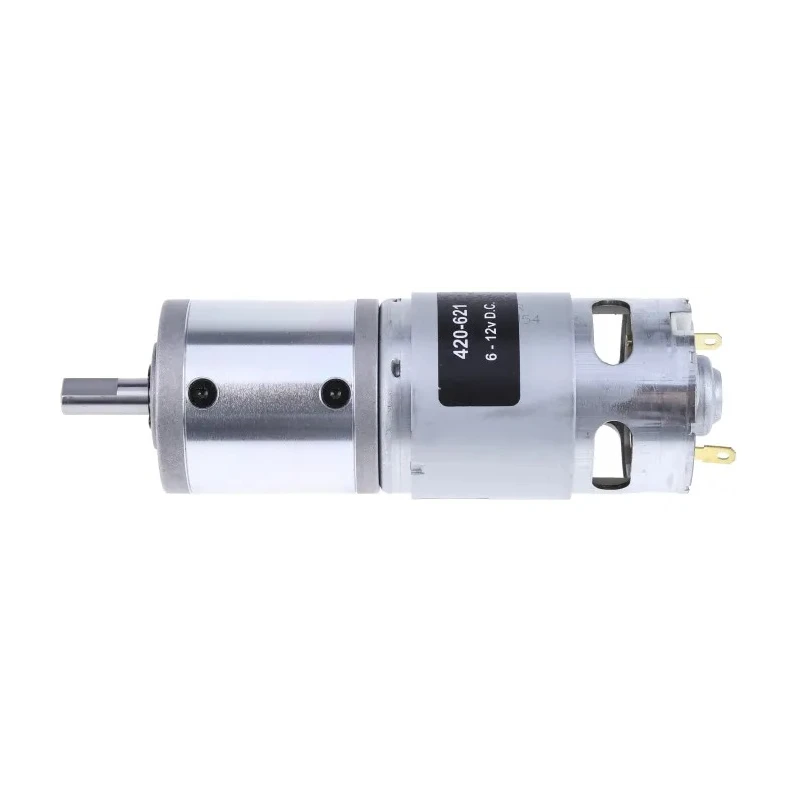

RS PRO Brushed Geared DC Motor 41.3W, 12V DC, 2Nm, 67rpm, 8mm Shaft, Planetary Gearhead 420-621
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Material | Metal |
| Length | 111.9mm |
| Model | 420-621 |
| Depth | 44.6mm |
| Width | 44.6mm |
| Mount Type | Screw |
| Current Rating | 5.5A |
| Series | 975D |
| Power Rating | 41.3W |
| Sub Type | Brushed Geared |
| Output Speed | 67rpm |
| Shaft Diameter | 8mm |
| Shaft Length | 20mm |
| Supply Voltage | 12V dc |
| Bearings | Sintered bronze |
| Gear ratio | 104:1 |
| Standards/Approvals | RoHS |
| Maximum Output Torque | 2Nm |
| Gearhead Type | Planetary |
| Core Construction | Iron Core |
| Gear Ratio104 | 1 |
| 104 | 1 |
Key Features
- Features a robust planetary gearhead for improved torque transfer.
- Rated power of 41.3 W and a 12 V DC supply voltage.
- Delivers a maximum output torque of 2 Nm at 67 rpm output speed.
- Comes with an 8 mm diameter, 20 mm long metal shaft for secure coupling.
- Utilizes sintered bronze bearings ensuring high efficiency and extended durability.
- 5.5 A current rating supports demanding industrial and automation uses.
- Ideal for applications such as prototyping, robotics, water pumps, camera systems, and fans.
- Complies with RoHS standards for restricted substances.
Product Description
The RS PRO 420-621 Brushed Geared DC Motor is designed for industrial-grade, low-voltage applications where high starting torque and precise speed control are required. With its planetary gearhead architecture, this 42 mm motor delivers a maximum output torque of 2 Nm at an output speed of 67 rpm, making it especially suitable for demanding applications across industrial automation, laboratory setups, prototypes, robotics, water pumps, and camera positioning systems.
This DC motor operates on 12 V DC and is rated at 41.3 W, ensuring both efficiency and reliability in continuous use. The planetary gear system multiplies torque and stabilizes the output speed, while the sintered bronze bearings reduce friction, extend service life, and guarantee smooth rotational motion under load. The 8 mm diameter shaft, 20 mm long, provides a sturdy coupling interface for gears, pulleys, or direct connection to mechanical assemblies.
Built with an iron core and robust metal housing, the RS PRO 420-621 offers durability for both hobbyist and industrial environments, including manufacturing, automation, and laboratory apparatus requiring precise actuation. Its compact dimensions - 111.9 mm in length, 44.6 mm width and depth - allow easy integration into a wide variety of machinery and frame designs, while screw-type mounting provides secure installation.
The 104:1 gear ratio ensures substantial speed reduction and significant increase in torque, making the motor capable of driving heavy loads at controlled speeds. The 5.5 A current rating ensures compatibility with most low-voltage power supplies tailored for DC automation equipment. This motor is RoHS-compliant, guaranteeing adherence to environmental and safety standards.
Whether used in prototype development, water movement systems, robotics, automated conveyors, or custom industrial automation, the RS PRO 420-621 delivers consistent performance and long-term reliability, backed by RS PRO's quality assurance. Typical application sectors include industrial automation, laboratory automation, HVAC actuation, robotic drive systems, and custom automation equipment.
For more options in gear motors and industrial automation components, explore the RS PRO product range in the Gear Motors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this DC motor is 41.3 W.
It can deliver a maximum output torque of 2 Nm.
The output speed is 67 rpm.
This motor operates on a supply voltage of 12 V DC.
It features a planetary gearhead.
The current rating is 5.5 A.
The motor has a length of 111.9 mm, a width of 44.6 mm, and a depth of 44.6 mm.
It utilizes sintered bronze bearings.
The shaft is 20 mm long and has a diameter of 8 mm.
The gear ratio is 104:1.
Yes, it complies with RoHS standards for restricted substances.
This motor is suitable for applications such as prototyping, robotics, water pumps, camera systems, and fans.
