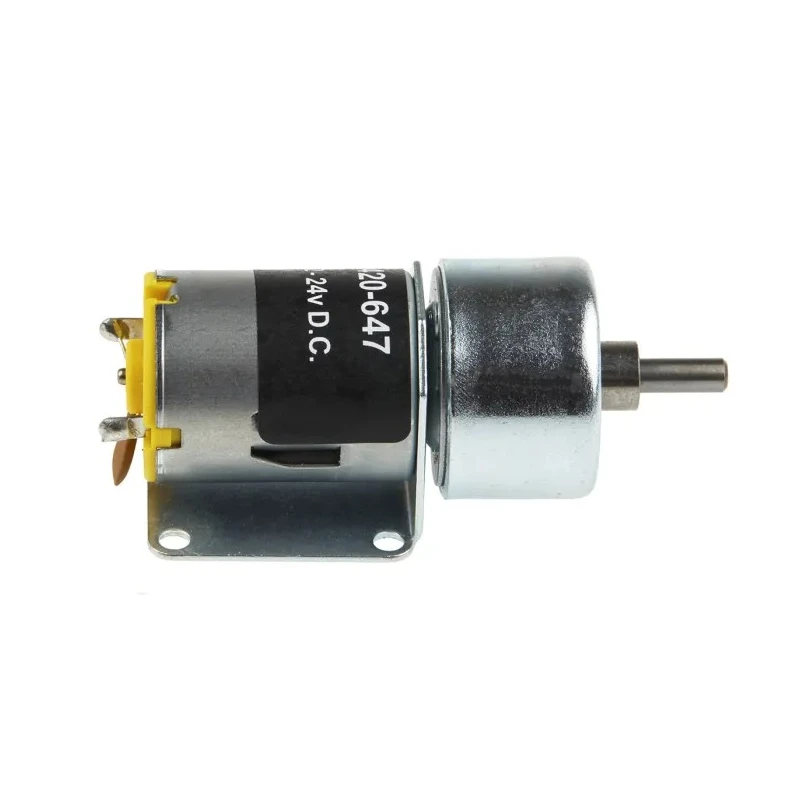

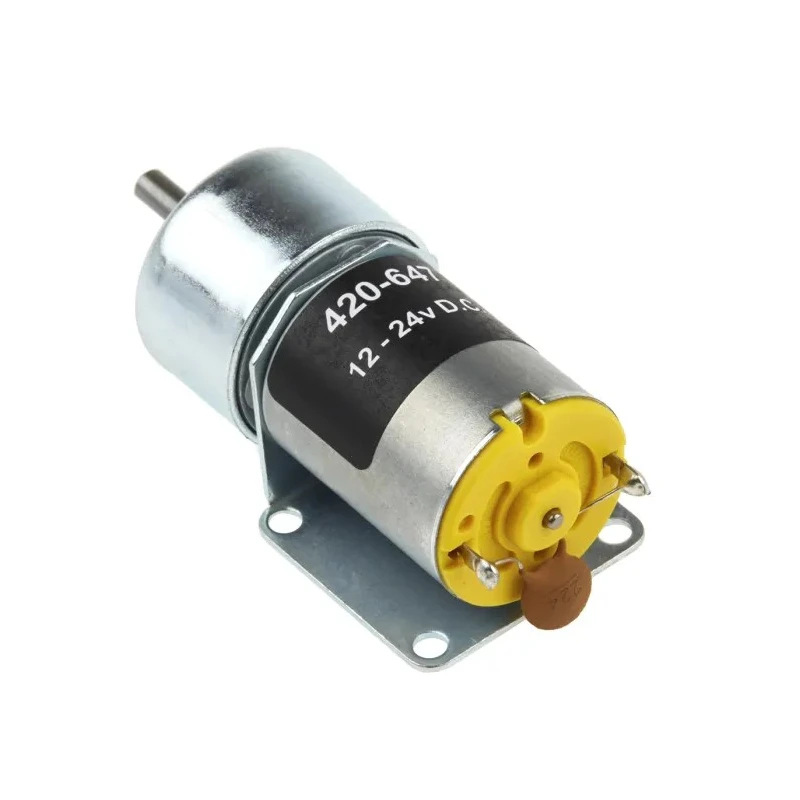

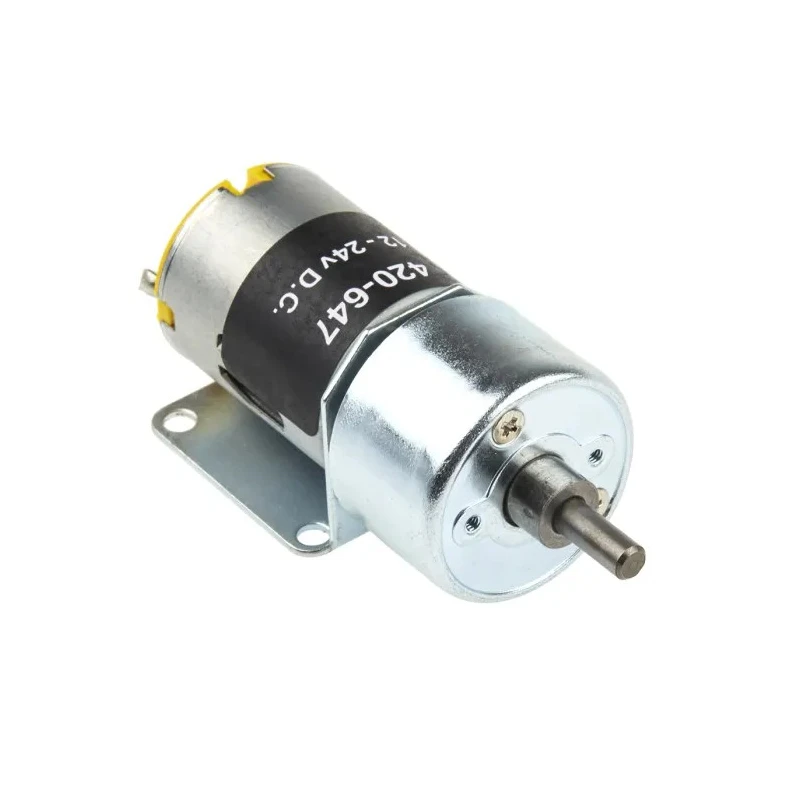

RS Pro Brushed Geared DC Motor 1.31W 12V DC 15Ncm 8rpm 6mm Shaft Spur Gear 420-647

RS Pro 420-647 Brushed Geared DC Motor is a high-quality, low-speed, high-torque motor designed for demanding automation tasks and hobbyist applications. The motor features a 1.31 W power rating and operates at 12V DC, making it suitable for a range of industrial and electronic setups where reliable, compact drive solutions are needed.

Built with robust steel and brass materials, this DC motor incorporates a spur gearbox arrangement with bronze output bearings. These elements facilitate high torque transfer, smooth motion, and enhanced durability, suitable for continuous operation in model making and light industrial uses. The five-pole brushed configuration ensures optimal torque at low speeds, while the iron core construction improves magnetic efficiency.

This motor's technical specifications include a maximum output torque of 15 Ncm and an output speed of 8 rpm, allowing for precision motion control across robotics, camera systems, and adjustment devices. The 6 mm shaft diameter and 10 mm shaft length are compatible with a wide range of couplings and fixtures, enabling easy integration. Screw mounting and a compact dimension set (51 mm length, 30 mm depth, 27 mm width) simplify enclosure or panel integration.

Featuring sintered bronze bearings and brass gears, the gearhead is optimized for longevity and minimal maintenance. The gear ratio of 1024:1 ensures that even at low voltage and power, the motor delivers sufficient torque to drive actuators and adjusters in automation projects.

Electrical performance is characterized by a current rating of 190 mA, making this motor suitable for low-voltage circuits, battery-powered mechanisms, and embedded controls. The brushed geared design allows for straightforward wiring without the need for complex drives or encoders.

Typical applications include power tools, water pumps, camera tracking systems, robotics, and adjustment mechanisms in laboratory and manufacturing environments. The RS Pro DC geared motor meets relevant ANSI/ESD and BS EN electrical standards, and is constructed for reliability and versatility in demanding use cases.

Industries served include Industrial Automation, Laboratory Equipment, Robotics, Water Treatment, Commercial Automation, and Model Engineering. Browse more gear motors and automation solutions in the Gear Motors category and RS Pro brand range at EnvMart.
