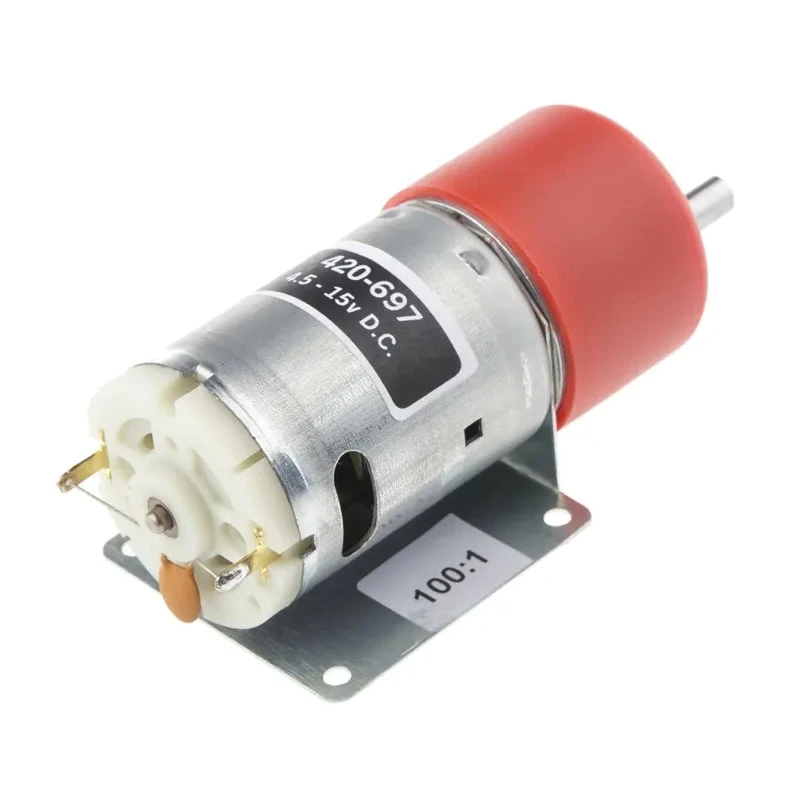

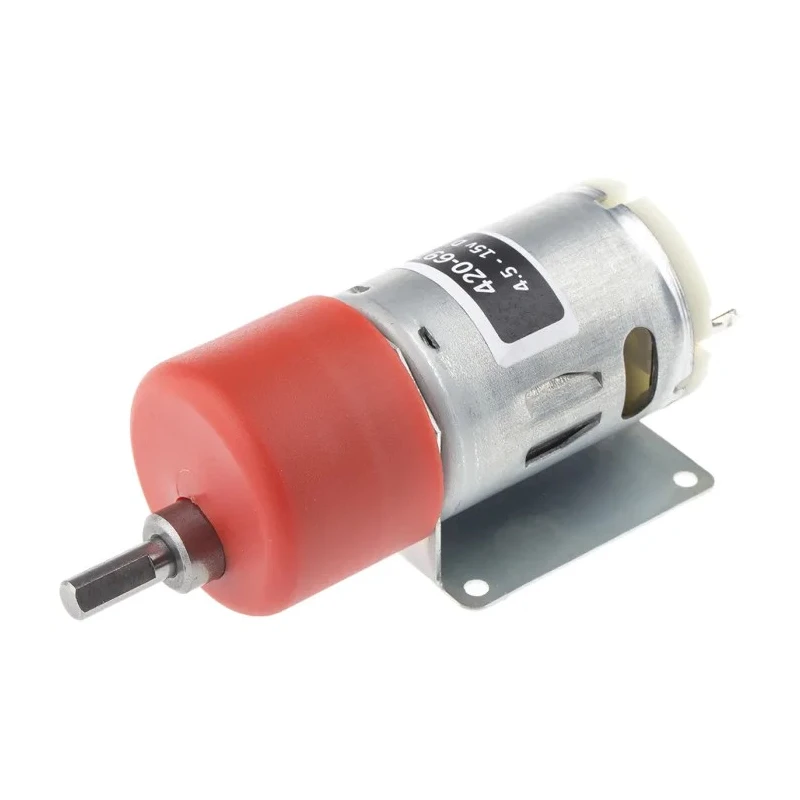

RS PRO Brushed Geared DC Motor 19.8W, 15V/4.5V DC, 59 Ncm, 143 RPM, 6mm Shaft, Metal Spur Gearhead 420-697
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Material | Metal |
| Length | 78mm |
| Model | 420-697 |
| Depth | 35mm |
| Width | 39mm |
| Mount Type | Screw |
| Current Rating | 2.81A |
| Series | 919D |
| Power Rating | 19.8W |
| Sub Type | Brushed Geared |
| Output Speed | 143rpm |
| Shaft Diameter | 6mm |
| Shaft Length | 15mm |
| Supply Voltage | 15, 4.5V dc |
| Gear ratio | 100:1 |
| Standards/Approvals | RoHS |
| Maximum Output Torque | 59Ncm |
| Gearhead Type | Spur |
| Core Construction | Iron Core |
| Gear Ratio100 | 1 |
| 100 | 1 |
Key Features
- Provides up to 59 Ncm maximum output torque, supporting demanding load requirements in industrial models.
- Equipped with a high-efficiency brushed DC motor and iron core construction for long-term durability.
- Shaft and gears constructed from steel and brass, offering enhanced mechanical reliability.
- Incorporates a 2.81A current rating and operates with a screw mount for effortless integration.
- 143 rpm output makes it ideal for light industrial, laboratory, and automation systems.
- Compact dimensions (78 mm length, 39 mm width, 35 mm depth) for easy integration into limited-space applications.
- Spur gear design and precision sleeved bearings minimize backlash and ensure smooth operation.
Product Description
The RS PRO 420-697 Brushed Geared DC Motor is a precision-engineered miniature motor designed for high-reliability performance in model making, automation, and light industrial applications. Delivering 19.8 watts of power with the flexibility to operate at both 15V and 4.5V DC, this motor provides efficient, controlled motion in compact assemblies where precision and stability are critical.
Constructed with a durable spur gearhead featuring a 100:1 gear ratio, it ensures accurate, smooth reduction suited to demanding mechanical tasks. The gear system is fabricated from steel and brass, with brass gears and a 1 mm thickness steel bracket, supporting long-term reliability even in continuous duty applications. The robust steel 6 mm diameter output shaft and 15 mm shaft length enable secure coupling to a wide variety of mechanical loads.
Equipped with a high-quality three-pole brushed DC motor utilizing an iron core, the 420-697 series ensures smooth and efficient rotation paired with a maximum output torque of 59 Ncm. A current rating of 2.81A allows for substantial load capacity.
The motor is mounted with a screw configuration for secure and universal fitment. Its engineering includes precision sleeved bearings and a no-load backlash of only 2°, contributing to repeatable movement and minimal mechanical play. This makes it highly suitable for use in laboratory automation, conveyor modules, robotic actuation, or specialty industrial machinery where accurate positioning and reliable endurance are required.
Engineered to RoHS standards and manufactured in Taiwan, this model demonstrates RS PRO’s commitment to rigorous quality for electrical and mechanical integration. Typical use cases include automated gates, model robotics, instrumentation, test fixtures, and light-duty conveyance systems, among many others.
Discover more high-performance Gear Motors and industrial automation solutions by exploring the complete RS PRO and DC Motor categories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output torque of this model is 59 Ncm, making it suitable for demanding load requirements in industrial applications.
It operates at both 15V and 4.5V DC, providing flexibility for various applications.
This motor has a current rating of 2.81A, allowing it to handle substantial load capacities.
The output speed is 143 RPM, which is suitable for light industrial and automation systems.
It features a spur gearhead with a gear ratio of 100:1, ensuring smooth reduction for mechanical tasks.
The motor has compact dimensions of 78 mm in length, 39 mm in width, and 35 mm in depth, facilitating easy integration into limited spaces.
It is designed with a screw mount type for secure and universal fitment in various applications.
The motor is constructed with metal components, including steel and brass for the shaft and gears, enhancing mechanical reliability.
The output shaft has a diameter of 6 mm and a length of 15 mm, enabling secure coupling to mechanical loads.
This model is engineered to RoHS standards, ensuring compliance with environmental regulations.
Typical applications include automated gates, model robotics, instrumentation, test fixtures, and light-duty conveyance systems.
