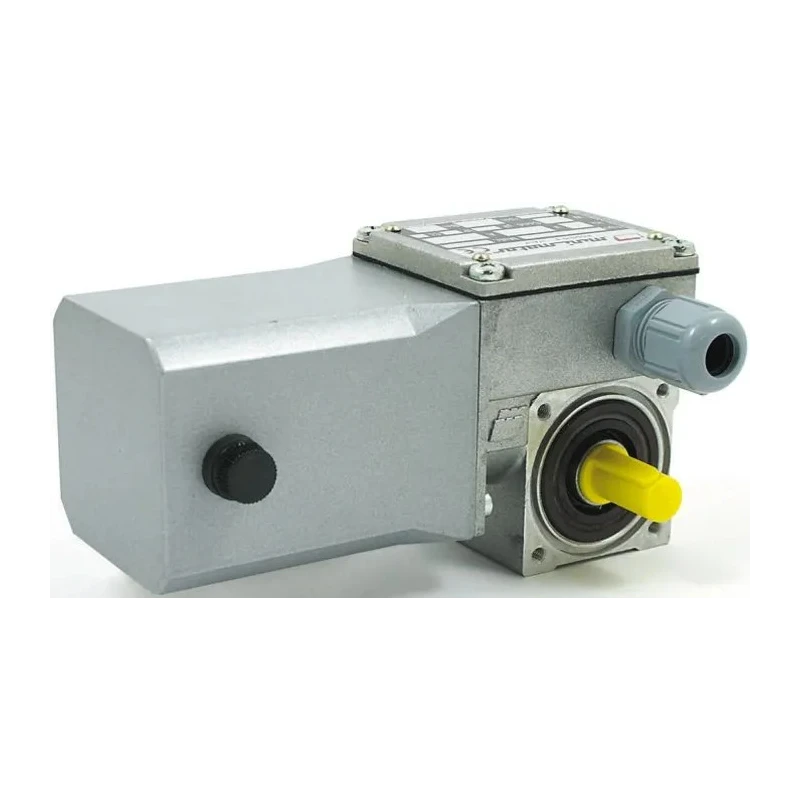

Mini Motor Brushed Geared DC Geared Motor 24V dc 37W 280rpm 1.11Nm Shaft 9mm BC 2000 24MP 10 B3

Mini Motor BC 2000 24MP 10 B3 is a brushed DC geared motor designed for industrial applications requiring precise speed and high torque. Operating at 24V DC with a power rating of 37W, it delivers an output speed of 280rpm and maximum output torque of 1.11Nm, making it suitable for automation, robotics, and control gear purposes.

The motor incorporates a worm gearhead type, providing efficient torque transmission and smooth operation. It features premium materials including Caro Bronze for the ring, die cast aluminium for the case, and hardened steel for the shaft, ensuring longevity and durability under demanding conditions.

With a shaft diameter of 9mm and length of 13mm, the motor shaft is manufactured to a high tolerance (h6 standard), enabling precise coupling and stable performance. Its compact size with dimensions 139.5mm (length) x 77.5mm (width) x 55.5mm (depth) allows easy integration into tight spaces.

This motor meets the CEI EN 60529 standard with an IP65 rating, guaranteeing protection against dust ingress and low-pressure water jets. The iron core construction improves magnetic efficiency and thermal stability, while the B3 foot mount supports secure installation in various orientations.

Rated at 2.5A current, this motor is suitable for electrical automation, manufacturing machinery, HVAC systems, and other industrial uses demanding reliable geared motors. It complies with VDE0530 standards for Class F winding insulation, ensuring safe and long-lasting performance.

Built with worm gearhead type for high torque applications. Constructed using Caro Bronze ring, die cast aluminium case, and hardened steel shaft for durability. Features a 9mm shaft diameter with 13mm shaft length and precision h6 tolerance.

Compact dimensions of 139.5mm length, 77.5mm width, and 55.5mm depth. Complies with CEI EN 60529 IP65 insulation standard for dust and water resistance. Foot mount B3 standard for secure installation. Designed with iron core for electrical efficiency.

Current rating of 2.5A ensures efficient operation. Manufactured in Italy delivering quality assurance.

This product is ideal for industrial, automation, robotics, HVAC, and manufacturing applications where precision and durability are critical. Explore the full range of DC Geared Motors and industrial motor solutions at EnvMart.
