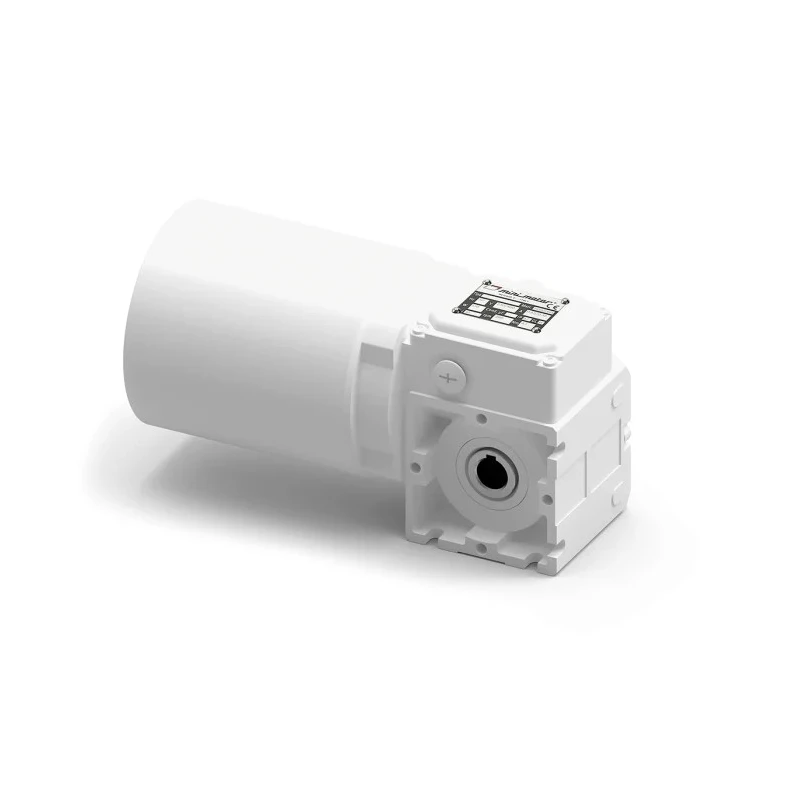

Mini Motor AC Worm Geared Motor 290W 2-Pole 400V IP67 Steel Aluminium XCF5T2-20-B5

Mini Motor XCF5T2-20-B5 is a robust AC worm geared motor designed for industrial automation and control applications, delivering 290 watts of power with a 2-pole asynchronous configuration running on a 400V supply voltage.

This motor features a worm gear unit built with a die-cast aluminium casing, ensuring lightweight durability paired with the strength of steel and aluminium materials. The worm gear utilizes a hardened steel thread mounted on ball and roller bearings with special long-lasting oil lubrication to ensure smooth and reliable operation.

Its protective white epoxy coating and IP67 rating as per IEC/EN 60529 standards make the motor resistant to dust and water ingress, suitable for harsh industrial environments.

The output speed is set at 140rpm, optimized with a gear ratio of 20:1, providing a maximum torque of 15.3Nm, making it ideal for applications requiring precise torque and speed control.

Featuring stainless steel output shaft and sealing rings rated for high temperature, this geared motor is designed to provide minimal dirt trap points and maintain high performance with low maintenance.

Bearing assemblies consist of roller and ball types to extend service life, while the special bronze wheel rim hardness of 120/160 HB enhances durability.

Compliant with RoHS, this motor supports environmental safety. It is suited for a wide range of uses including automation, manufacturing processes, HVAC systems, and laboratory equipment requiring precise motion control.

Set contains the Mini Motor XCF worm AC geared motor model XCF5T2-20-B5, designed for professional industrial installations requiring high reliability and efficiency. Explore more AC Geared Motors and electric motors at EnvMart to meet your specific industrial requirements.

Equipped with a worm gear type delivering a gear ratio of 20:1 for precise torque transmission. Features IP67 rated protection ensuring durability in harsh environments. Constructed with steel and aluminium materials for strength and corrosion resistance.

Output speed is 140rpm, suitable for various automation tasks requiring controlled speed. Incorporates roller and ball bearings to enhance operational reliability and lifespan. Compact dimensions with length 291mm, width 96mm, and depth 151mm for versatile installation.

Maximum output torque of 15.3Nm supports demanding load conditions. Compliance with IEC/EN 60529 and RoHS standards guarantees safety and environmental friendliness. Manufactured in Italy, emphasizing quality craftsmanship and engineering standards.
