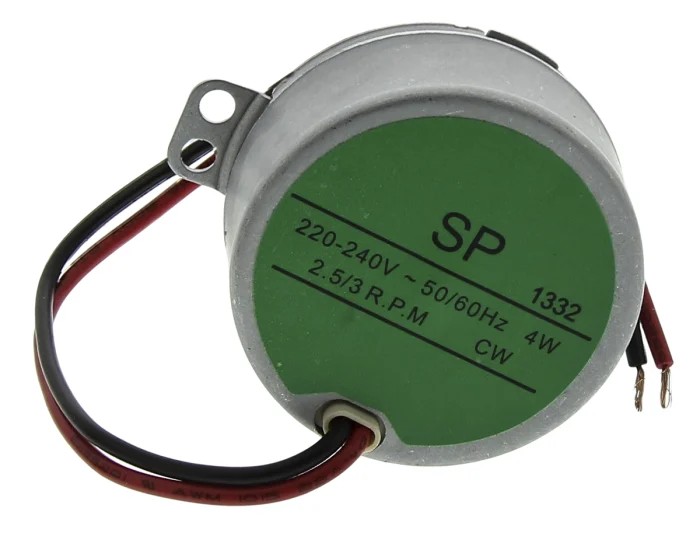

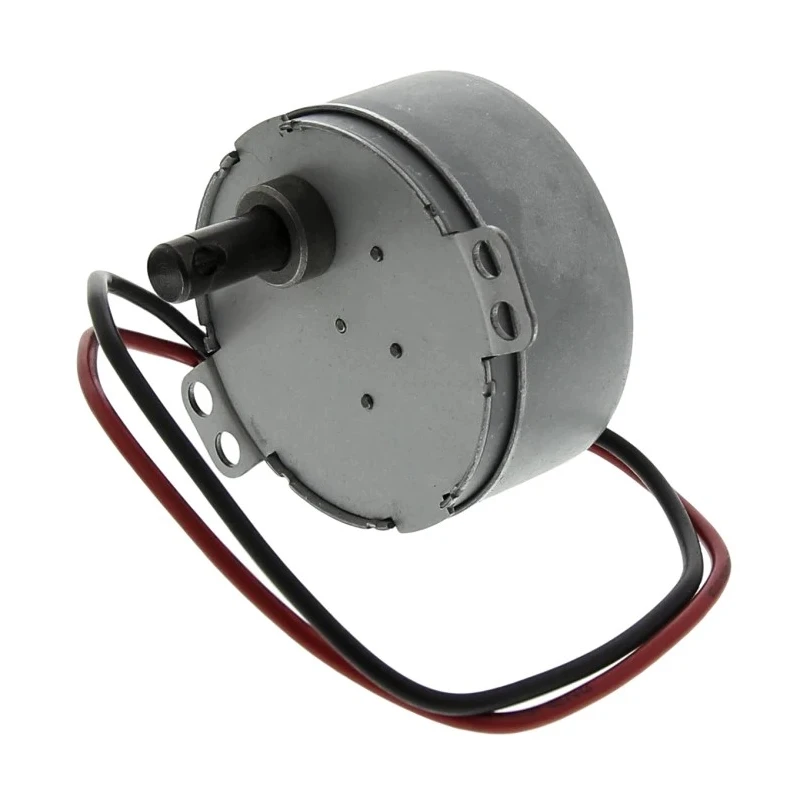

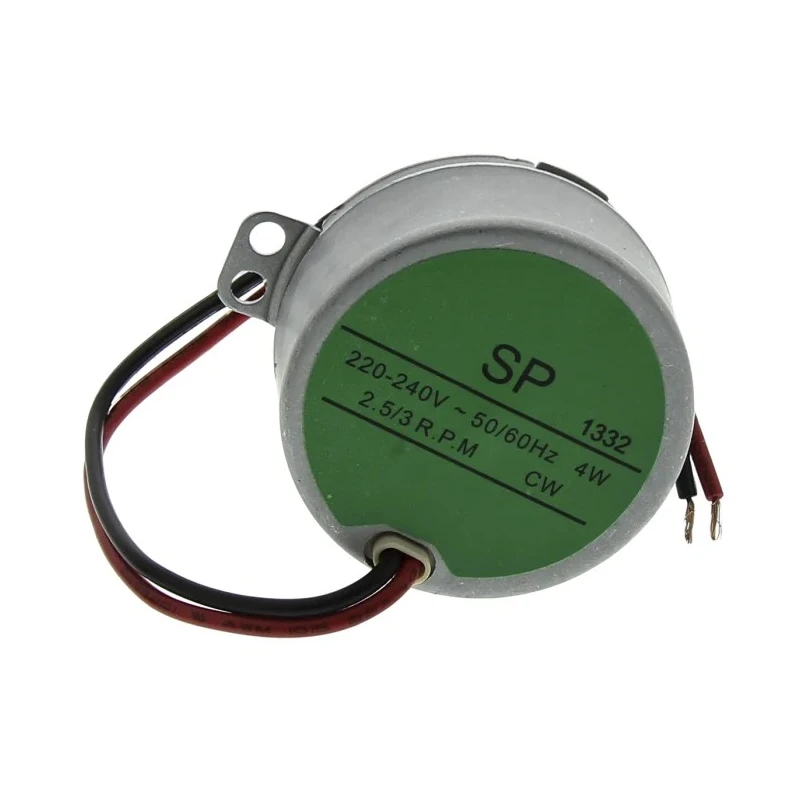

RS PRO Clockwise AC Geared Motor, 4 W, 1 Phase, 220V, 240 V, Panel Mounting 779-3734

RS PRO 779-3734 is a clockwise AC geared motor with a power rating of 4 W, operating on a single-phase 220 to 240 V supply. It features synchronous gearing technology and panel mounting for secure installation.

This geared motor is manufactured with quality steel materials providing excellent durability and reliability in varied industrial environments. Its low output speed of 3 rpm allows precise mechanical control for applications in automation and electrical equipment.

The motor's shaft has a diameter of 7 mm and length of 19 mm, suitable for interfacing with various couplings and mechanical parts. Compact dimensions of 50 mm length, 24.5 mm width, and 24.5 mm depth enable it to fit within tight assembly constraints.

With a current rating of 17 mA, this motor is energy-efficient and suitable for continuous use in office equipment such as photocopiers, fax machines, printers, scanners, and dialysis machines. It also finds uses in pumps, money counters, door openers, conveyer systems, cameras, moving lights, and industrial integrated circuit makers.

The RS PRO 779-3734 geared motor complies with RoHS environmental standards, ensuring safe and eco-friendly operation. Its clockwise rotation matches industry prevalence for many controlled mechanical movements.

The motor delivers 4 watts of power with synchronous gearing for precise output speed. Operates at a single phase supply voltage of 220 to 240 volts for versatile electrical compatibility. Output speed is low, at 3 rpm, suitable for controlled mechanical movement.

Mounting type is panel, allowing secure and adaptable installation in machinery. Constructed with steel shaft and components for durability and long operating life. Shaft diameter is 7 mm, with a length of 19 mm, optimized for standard couplings.

Compact dimensions provide a depth of 24.5 mm, width of 24.5 mm, and length of 50 mm to fit confined spaces. Rated current draw is low at 17 mA, contributing to energy efficiency. The motor rotates clockwise, compatible with many industrial applications requiring this direction.

Compliance with RoHS standards ensures reduced environmental impact and material safety.

This RS PRO AC Geared Motor is ideal for industrial, laboratory, office automation, manufacturing, and water treatment applications where precise low-speed rotary motion is required. Explore the range of RS PRO motors to find suitable solutions for your automation and control gear needs.
