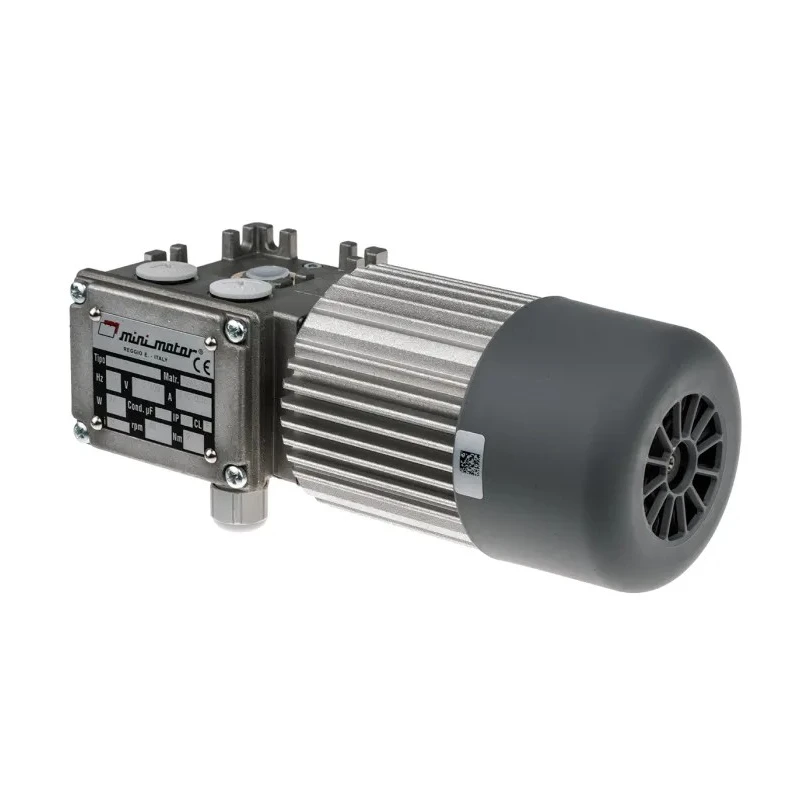

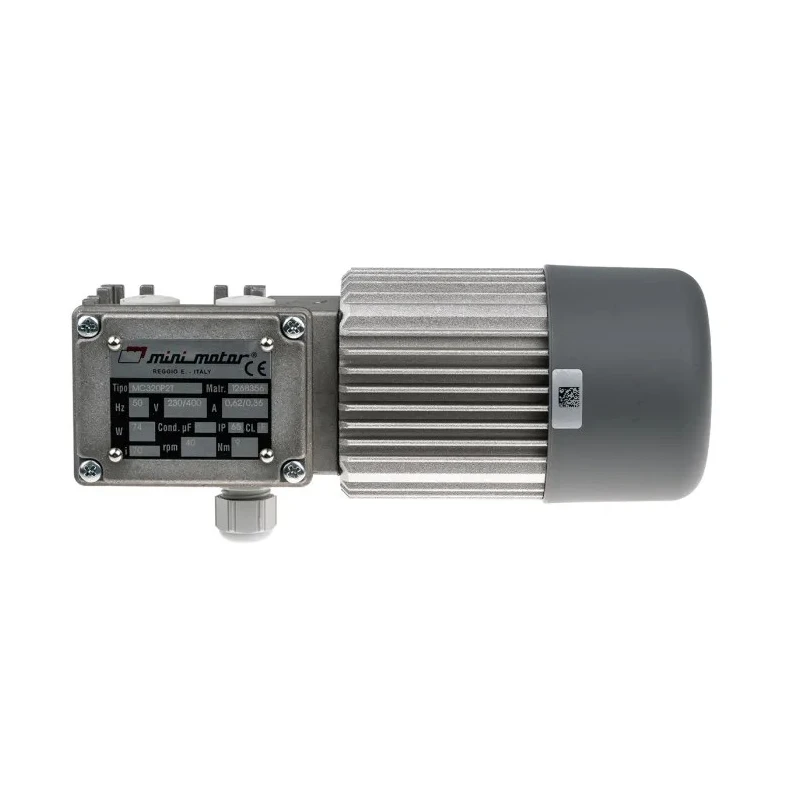

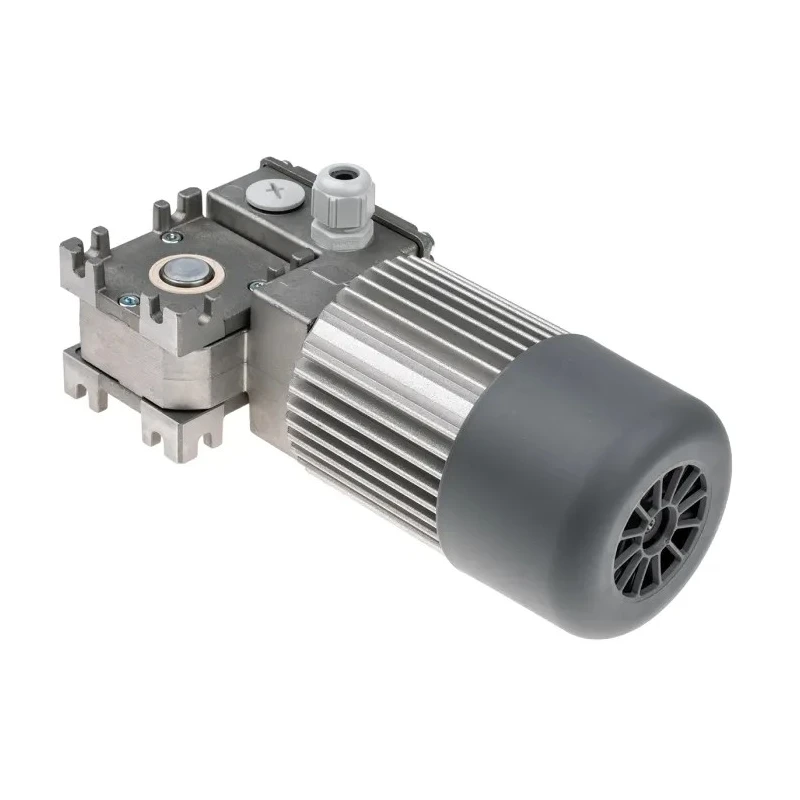

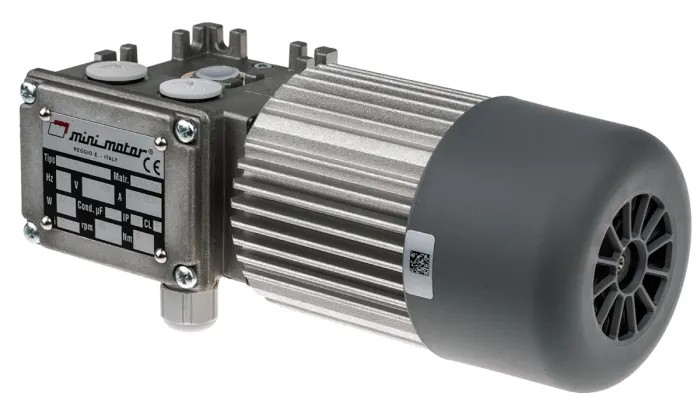

Mini Motor MC Reversible Worm AC Geared Motor 74 W, 3 Phase, 24-Pole, 230V/400V, Aluminium Shaft, Flange and MC 320P2T 70 B3
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Mini Motor |
| Material | Aluminium |
| Length | 213mm |
| Model | MC 320P2T 70 B3 |
| Depth | 58mm |
| Width | 99mm |
| Mount Type | Flange, Foot |
| Rotation | Reversible |
| Current Rating | 360mA |
| Series | MC |
| Power Rating | 74W |
| Sub Type | Induction Geared |
| Output Speed | 40rpm |
| Shaft Diameter | 12.5mm |
| Shaft Length | 94mm |
| Number of Phases | 3 |
| Supply Voltage | 230, 400V |
| Number of Poles | 24 |
| Standards/Approvals | RoHS |
| Maximum Output Torque | 9Nm |
| Gearhead Type | Worm |
Key Features
- Operates on three-phase 230 V / 400 V power supply.
- Features a 24-pole induction geared motor for low-speed, high-torque output.
- Provides a steady output speed of 40 rpm suitable for precision-driven tasks.
- Constructed with aluminium material ensuring lightweight and durability.
- Includes flange and foot mount types for versatile installation options.
- Shaft has a diameter of 12.5 mm and length of 94 mm for coupling compatibility.
- Compact dimensions with a length of 213 mm, width of 99 mm, and depth of 58 mm.
- Maximum output torque of 9 Nm to support demanding mechanical loads.
Product Description
Mini Motor MC 320P2T 70 B3 is a reversible worm AC geared motor designed for industrial automation, manufacturing, and control applications. It operates at a power rating of 74 W and is powered by a three-phase supply voltage of 230 V and 400 V, making it suitable for a variety of electrical systems.
This model features a 24-pole induction geared motor coupled with a worm gearhead, delivering a reliable output speed of 40 rpm with a maximum output torque of 9 Nm. The aluminium construction of the shaft and body provides a robust yet lightweight structure, facilitating ease of handling and installation.
Mounting options include both flange and foot types, allowing versatile fitting in machinery and control panels. The shaft diameter is 12.5 mm with a length of 94 mm, designed for secure coupling with mechanical components.
The dimensions of the motor are compact with a length of 213 mm, width of 99 mm, and depth of 58 mm, optimizing use in space-constrained environments. It supports reversible rotation to adapt to different operational requirements.
The motor has a current rating of 360 mA and complies with RoHS standards, ensuring compliance with environmental regulations for electronic components. Operates on 230 V and 400 V three-phase power. Equipped with a worm gearhead for efficient speed control.
Compact and lightweight aluminium body construction. Flange and foot mounting for flexible installation. Maximum output torque of 9 Nm for robust performance. Reversible operation for versatile application. RoHS compliant for environmental safety.
This AC Geared Motor is ideal for industrial machinery, automation systems, laboratory equipment, manufacturing processes, and HVAC applications requiring precise speed and torque control.
Explore the range of AC motors and geared motors to find complementary products compatible with the MC 320P2T 70 B3 model at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Mini Motor MC 320P2T 70 B3 has a power rating of 74 W.
It provides a steady output speed of 40 rpm, suitable for precision-driven tasks.
The maximum output torque of this motor is 9 Nm, supporting demanding mechanical loads.
This model operates on a three-phase supply voltage of 230 V or 400 V.
It features a worm gearhead, which allows for efficient speed control.
It includes both flange and foot mounting types, allowing for versatile installation.
The dimensions are 213 mm in length, 99 mm in width, and 58 mm in depth.
The shaft has a diameter of 12.5 mm and a length of 94 mm, designed for secure coupling.
Yes, this model supports reversible rotation, adapting to different operational requirements.
The current rating is 360 mA, suitable for its operational specifications.
It complies with RoHS standards, ensuring adherence to environmental regulations for electronic components.
The country of origin for this motor is Italy.
