Tempatron Synchronous Drive Motor 230V AC, 2.5VA, 500rpm for Electromechanical Cam Timers AM24

The Tempatron AM24 is a synchronous drive motor engineered for integration with electromechanical cam timers in automation, process control, and panel meter accessories. Designed for accurate timing and sequencing functions, this model delivers consistent rotational performance and is highly reliable for industrial applications.

Powered by a 230V AC supply, the motor operates at 2.5VA power consumption, making it efficient for continuous use in control panels. Its synchronous design ensures stable speed regulation, particularly important in automation and control gear.

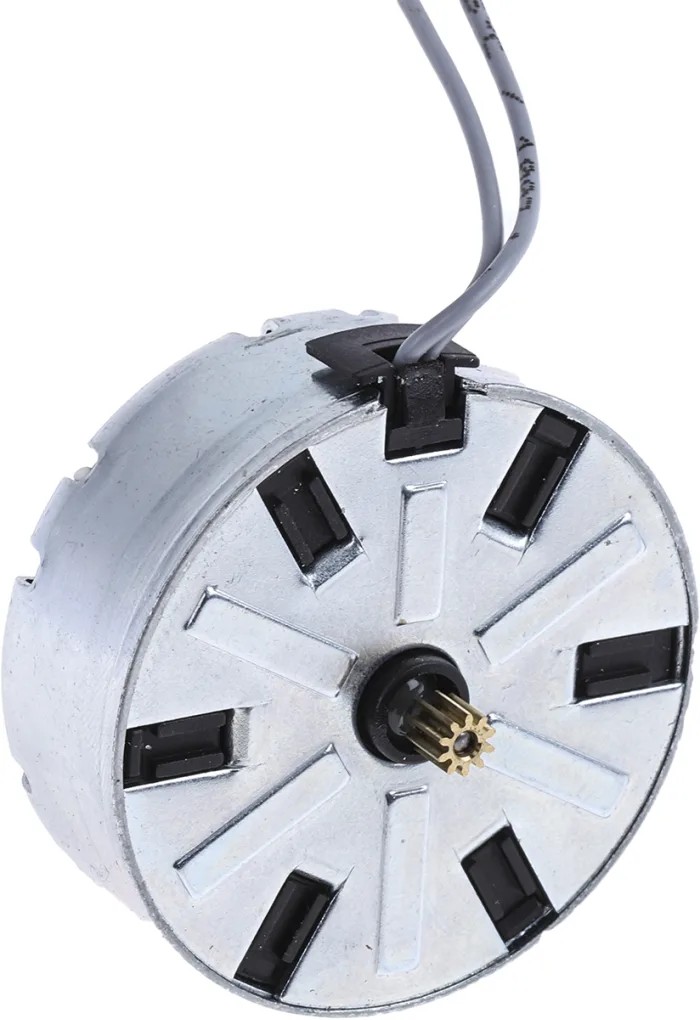

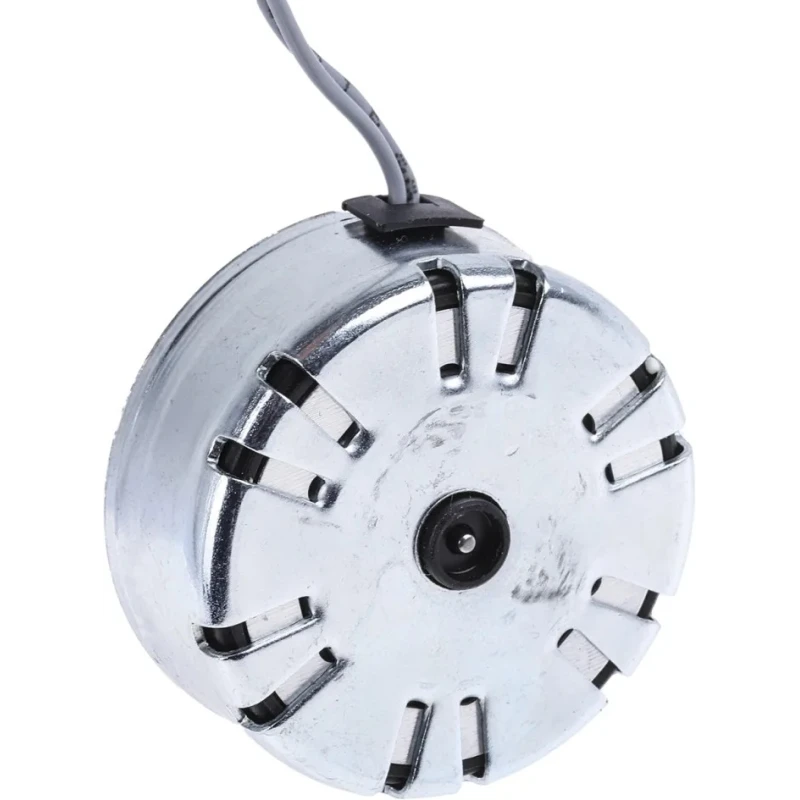

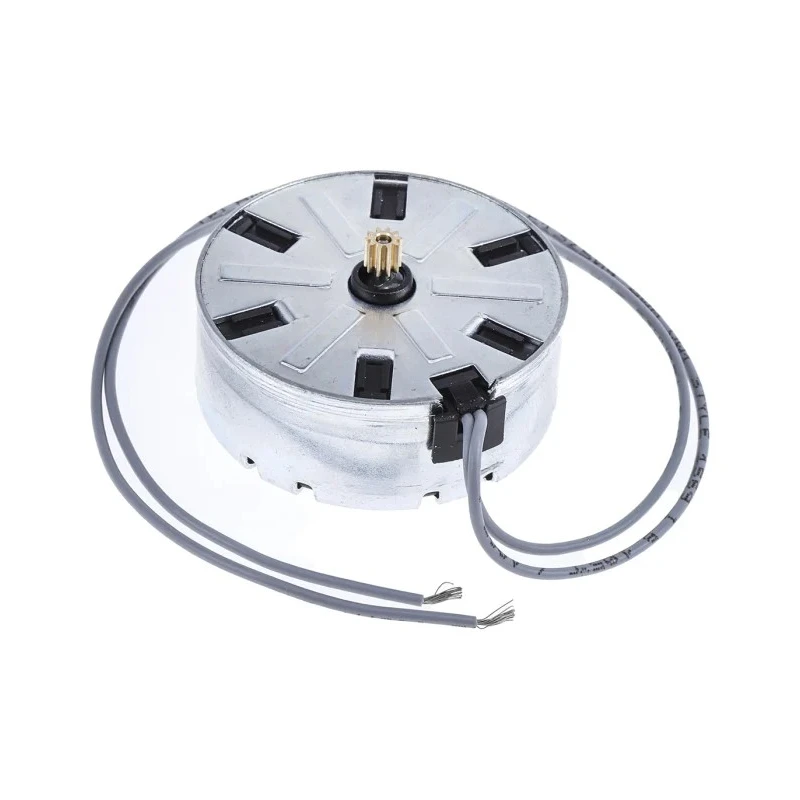

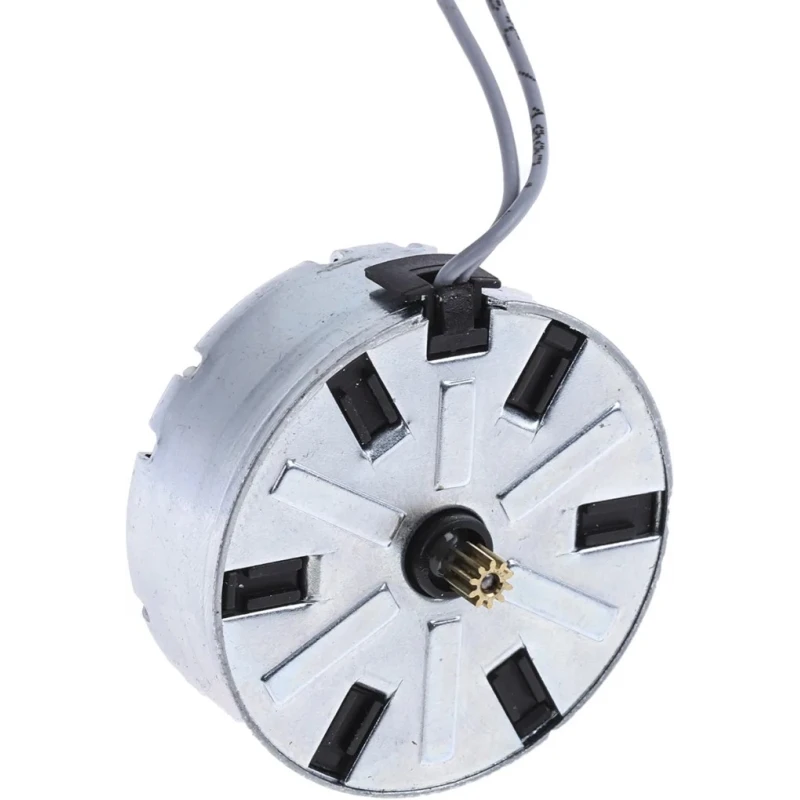

Mechanical characteristics include a compact form factor with a height of 19mm (excluding pinion) and a diameter of 46mm, providing easy mounting within tight spaces. The shaft features a brass pinion, delivering smooth coupling to the gearbox using the supplied clip with gearbox housing.

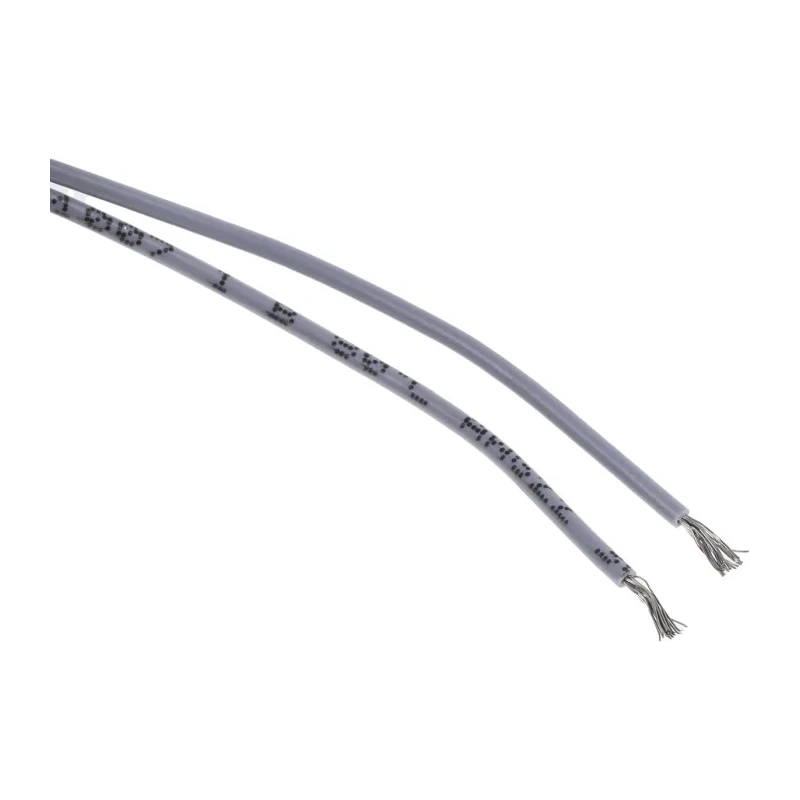

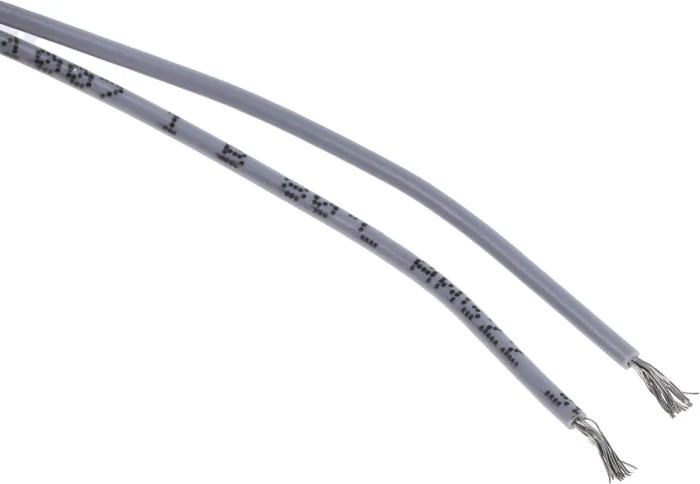

Installation is straightforward thanks to a 220mm lead length, permitting flexibility in routing and positioning. The typical operating temperature rise is 45 degrees Celsius, ensuring durability even under extended duty cycles.

Speed options are available for 50Hz operation (500rpm) and 60Hz operation (600rpm), making the AM24 motor suitable for a range of industrial power systems. These frequency options allow compatibility in both Indian and international automation environments.

This Tempatron drive motor is ideal for use in industrial sequencing, process automation panels, laboratory equipment, commercial timer assemblies, and manufacturing applications requiring precise timing functions. It is also commonly used with cam sequencers, gears, and adjustment frames.

By choosing Tempatron's AM24 drive motor, customers benefit from robust construction, consistent synchronous performance, and suitability for industrial, laboratory, and commercial control gear applications.

Synchronous drive motor with stable 500rpm speed for timing and sequencing tasks. 230V AC supply voltage, 2.5VA power draw, suitable for panel meter accessories. Compact build: 19mm high, 46mm diameter, easy integration into control panels.

Brass pinion shaft and supplied coupling clip facilitate smooth gearbox interfacing. 220mm lead length for installation versatility. Supports both 50Hz and 60Hz operating frequencies for global compatibility. Reliable performance with typical 45°C temperature rise under standard loads.

Optimal for industrial process control, laboratory automation, and commercial timer systems. Browse more Tempatron Drive Motors and synchronization solutions in the Motors & Pumps category at EnvMart.
