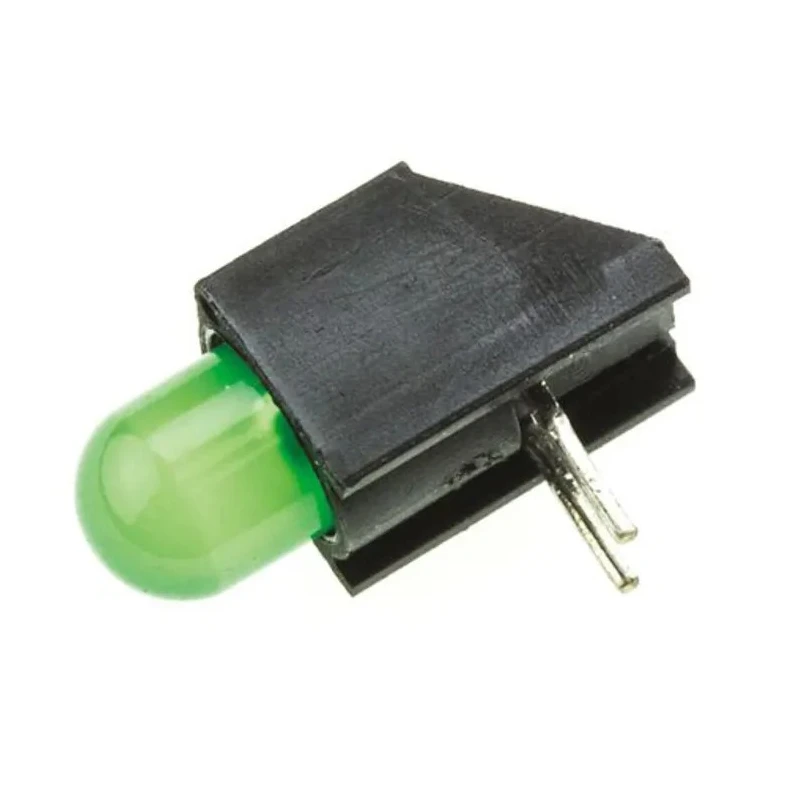

Dialight Green Right Angle 5 mm (T-1 3/4) PCB LED Indicator, Single Colour, 2.1 V, 25 mA Maximum Forward Current 550-2207F
Specifications
| Country of Origin | India |
|---|---|
| Brand | Dialight |
| Length | 13.85mm |
| Model | 550-2207F |
| Mount Type | Through Hole |
| Series | 550 |
| Number Of Leds | 1 |
| Maximum forward current | 25mA |
| Viewing angle | 65 ° |
| Sub Type | Single Colour |
| Power Dissipation | 80mW |
| Lens Colour | Green |
| Luminous Intensity | 10mcd |
| Standards/Approvals | MIL-STD-202F, RoHS, UL 94 V-0 |
| LED Colour | Green |
| Number of Pins | 2 |
| Lens Finish | Tinted, Diffused |
| Minimum Supply Voltage | 2.1V |
| LED Material | GaAsP, GaP |
| Multicolour/Single Colour | Single Colour |
| LED Orientation | Right Angle |
| LED Size | 5 mm (T-1 3/4) |
Key Features
- Features a single green LED with a right angle orientation.
- Operates at a minimum supply voltage of 2.1 V and maximum forward current of 25 mA.
- Constructed with GaAsP and GaP LED material for optimal performance.
- Boasts a viewing angle of 65 degrees and luminous intensity of 10 mcd.
- 5 mm (T-1 3/4) LED size with tinted, diffused lens finish for enhanced visibility.
- Housed in a black plastic casing with a sloped back and standoffs for PCB cleanliness.
- Through-hole mount type with 2 pins ensures secure PCB connection.
- Complies with MIL-STD-202F, RoHS, and UL 94 V-0 standards.
Product Description
Dialight 550-2207F is a high-quality green right angle PCB LED indicator with a 5 mm (T-1 3/4) single colour LED, designed for through-hole mounting on circuit boards. This indicator operates at 2.1 V minimum supply voltage and can handle a maximum forward current of 25 mA, making it suitable for a wide range of electronic and industrial applications.
Constructed with GaAsP and GaP LED materials, the LED achieves a luminous intensity of 10 mcd and has a viewing angle of 65 degrees, providing clear indication under various lighting conditions. The LED is housed in a black plastic body featuring a sloped back with standoffs, which facilitates PCB cleaning and offers high contrast for better visual identification.
The tinted and diffused lens ensures a soft and consistent green light output, enhancing visibility while reducing glare. The device includes 2 pins for secure through-hole mounting, making installation straightforward in PCB designs.
The 550-2207F series from Dialight complies with MIL-STD-202F, RoHS directives, and UL 94 V-0 safety standards, providing peace of mind regarding reliability and environmental compliance. Suitable applications include general electronic indicators, industrial control panels, and power and connector display systems.
Single green 5 mm right angle LED with high reliability. Through-hole mounting ensures robust PCB integration. Black plastic housing with sloped back aids PCB cleanliness and contrast. Complies with MIL-STD-202F, RoHS, and UL 94 V-0 standards.
Ideal for power connectors, display panels, and industrial electronics.
Explore EnvMart's extensive range of PCB LED Indicators from top-tier brands like Dialight to enhance the efficiency and reliability of your electronic projects and industrial systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum supply voltage for this LED indicator is 2.1 V.
It can handle a maximum forward current of 25 mA.
The viewing angle of this model is 65 degrees.
The luminous intensity of this LED is 10 mcd.
This model uses through-hole mounting with 2 pins for secure PCB connection.
It is constructed with GaAsP and GaP LED materials.
The length of this LED indicator is 13.85 mm.
This LED complies with MIL-STD-202F, RoHS, and UL 94 V-0 standards.
The lens finish is tinted and diffused, enhancing visibility.
It is suitable for general electronic indicators, industrial control panels, and power and connector display systems.
The LED size is 5 mm (T-1 3/4).
The power dissipation rating for this LED is 80 mW.
