Dialight Red Right Angle PCB LED Indicator 5 mm (T-1 3/4), 1 LED, 1.8 V, Through Hole Mount 550-1107F

Free Delivery in India | Lowest Global Shipping Charges

Dialight Red Right Angle PCB LED Indicator 5 mm (T-1 3/4), 1 LED, 1.8 V, Through Hole Mount 550-1107F

Name: Dialight Red Right Angle PCB LED Indicator 5 mm (T-1 3/4), 1 LED, 1.8 V, Through Hole Mount 550-1107F
Brand: DIALIGHT
SKU: 341606
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand DIALIGHT Condition New

Specifications

Country of Origin	India
Brand	Dialight
Length	13.85mm
Model	550-1107F
Mount Type	Through Hole
Series	550
Number Of Leds	1
Maximum forward current	30mA
Viewing angle	50 °
Sub Type	Single Colour
Power Dissipation	80mW
Lens Colour	Red
Luminous Intensity	2mcd
Standards/Approvals	UL 94 V-0, RoHS, MIL-STD-202F
LED Colour	Red
Number of Pins	2
Lens Finish	Diffused
Minimum Supply Voltage	1.8V
LED Material	GaAsP, GaP
Multicolour/Single Colour	Single Colour
LED Orientation	Right Angle
LED Size	5 mm (T-1 3/4)
HE PCB mount red LED,550-1107 10mA 5mmBrand	Dialight

Key Features

The product features a single red LED with a 50° viewing angle.
Designed for through-hole mounting with 2 pins for PCB installation.
LED material is GaAsP and GaP for reliable luminous intensity of 2 mcd.
Maximum forward current is rated at 30 mA with power dissipation of 80 mW.
The black plastic housing provides high contrast and supports PCB cleaning with standoffs.
This indicator meets standards including UL 94 V-0, RoHS compliance, and MIL-STD-202F.
Fits in industrial and electronic applications requiring a compact indicator.
Its lens finish is diffused with a red color to ensure clear signaling.

Product Description

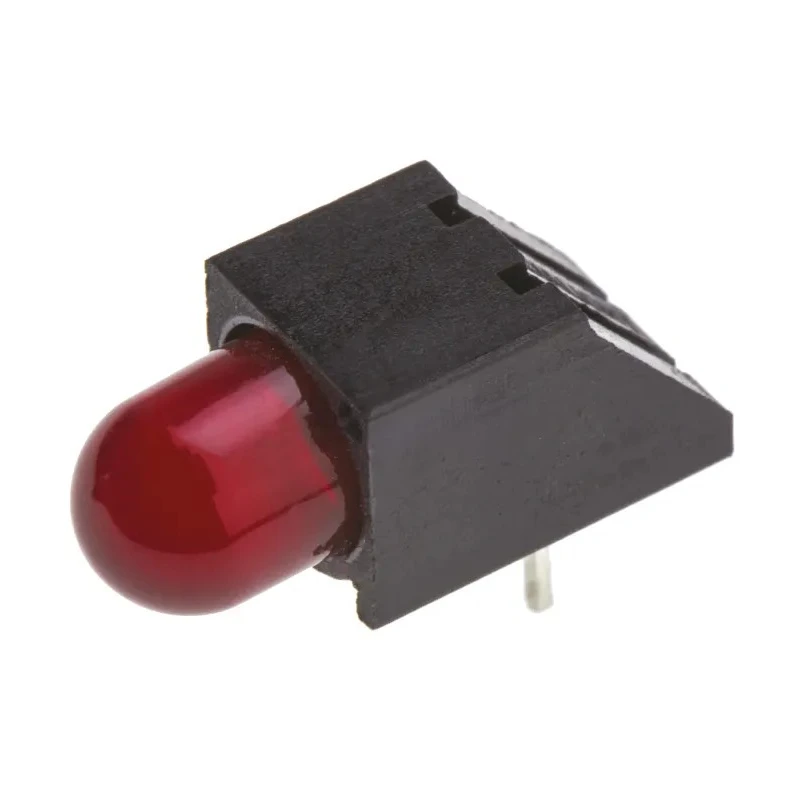

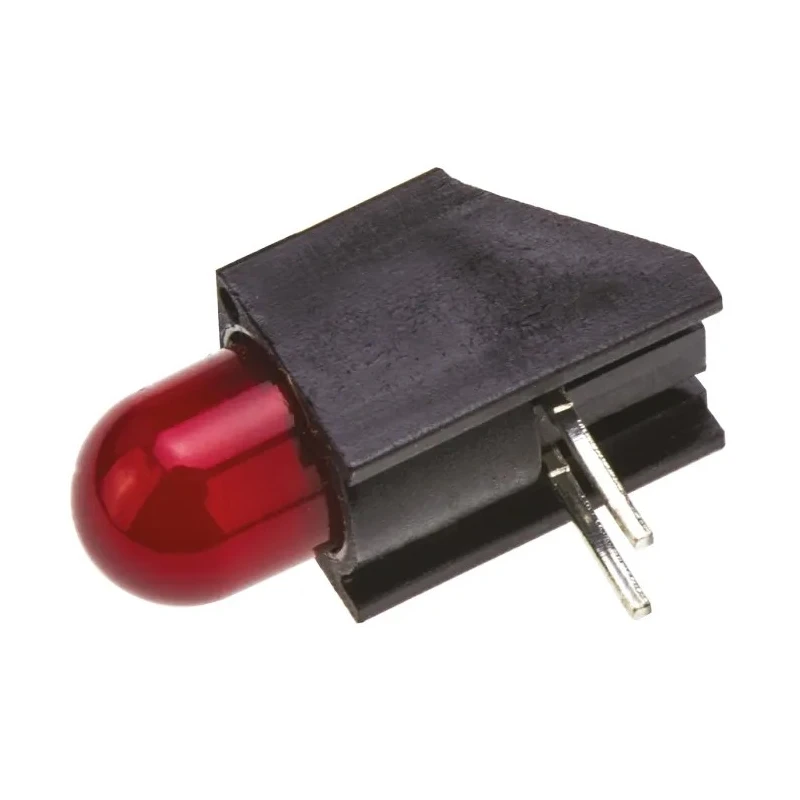

Dialight 550-1107F is a red right angle PCB LED indicator featuring a 5 mm (T-1 3/4) LED size with a diffused red lens for vibrant display. This single LED device operates at a minimum supply voltage of 1.8 V and outputs a luminous intensity of 2 mcd. It mounts via two pins through-hole to PCBs, offering robust mechanical stability.

The LED material composition of GaAsP and GaP ensures consistent light quality and durability. The black plastic housing has a sloped back with standoffs, which enhances PCB cleaning and reduces contamination risks. The indicator label quality meets UL 94 V-0 standards, is RoHS-compliant, and fulfills MIL-STD-202F testing, thus suitable for industrial, commercial, and electronic manufacturing environments.

This PCB LED is compatible with Dialight's 550-xx07 dual block and 550-xx07-004 quad block connectors, making it versatile for various circuit designs. Its maximum forward current is 30 mA with a power dissipation rating of 80 mW, ensuring safe electrical operation under typical load conditions.

The 50° viewing angle offers optimal visibility in panel and indicator applications such as control boards, instrumentation, and display modules. With a length of 13.85 mm, it fits compact PCB layouts without compromising performance.

Single red LED with 50° viewing angle. Through-hole mounting with 2 pins. GaAsP, GaP LED material for reliable light output. Maximum forward current of 30 mA and power dissipation of 80 mW. Black plastic housing with sloped back and standoffs for easy PCB cleaning.

Certified to UL 94 V-0, RoHS, and MIL-STD-202F standards. Compatible with Dialight 550-xx07 dual and quad block connectors. Compact size with 13.85 mm length. Diffused red lens finish for clear indicator lighting.

This indicator is ideal for use in industrial electronics, instrumentation, control systems, and any application requiring reliable PCB indicator lighting. Browse the Electronics Components category on EnvMart for compatible PCB LED indicators and other lighting solutions.
