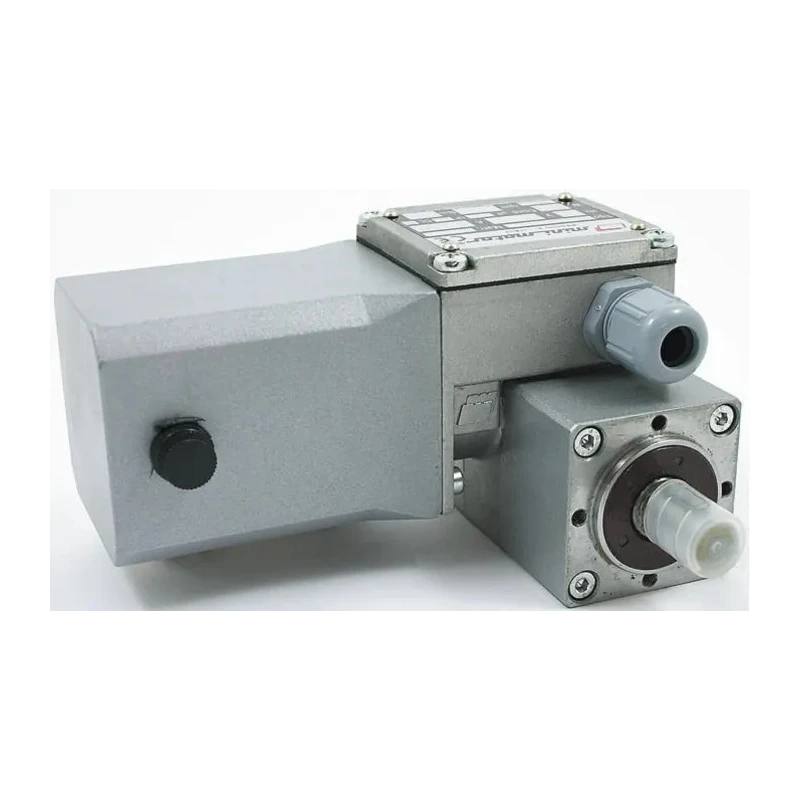

Mini Motor Brushed Geared DC Geared Motor 24V dc 34W 15Nm Torque 8rpm Speed 12mm Shaft Diameter BCE2000 24 MP 400 B3

Mini Motor BCE2000 24 MP 400 B3 is a high-performance brushed geared DC geared motor operating at a supply voltage of 24V dc with a power rating of 34W. It delivers a maximum output torque of 15Nm and an output speed of 8rpm, designed for precise and demanding industrial applications.

This motor incorporates a worm and planetary gearhead constructed from aluminium, combining robust build quality with efficient power transmission. The foot mount (B3 standard) allows secure installation in various automation and control gear environments.

Equipped with a 12mm diameter shaft and 15mm shaft length, it provides reliable mechanical interface compatibility. The motor core is made of iron with a Class F winding that complies with VDE0530 standards, ensuring thermal endurance and longevity under continuous operation.

The gear ratio of 400:1 and inclusion of a secondary planetary gearbox enhances torque output while maintaining a low output speed of 8rpm, ideal for applications requiring high torque at slow speeds.

The motor has dimensions of 139.5mm length, 77.5mm width, and 55.5mm depth, making it compact for space-constrained installations. It supports IP65 standard insulation per CEI EN 60529, guarding against environmental contaminants for reliability in harsh conditions.

This motor is primarily applied in industrial automation, manufacturing machinery, robotics, and electrical systems requiring efficient DC geared motor solutions for precise movement control.

The motor features a 12mm shaft diameter with a 15mm shaft length. Constructed with an aluminium worm and planetary gearhead for durability. Foot mount type with B3 standard and IP65 insulation rating ensures reliable installation.

Includes an iron core construction and Class F winding complying with VDE0530 standards. Gear ratio is 400:1 providing high torque at low speed. Designed with a secondary planetary gearbox for enhanced torque output. Current rating is 2.1A suited for a 24V dc permanent magnet motor.

Dimensions measure approximately 139.5mm length, 77.5mm width, and 55.5mm depth. Developed and manufactured in Italy meeting RoHS and CEI EN 60529 compliance. Explore more DC Geared Motors and industrial automation solutions at EnvMart for reliable sourcing and expert technical specifications.
