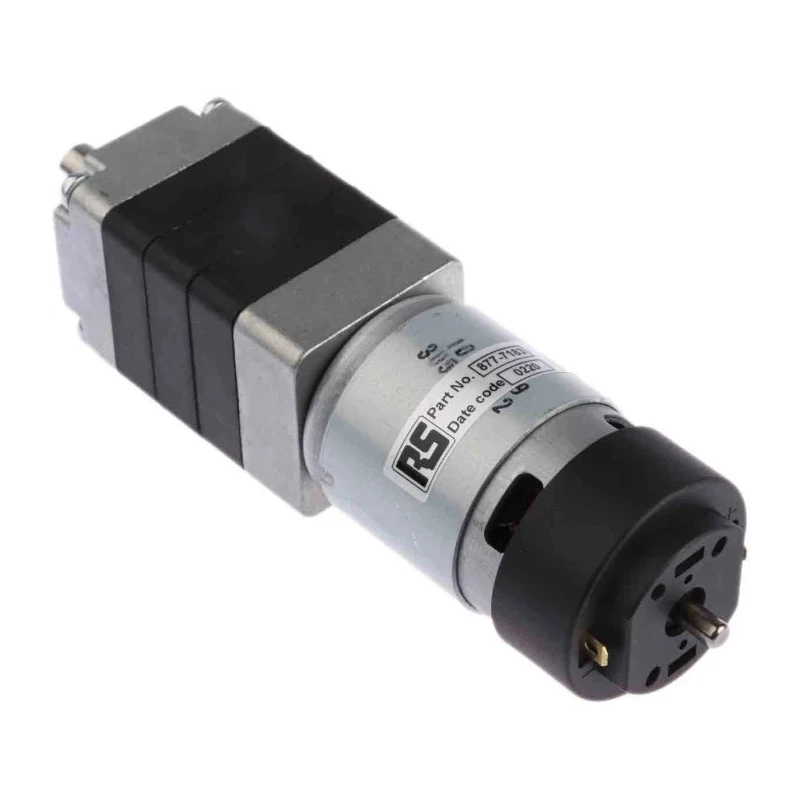

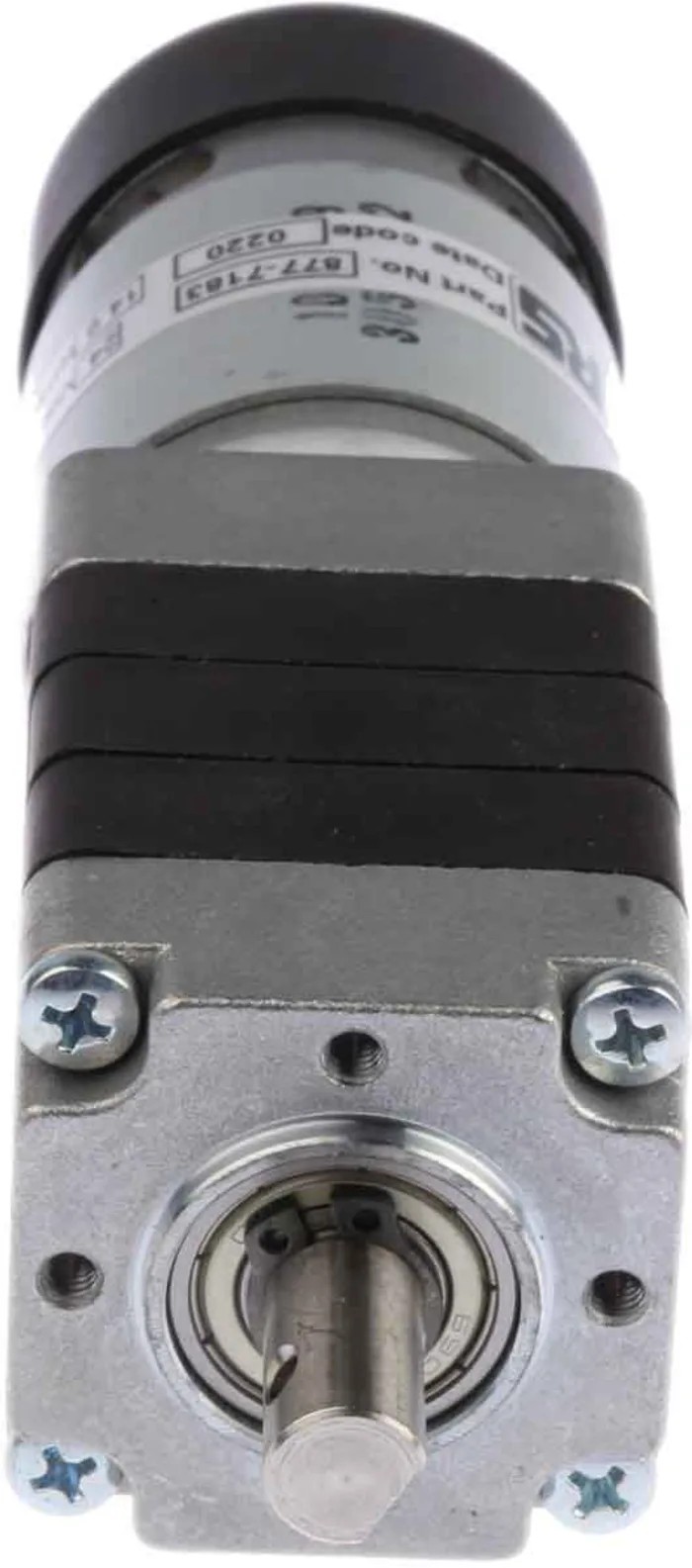

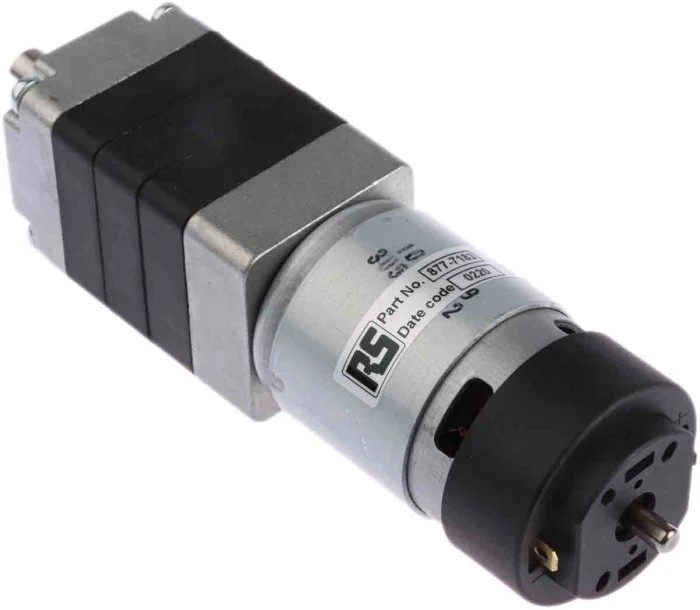

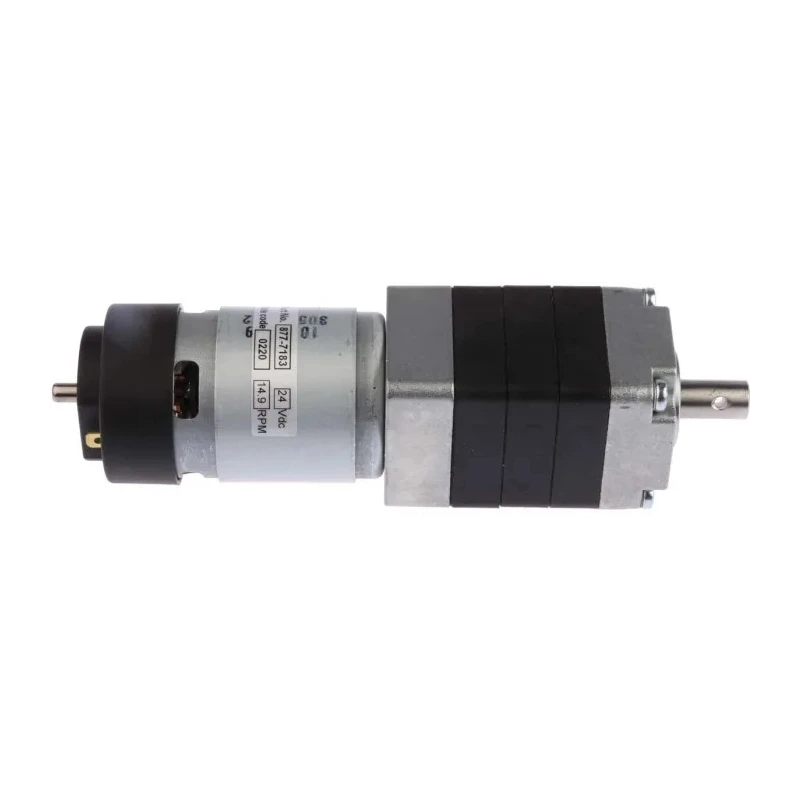

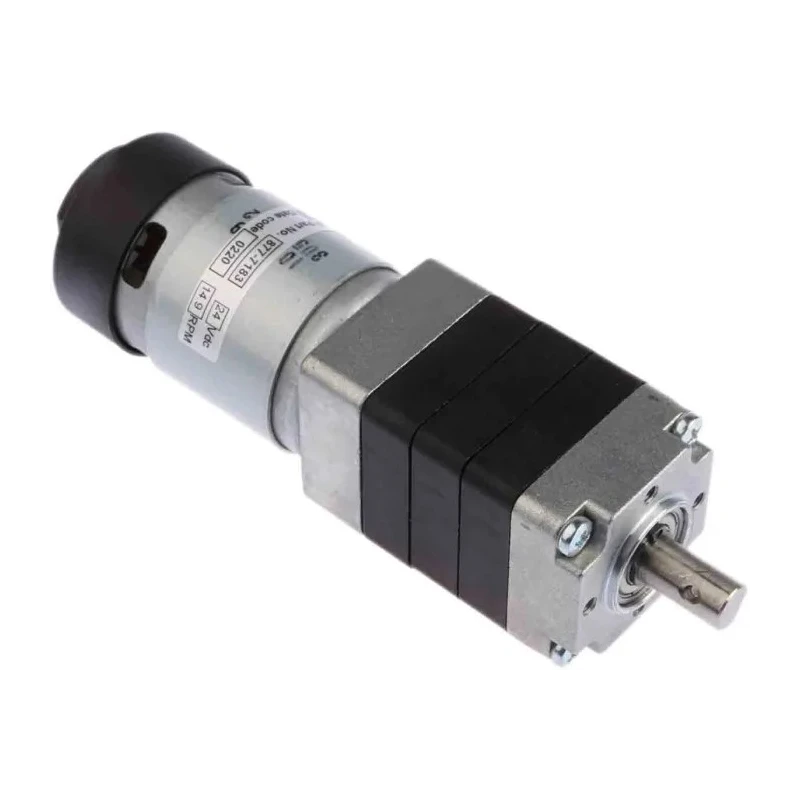

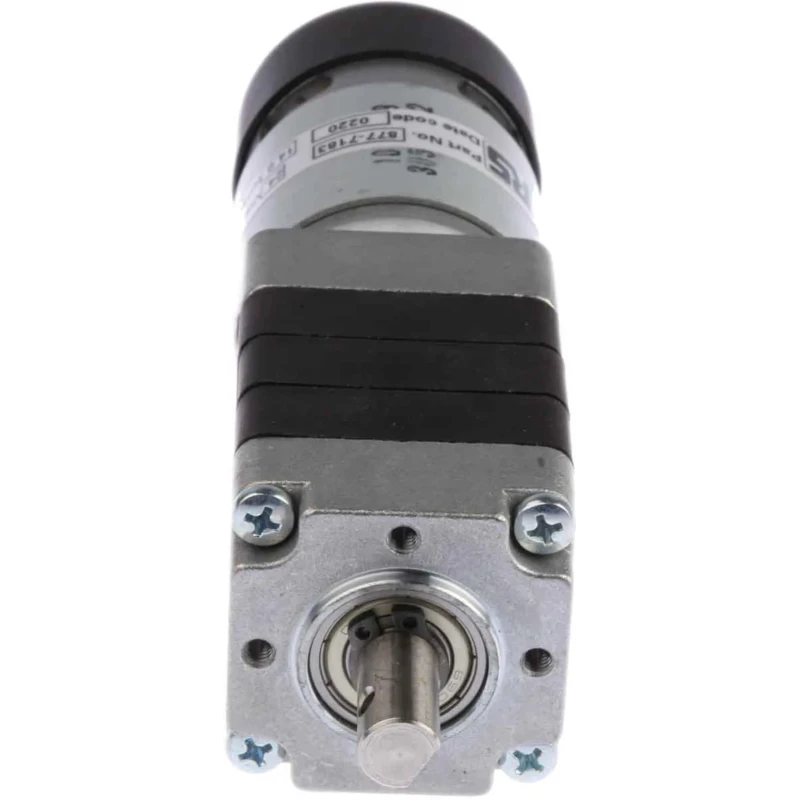

Micromotors Brushed Planetary Geared DC Motor 24V, 26.4W, 9Nm Torque, 14rpm Output Speed, 10mm Shaft Diameter P205-24-244

Micromotors P205-24-244 is a brushed, planetary geared DC motor designed to deliver reliable power and torque for industrial and automation applications. Rated at 26.4 W power and operated on nominal 24 V DC supply, it achieves an output speed of 14 rpm with a strong maximum output torque of 9 Nm.

The motor is built with a steel body and planetary gearhead type which ensures durability and efficient torque transmission. The shaft diameter measures 10 mm, and shaft length is 18 mm, enabling compatibility with various mechanical setups. It is supported by two ball bearings, reducing wear and operational noise.

The motor supports reversible rotation depending on the polarity of the voltage applied, with a screw mount type for straightforward installation. It is suitable for operation in a wide temperature range from -20 °C to +60 °C.

This model features a high gear ratio of 244.14:1 to optimize the torque output and motor speed, making it ideal for applications requiring precision movement at low speeds. Compliant with ISO 9001:2008 standards, it assures manufacturing quality and reliability.

Dimensions are compact with length 145.5 mm, width 42 mm, and depth 42 mm, making the motor flexible for integration in constrained spaces. This motor is part of the P250 series and is manufactured in Italy.

Durable steel construction with planetary gearhead for high torque delivery and reliability. High gear ratio (244.14:1) providing optimal torque and speed balance. Reversible rotation direction controlled by voltage polarity.

Two ball bearing shaft support for smooth and quiet operation. Wide operating temperature range from -20 to +60 °C. Screw mount for ease of installation in automation and industrial systems. ISO 9001:2008 compliant ensuring high manufacturing quality.

Compact dimensions of 145.5 mm length and 42 mm width/depth.

This Micromotors P205-24-244 DC Geared Motor is suited for industrial, automation, and control applications requiring reliable torque at low rotational speeds. Explore related DC motors and geared motor products at EnvMart for your technical needs.
