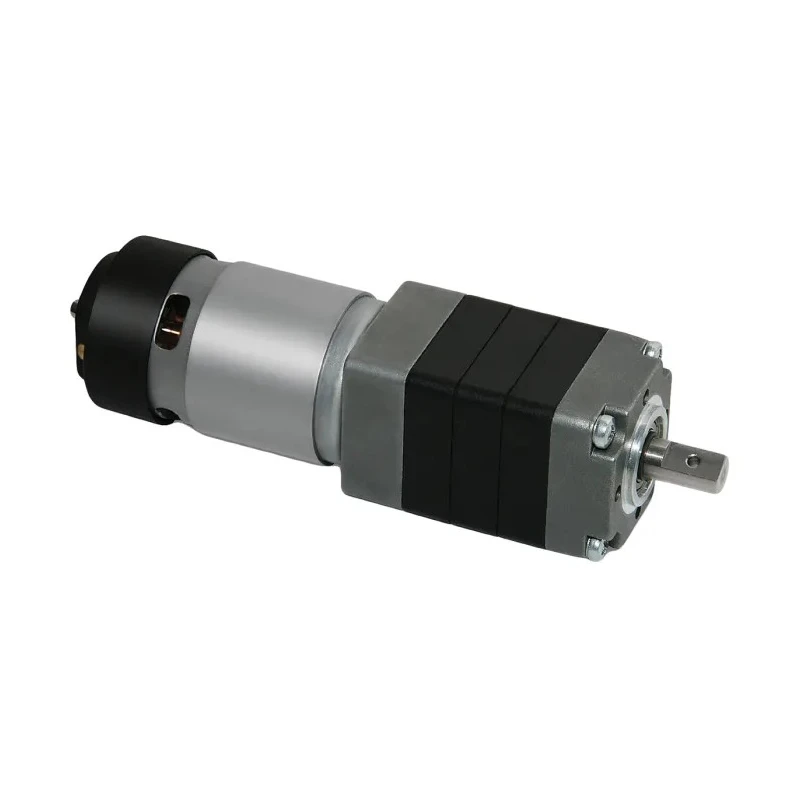

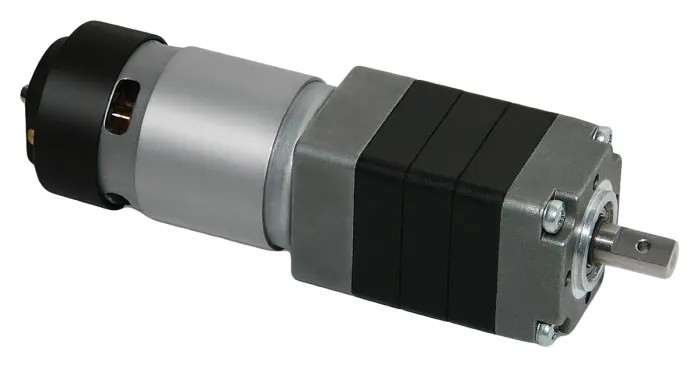

Micromotors Brushed Planetary Geared DC Motor 24V DC 15.6W 9Nm Torque 6rpm Output Speed 10mm Shaft Diameter P205-24-625

Micromotors P205-24-625 is a brushed planetary geared DC motor designed for precise industrial and automation applications. It operates at a nominal supply voltage of 24V DC, delivering a continuous power rating of 15.6 watts while producing a high output torque of 9Nm at a low speed of 6rpm. The motor shaft, made of steel with a diameter of 10mm and a length of 18mm, is supported by two ball bearings, ensuring smooth and reliable rotation with minimal wear.

The planetary gearhead with a gear ratio of 625:1 amplifies the torque output significantly, making it suitable for applications requiring high torque at low speed, such as robotics, conveyor systems, or precision machinery. The motor is designed to be mounted by screws and can be installed in any position, providing flexibility in diverse engineering setups.

Built to operate reliably in temperature ranges from -20 to +60 degrees Celsius, this motor meets the ISO 9001:2008 quality standard and is manufactured in Italy. Its compact dimensions of 158mm length, 42mm width, and 42mm depth make it adaptable for integration into various industrial and automation equipment.

This motor also features motor interference suppression by VD and offers direction of rotation reversible by polarity, enhancing its control and performance capabilities. Electrical characteristics include a current rating of 650mA, tailored for efficient operation within standard DC systems.

Industrial sectors that benefit from the Micromotors P205-24-625 include manufacturing automation, robotics, laboratory equipment, and other machinery requiring reliable and high-precision geared motors. Its rugged steel material enhances longevity, reducing maintenance needs in demanding environments.

Features a robust steel construction for durability. Equipped with a planetary gearhead and a gear ratio of 625:1 for high torque output. Has a 10mm diameter shaft with 18mm length supported by two ball bearings. Suitable for mounting by screw in any orientation with temperature range from -20°C to +60°C.

Complies with ISO 9001:2008 quality standards and manufactured in Italy. Current rating is 650mA, ensuring reliable electrical performance. Compact dimensions with 158mm length, 42mm width, and 42mm depth. Explore the extensive category of DC Geared Motors at EnvMart for compatible industrial and automation products by Micromotors.
