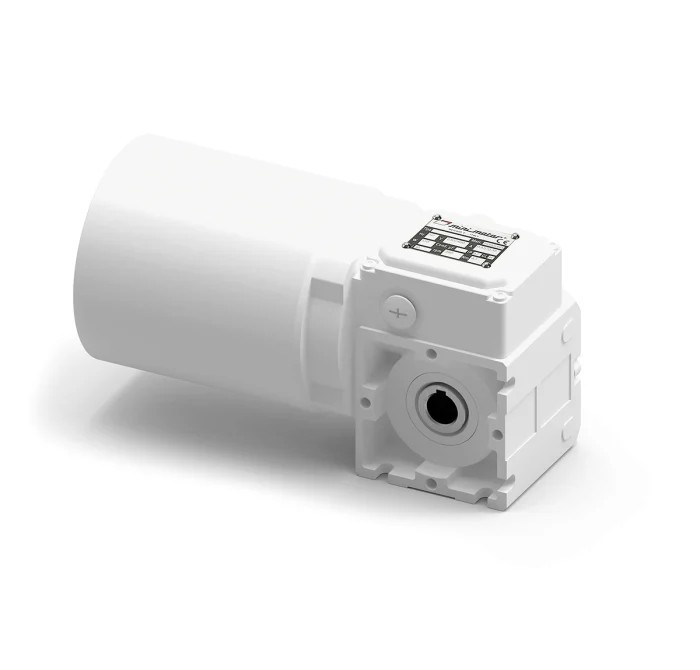

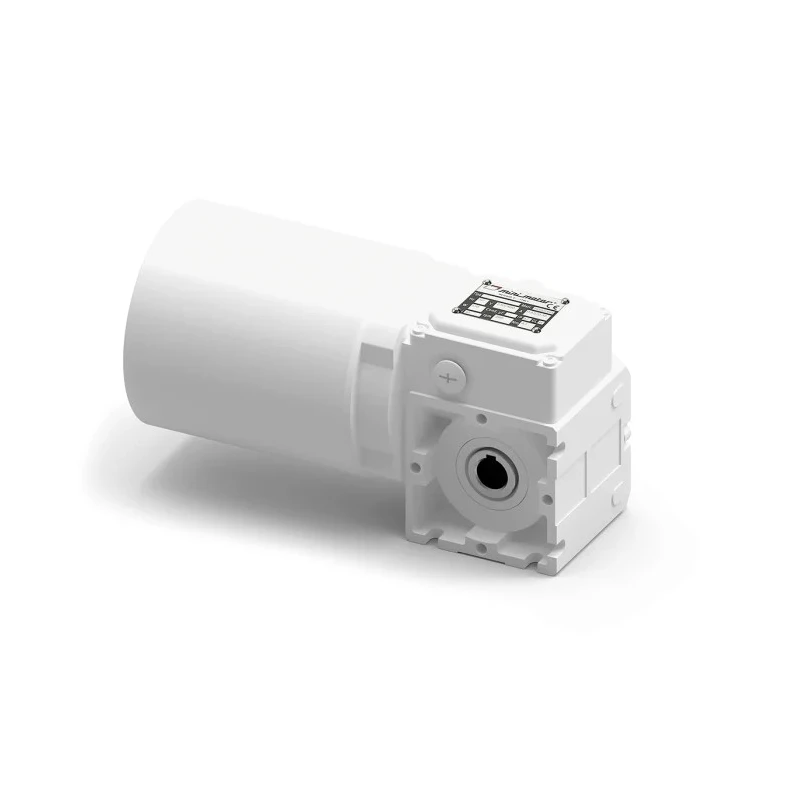

Mini Motor AC Worm Geared Motor 290 W 2-Pole 400V Aluminium Steel IP67 XCF Series XCF5T2-5-B5

Mini Motor XCF5T2-5-B5 is a high-performance AC worm geared motor featuring a 290 W asynchronous three-phase motor with 2 poles designed for demanding industrial and automation applications. It operates at a supply voltage of 400V and incorporates a worm gearhead type with a 5:1 gear ratio to provide reliable torque and precise speed reduction.

The motor casing is constructed from die-cast aluminium, combined with steel components to provide excellent structural integrity and corrosion resistance. The output shaft is stainless steel, while the wheel rim is made from special bronze hardened to 120/160 HB, assuring durability under harsh operating conditions. The gear unit uses hardened steel worm gears rotating on ball and roller bearings with long-lasting lubrication for minimal maintenance.

With an IP67 protection rating accredited under IEC/EN 60529 standards, this motor is sealed against dust and can withstand immersion in water, making it well-suited for harsh and dirty environments typical in industrial sectors such as manufacturing, automation, HVAC systems, and water treatment facilities.

Compact dimensions of 291 mm length, 96 mm width, and 151 mm depth ensure ease of installation in limited spaces. The maximum output torque rating of 4.4 Nm provides adequate power for small to medium industrial mechanization tasks, while the current rating of 1.56 A emphasizes energy-efficient performance.

The bearing assembly, including both ball and roller types, ensures smooth operation and longevity. The motor series XCF is recognized for high reliability and robust construction. Manufactured in Italy, this geared motor meets strict quality standards and RoHS compliance.

Industrial sectors benefiting from this motor include electrical automation, laboratory machinery, manufacturing equipment, agricultural systems, and commercial HVAC applications. Its epoxy white protective coating adds to its durability by minimizing dirt accumulation and enhancing protection against environmental factors.

Equipped with a worm gearhead for precise motion control and durability. Asynchronous three-phase 2-pole motor delivers consistent performance. Durable aluminium and steel construction with epoxy protective coating. IP67 rating ensures protection against dust and water ingress.

Compact size facilitates integration in space-constrained setups. Maximum output torque of 4.4 Nm suits a variety of industrial uses. Ball and roller bearings extend operational life and reduce maintenance. Manufactured in Italy with compliance to IEC/EN 60529 and RoHS standards.
