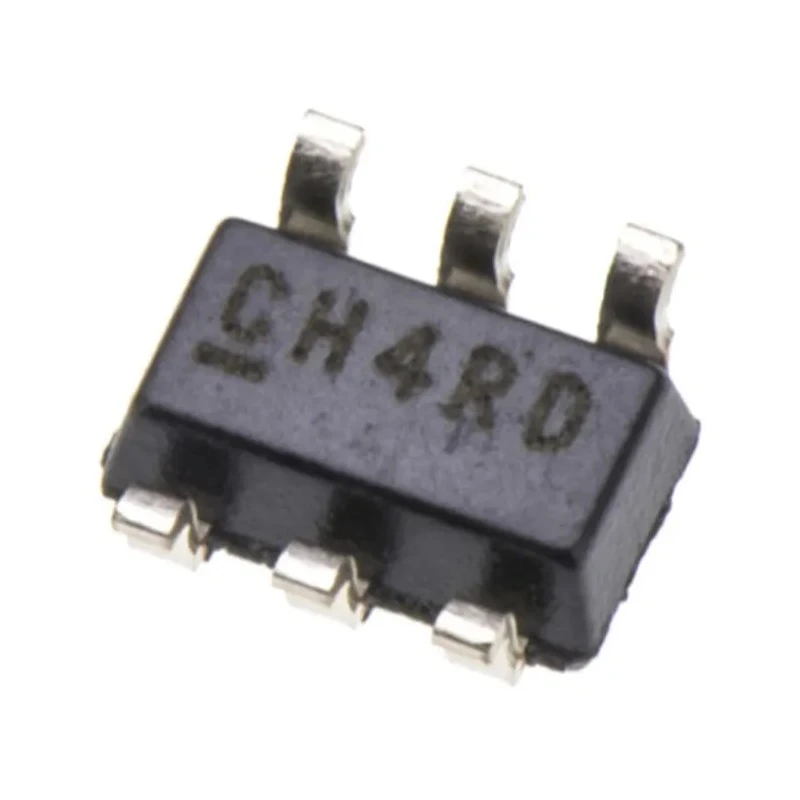

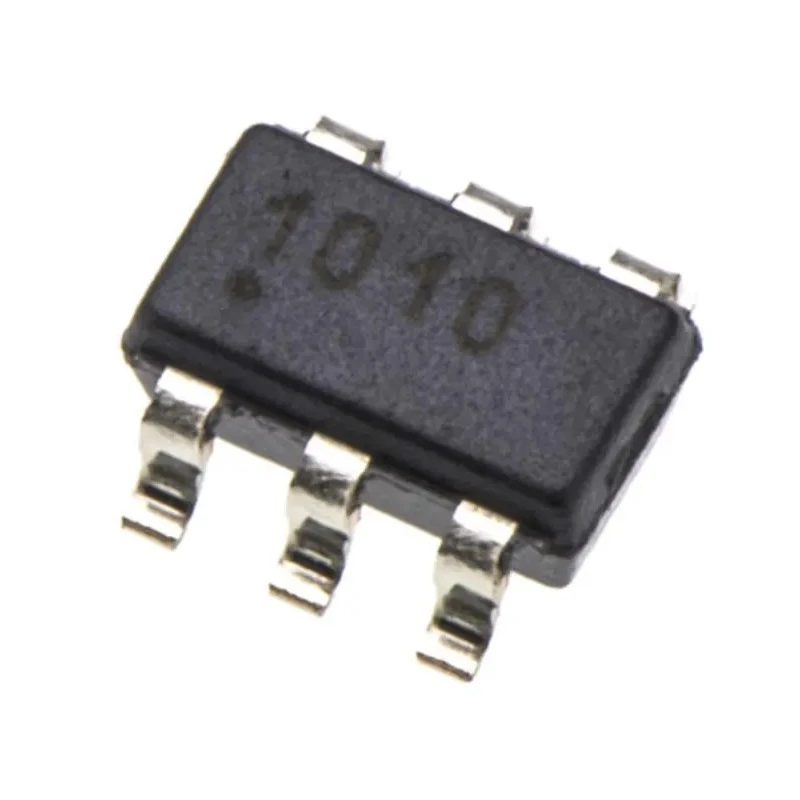

Renesas Electronics ISL43210AIHZ-T7A Analogue Switch 1 CMOS Single SPDT 6-Pin SOT-23 ISL43210AIHZ-T7A

Renesas Electronics ISL43210AIHZ-T7A is a high-performance analogue switch designed to support various electronic applications requiring single-pole double-throw (SPDT) switching in a compact 6-pin SOT-23 package. This device uses CMOS technology, delivering low on-state resistance and fast switching suitable for signal multiplexing and demultiplexing in Semiconductors.

Operating with supply voltages ranging from 2.7V to 15V, this analogue switch offers reliable performance across an extended temperature range from -40°C to 85°C, making it appropriate for industrial, automotive, and consumer electronics environments.

Its compact dimensions (length 2.9mm, width 1.6mm, height 1.15mm) allow for efficient PCB layout, while the surface mount SOT-23 package supports modern manufacturing processes for automated insertion and soldering.

The ISL43210AIHZ-T7A supports output compatibility with both CMOS and TTL logic families, enhancing its integration flexibility across diverse circuit designs in logic ICs and semiconductor projects.

As a RoHS-compliant component, it meets environmental regulations that restrict hazardous substances. Originating from Malaysia, it reflects the stringent quality standards upheld by Renesas Electronics.

Operates with a minimum supply voltage of 2.7V and maximum supply voltage of 15V. Maximum on-state resistance of 25Ω ensuring efficient signal transmission. Wide operating temperature range from -40°C to 85°C. Compact 6-pin SOT-23 surface mount package with dimensions optimized for space-saving PCB designs.

Single SPDT configuration enabling versatile analogue switching applications. Compatible output for CMOS/TTL logic signal families. RoHS compliant for environmentally safe electronics manufacturing. Manufactured in Malaysia with consistent quality control.

This analogue switch is ideal for use in industrial, construction, electronics manufacturing, and laboratory applications where reliable, low-power analogue multiplexing is needed. It suits embedded systems, communication devices, and consumer electronic products. Explore more Renesas Electronics semiconductor components and logic ICs on EnvMart for professional procurement solutions.
