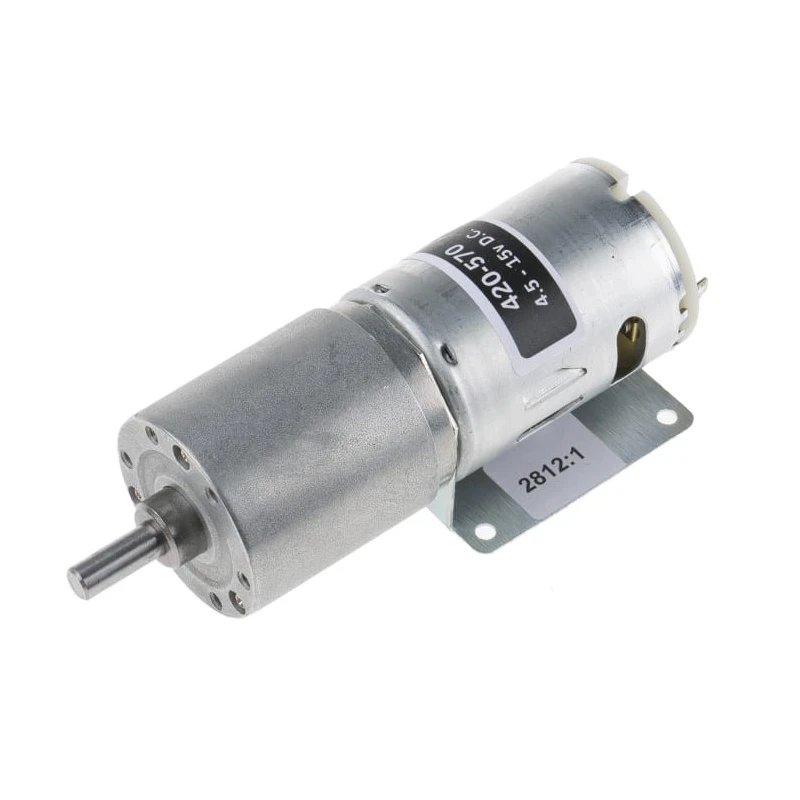

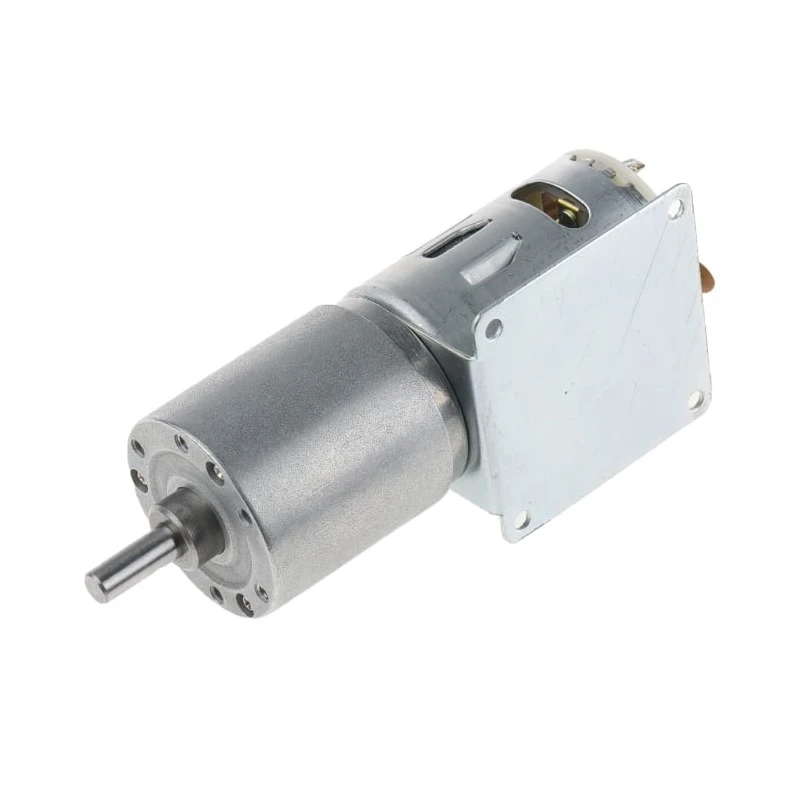

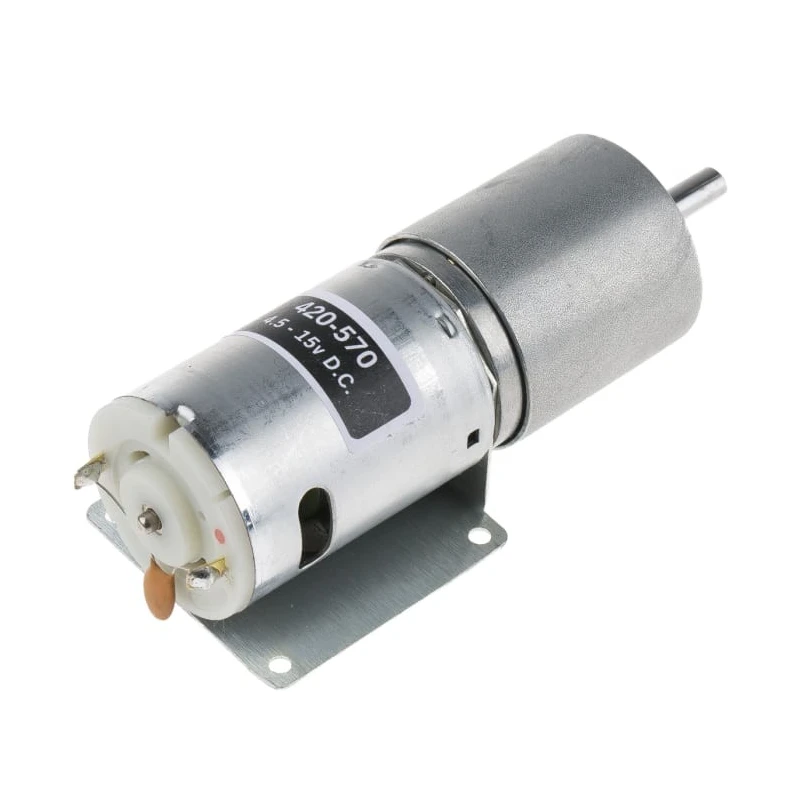

RS PRO Brushed DC Geared Motor 19.8W, 15V/4.5V DC, 59Ncm Torque, 5rpm, 6mm Shaft 420-570
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Material | Metal |
| Length | 84mm |
| Model | 420-570 |
| Depth | 39.3mm |
| Width | 39.3mm |
| Mount Type | Screw |
| Current Rating | 2.75A |
| Series | 970D |
| Power Rating | 19.8W |
| Sub Type | Brushed Geared |
| Output Speed | 5rpm |
| Shaft Diameter | 6mm |
| Shaft Length | 15mm |
| Supply Voltage | 15, 4.5V dc |
| Gear ratio | 2812:1 |
| Standards/Approvals | RoHS |
| Maximum Output Torque | 59Ncm |
| Gearhead Type | Spur |
| Core Construction | Iron Core |
| Gear Ratio2812 | 1 |
| 2812 | 1 |
Key Features
- Brushed DC geared motor provides reliable performance for automation applications.
- Delivers 19.8W power output supporting use in industrial control systems and robotics.
- Operates at supply voltages of both 15V and 4.5V DC for versatile integration.
- Low speed output of 5rpm enhances torque and accuracy for positioning tasks.
- Offers a high maximum output torque of 59Ncm for demanding motion requirements.
- 6mm shaft diameter and 15mm shaft length suitable for precision mechanical assembly.
- Features robust iron core construction and sintered bronze bearings for durability.
- Supports 2.75A current rating enabling powerful drive capability.
Product Description
The RS PRO 420-570 Brushed DC Geared Motor is engineered for demanding motion control and automation tasks requiring high torque at low speed. With a power rating of 19.8W, and capable of operating from both 15V and 4.5V DC supply voltages, this versatile motor is suitable for industrial assemblies, robotic movement, and automated mechanisms.
This unit incorporates a brushed five-pole DC motor within a spur gearhead, providing a gear ratio of 2812:1. Such gearing enables powerful torque multiplication, resulting in a maximum output torque of 59Ncm while maintaining an output speed of 5rpm. Precision tasks requiring controlled motion benefit from these characteristics, making this motor ideal for positioning and step applications.
Construction quality is highlighted by an iron core motor and sintered bronze bearings that ensure long-term durability and smooth operation. The robust metallic body, combined with a shaft diameter of 6mm and shaft length of 15mm, allows stable integration into mechanical systems requiring precise shaft output.
The unit's electrical performance is maximized by a current rating of 2.75A, further supporting high-demand load conditions. The compact footprint - 84mm in length and 39.3mm in width and depth - makes it easy to install in space-limited enclosures. Mounting is facilitated using screw fixation, ensuring secure installation in automated equipment or industrial panels.
Applications for this RS PRO Brushed DC Geared Motor include industrial automation, conveyor systems, material handling, laboratory equipment, model engineering, and precision robotics. It is suited for environments requiring rugged mechanical performance, reliable torque transmission, and consistent operation under variable voltage inputs.
The gearhead is of spur type, suitable for direct drive applications, and the iron core configuration supports efficient energy transfer and stability. Sintered bronze output bearings contribute to high torque transfer efficiency. The RoHS compliance ensures suitability for regulated environments.
Browse related RS PRO Gear Motors and discover automation solutions for precise motion and industrial engineering with EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The motor has a power rating of 19.8W, making it suitable for various automation applications.
This model delivers a maximum output torque of 59Ncm, which is ideal for demanding motion requirements.
It operates at supply voltages of both 15V and 4.5V DC, allowing for versatile integration into different systems.
The output speed of this motor is 5rpm, which enhances torque and accuracy for positioning tasks.
This unit features a spur gearhead with a gear ratio of 2812:1, providing effective torque multiplication.
The motor has a length of 84mm, a width of 39.3mm, and a depth of 39.3mm, making it compact for installation.
It has a shaft diameter of 6mm and a shaft length of 15mm, suitable for precision mechanical assembly.
The motor has a current rating of 2.75A, which supports its powerful drive capability.
The motor features an iron core construction and sintered bronze bearings, contributing to its performance and durability.
The motor is designed for screw mounting, ensuring secure installation in various applications.
This motor is suitable for applications such as industrial automation, conveyor systems, and precision robotics.
The motor is RoHS compliant, making it suitable for regulated environments.
