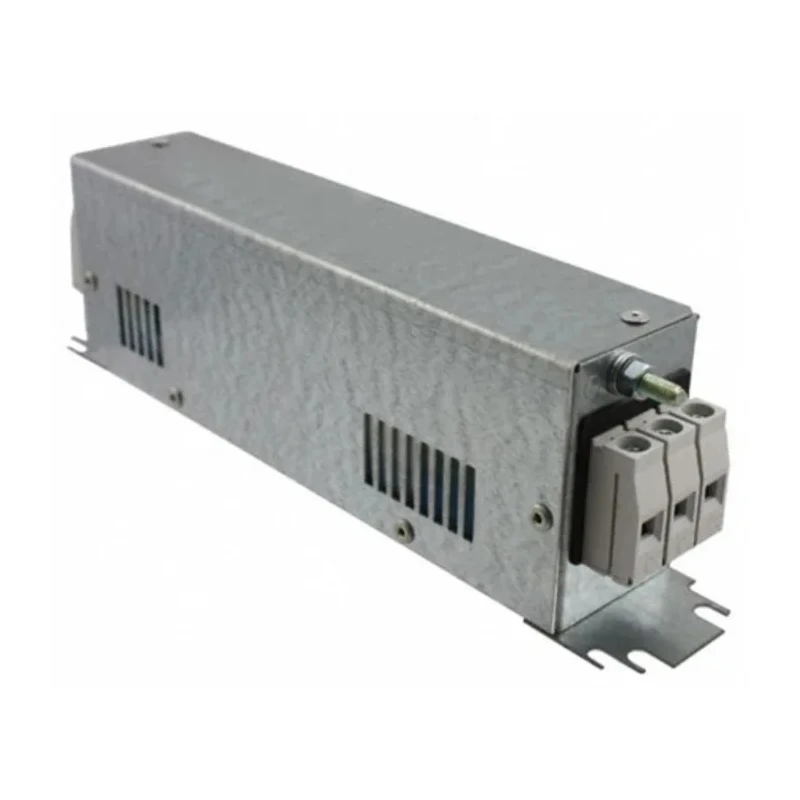

Schurter FMAC ECO 80A 480V AC 60Hz 3-Phase Flange RFI Power Line Filter FMAC-091T-8010

Free Delivery in India | Lowest Global Shipping Charges

Schurter FMAC ECO 80A 480V AC 60Hz 3-Phase Flange RFI Power Line Filter FMAC-091T-8010

Name: Schurter FMAC ECO 80A 480V AC 60Hz 3-Phase Flange RFI Power Line Filter FMAC-091T-8010
Brand: Schurter
SKU: 217722



Category Power Line Filters Brand Schurter Condition New

Specifications

Country of Origin	India
Brand	Schurter
Height	135mm
Length	80mm
Model	FMAC-091T-8010
Depth	320mm
Mount Type	Flange
Operating Frequency	60Hz
Series	FMAC ECO
Maximum Operating Temperature	100°C
Number Of Stages	1
Resistance	1.1mΩ
Capacitance	4.7μF
Minimum Operating Temperature	-25°C
Maximum Current	80A
Number of Phases	3
Leakage Current	11.1mA
Maximum Voltage	480V ac
Inductance	550μH
Standards/Approvals	UL 1283, IEC 60939
Termination Style	Screw
Power Loss	22W

Key Features

Designed for 3-phase electrical systems with flange mounting.
Maximum operating current of 80 Amperes at 480V AC.
Single-stage filter providing high symmetrical and asymmetrical attenuation.
Operating frequency of 60 Hz with capacitance of 4.7μF and inductance of 550μH.
Leakage current specified at 11.1mA ensuring safety compliance.
Wide temperature range operation from -25°C to 100°C.
Durable metal housing with dimensions 135mm (H) x 320mm (D) x 80mm (L).
Power loss rated at 22 Watts with low resistance of 1.1mΩ.

Product Description

Schurter FMAC-091T-8010 is a high-performance FMAC ECO series RFI filter designed for 3-phase systems operating at 480V AC and 60Hz. This flange mounted filter with screw clamp terminals offers reliable suppression of interference voltage from power mains, primarily for photovoltaic and industrial uses.

Featuring a single-stage filter design, it delivers both symmetrical and asymmetrical attenuation across a wide frequency range from 10 kHz to 300 MHz. The compact but robust housing measures 135mm in height, 320mm in depth, and 80mm in length to fit tightly into control and power systems.

With a maximum current rating of 80A, the filter includes key electrical characteristics such as capacitance of 4.7μF and inductance of 550μH. It operates safely within a temperature range of -25°C to 100°C, with a minimal power loss of 22 Watts and a resistance of only 1.1mΩ, ensuring efficient power handling.

The leakage current is carefully controlled at 11.1mA to meet industry safety standards, specifically UL 1283 and IEC 60939. The filter series FMAC ECO is qualified under IEC/EN 60950 and is accepted worldwide at voltage ratings of 480 and 520V AC.

Flange mounting design for secure installation on electrical panels and systems. Applicable for industrial machinery, photovoltaic inverters, and power conditioning equipment. High attenuation performance reduces EMI in sensitive electronic setups.

Complies with global standards for Power Line Filters enhancing long-term reliability. Screw clamp terminals simplify electrical connections with secure fastening.

This product is ideal for use in industrial manufacturing, laboratory power system filtration, HVAC units, renewable energy installations, and commercial electrical equipment that require stringent EMI suppression.

Explore the Schurter FMAC ECO range for additional power line filter solutions with varied current ratings and configurations suitable for diverse electrical environments.
