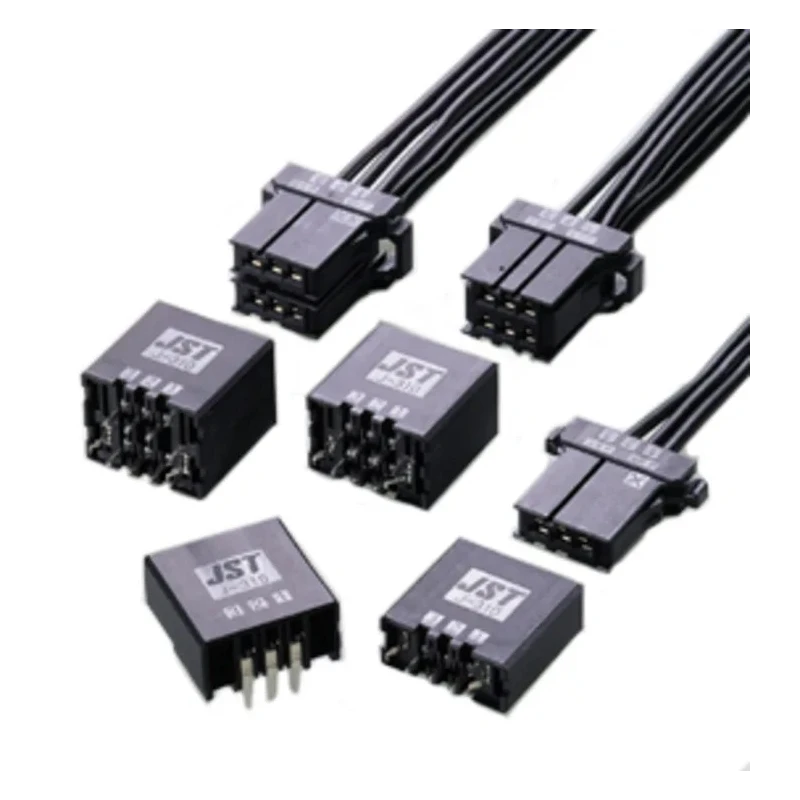

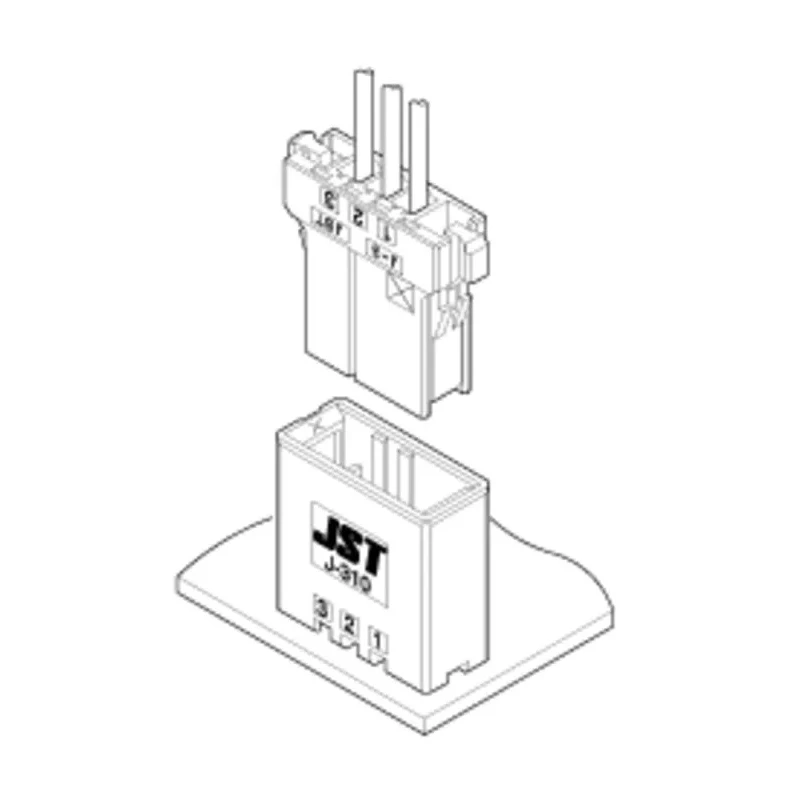

JST PCB Header JFA J300 Series Top Entry Through Hole, 5 Contacts, 3.81 mm Pitch, 1 Row, Shrouded B05B-F31SK-GGXR

Free Delivery in India | Lowest Global Shipping Charges

JST PCB Header JFA J300 Series Top Entry Through Hole, 5 Contacts, 3.81 mm Pitch, 1 Row, Shrouded B05B-F31SK-GGXR



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	Japan
Voltage	250V
Brand	JST
Orientation	Top Entry
Current	10.5A
Model	B05B-F31SK-GGXR
Mount Type	Through Hole
Housing Material	Fibreglass Reinforced Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	JFA J300
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Interfaces	Lances
Number of Rows	1
Pitch	3.81mm
Contact Plating	Gold
Number of Contacts	5
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Constructed with Fibreglass Reinforced Polybutylene Terephthalate housing for durability.
Features gold-plated copper alloy contacts for reliable conductivity.
Supports a maximum current of 10.5 A and operates up to 250 V.
Designed for solder termination with top entry orientation.
Includes a shrouded connector system providing protection and secure connection.
Operating temperature range spans from -55°C to 105°C for industrial reliability.
Suitable for wire-to-board connections in various industrial equipment.
Manufactured in Japan assuring quality standards.

Product Description

JST B05B-F31SK-GGXR PCB Header from the JFA J300 Series is a top entry, through-hole mount connector featuring 5 male contacts arranged in 1 row with a 3.81 mm pitch. It is engineered with a robust Fibreglass Reinforced Polybutylene Terephthalate housing, ensuring mechanical strength suitable for demanding industrial and electronic applications.

The connector includes gold-plated copper alloy contacts for excellent conductivity and corrosion resistance, supporting currents up to 10.5 A and voltages up to 250 V. Its design enables secure and reliable solder termination making it ideal for factory automation, heavy electrical machinery, and other equipment requiring dependable PCB connections.

This shrouded connector system offers enhanced protection against misalignment and electrical shorts, combined with a clear click feeling aided by housing lances. The operating temperature range from -55°C to 105°C makes it suitable for challenging environmental conditions commonly found in industrial, manufacturing, and automation sectors.

The B05B-F31SK-GGXR model is manufactured in Japan, adhering to high-quality standards to meet industrial demands. It finds extensive use in signal circuits and power supply circuits, facilitating reliable wiring and connections on printed circuit boards.

Fibreglass reinforced housing for enhanced mechanical stability. Gold-plated contacts ensure reliable electrical performance. Top entry through-hole mount design with 5 pins. Rated for 10.5 A current and 250 V voltage. Wide operating temperature range from -55°C to 105°C.

Shrouded for protection and secure fitment. Ideal for industrial automation and heavy machinery applications. Explore our wide range of PCB Headers and connectors for diverse electronics and electrical applications at EnvMart.
