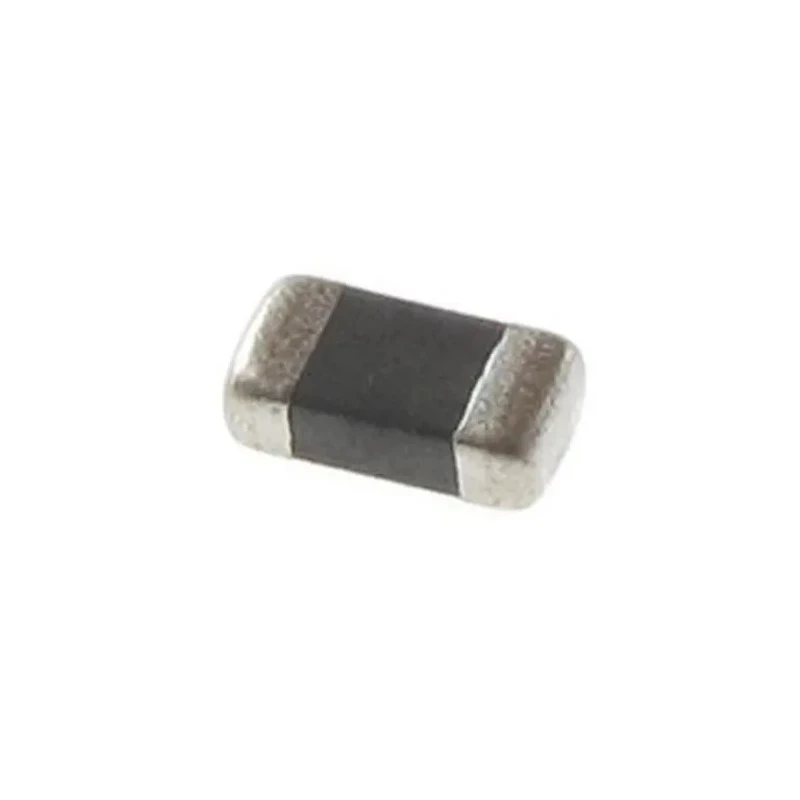

Murata Chip Ferrite Bead 0.8 mm 0603 Package, 220 Ohm Impedance at 100 MHz, 700mA Current Rating BLM18AG221SH1D

Murata BLM18AG221SH1D chip ferrite bead in 0603 package size offers 220 Ω impedance at 100 MHz and a current rating of 700mA. It is a solder-mount type bead utilizing ferrite material to provide effective EMI noise filtering in electronic circuits.

This ferrite bead measures 1.6 mm in length, 0.8 mm in height, and 0.8 mm in depth, making it compact for surface-mount technology (SMT) applications. It operates efficiently across a wide temperature range from -55°C to 125°C, suitable for robust industrial and automotive environments.

The bead complies with automotive standard AEC-Q200 and other industry norms like J-STD-002 and UL-94, ensuring reliability and safety in critical powertrain and safety systems. The nickel barrier construction of the external electrodes enhances soldering heat resistance and mechanical durability.

Designed to function as a nearly resistive element at noise frequencies, this ferrite bead reduces electromagnetic interference without affecting signal waveform integrity or causing resonance.

It is ideal for filtering noise in automotive, powertrain, safety, and general electronic circuits where stable signal and EMI suppression are required. This chip ferrite bead has a 0603 package size measuring 1.6 mm length by 0.8 mm height and depth.

Nickel barrier external electrodes provide excellent solder heat resistance. Operating temperature range is -55°C to 125°C. Peak current rating is 700mA with a max DC resistance of 0.25Ω. Impedance at 100 MHz is 220 Ω. Complies with AEC-Q200 automotive standard and other approvals.

Material : Ferrite. Manufactured in Japan under strict quality standards. This Murata Ferrite Bead is a reliable component for EMI filtering in industrial, automotive, and manufacturing electronics applications. Explore more electronic components and passive parts in our Electronics & Electricals category for your design and manufacturing needs.
