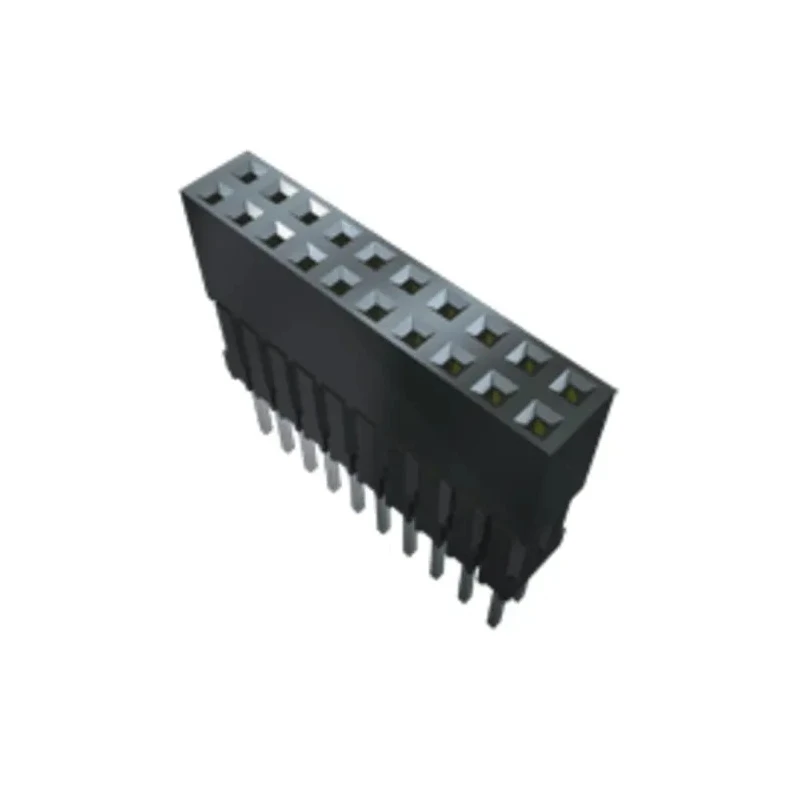

Samtec ESQ Series Straight Through Hole PCB Socket 40-Contact 2 Row 2.54 mm Pitch Solder ESQ-120-23-G-D
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 5.2A |
| Model | ESQ-120-23-G-D |
| Mount Type | Through Hole |
| Special Features | Standard and low insertion force contacts with .025" (0.635 mm) square tails for PC/104™ applications |
| Housing Material | Black Glass Filled Polyester |
| Contact Material | Bronze |
| Series | ESQ |
| Termination | Through-hole |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Connector System | Board-to-Board |
| Contact System | Tiger Buy™ |
Key Features
- Provides board-to-board connection with a 2.54 mm pitch.
- Supports 5.2 A current capacity.
- Features black glass filled polyester housing for durability.
- Designed for through hole mounting with straight orientation.
- Operates between -55°C and 125°C temperature range.
- Contacts made of bronze with gold plating for reliable conductivity.
- Tiger Buy™ contact system with standard and low insertion force options.
- Suitable for PC/104 applications with .025" (0.635 mm) square tails.
Product Description
Samtec ESQ-120-23-G-D is a high-quality PCB socket from the ESQ Series designed for straight through hole mounting. This 40-contact socket features two rows with a pitch of 2.54 mm and is suitable for board-to-board connectivity in electronic assemblies.
Constructed with a black glass filled polyester housing, it supports a current rating of 5.2 A and voltage up to 550 V. The contact material is bronze plated with gold to ensure excellent conductivity and corrosion resistance. The socket can operate reliably within a temperature range from -55°C to 125°C, making it suitable for various challenging operating environments.
The Tiger Buy™ contact system offers both standard and low insertion force contacts with .025 inch (0.635 mm) square tails, optimized specifically for PC/104 applications and providing secure and durable connections. The termination method is solder through-hole, facilitating robust mechanical and electrical mounting on printed circuit boards.
Board-to-board connector designed with 40 contacts arranged in 2 rows. 2.54 mm pitch spacing for precise alignment and compatibility. Black glass filled polyester housing ensures mechanical strength and reliability. Gold plated bronze contacts provide enhanced conductivity and durability.
Supports continuous operation in temperature conditions from -55°C to 125°C. Rated to handle up to 5.2 A current and 550 V voltage. Solder termination for stable connection on PCBs. Ideal for industrial, laboratory, and electronics manufacturing use cases.
Manufactured in the United States adhering to quality standards.
This PCB socket is ideal for applications involving industrial electronics, power connectors, and control systems requiring reliable board-to-board connections. Its robust construction and performance characteristics make it suitable for demanding environments including manufacturing equipment, telecommunications, and automotive electronics.
Explore more from the Samtec ESQ series PCB Sockets to meet diverse connectivity requirements across multiple sectors.
