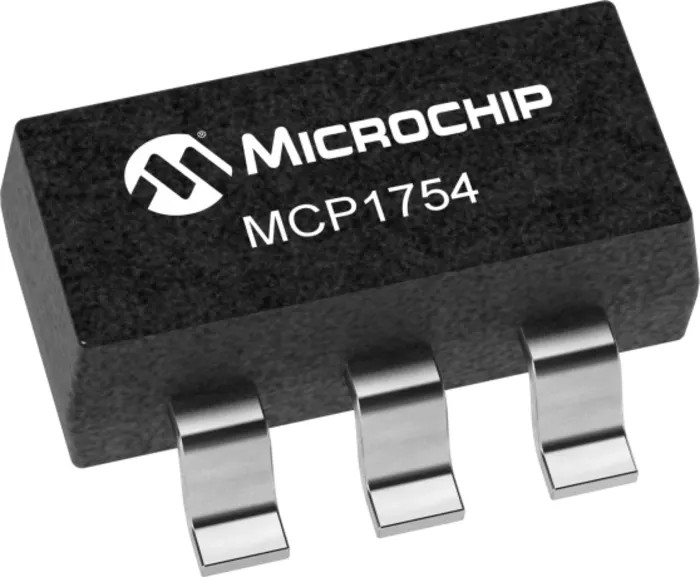

Microchip Low Dropout Voltage Regulator 16V 150mA Quiescent Current 56mA SOT-223 5-Pin MCP1754T-3302E/OT
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators Microchip MCP1754T-3302E/OT, Voltage Regulator 16V SOT-223 5-Pin RS S |
| Brand | Microchip |
| Height | 1.45mm |
| Length | 2.8mm |
| Model | MCP1754T-3302E/OT |
| Width | 2.8mm |
| Mount Type | Surface |
| Series | MCP1754 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-223 |
| Maximum Input Voltage | 16V |
| Quiescent Current | 56mA |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 3.6V |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
Key Features
- This voltage regulator has a low quiescent current of 56μA, making it energy-efficient for battery-powered applications.
- Supports input voltage range from 3.6V to 16V suitable for multi-cell battery and 12V mobile applications.
- Features true current fold-back for enhanced protection during overload conditions.
- Provides short-circuit protection and over-temperature shutdown to improve device reliability.
- Automatically passes Automotive AEC-Q100 reliability testing for automotive standard compliance.
- The device package size is 2.8mm x 2.8mm x 1.45mm, optimized for surface mounting on PCBs.
- RoHS compliant, ensuring environmental and safety standards adherence.
- Operates reliably within temperature range from -40°C to +125°C.
Product Description
Microchip MCP1754T-3302E/OT is a CMOS low-dropout voltage regulator designed to deliver a load current up to 150 mA with a low quiescent current of 56μA, perfect for applications demanding energy efficiency and compact footprint.
It operates within an input voltage range of 3.6 V to 16 V making it ideal for battery-powered systems such as four to six primary cell batteries, 12 V automotive electrical systems, and lithium-ion powered devices.
The device incorporates protective features including current fold-back, short-circuit protection, shutdown input, and over-temperature protection to enhance safety and reliability in industrial and automotive environments.
The regulator is packaged in a small SOT-223 5-pin form factor with dimensions of 2.8 mm length, 2.8 mm width and 1.45 mm height, facilitating surface mounting on PCBs in space-constrained applications.
Certified to meet the Automotive Electronic Council’s stringent AEC-Q100 standards, MCP1754T-3302E/OT is suitable for automotive, industrial, communications, and consumer electronics power management applications.
Low quiescent current reduces battery drain in portable devices. True current fold-back protects against wiring harness faults. Over-temperature and short-circuit protections ensure safe operation. Compact SOT-223 package optimizes board space.
RoHS compliance assures environmental compliance. Wide operating temperature rating supports harsh environments.
This Voltage Regulator is widely applicable in automotive power systems, communications equipment, consumer electronics, industrial controls, and battery-powered devices where efficient power regulation and protection features are critical.
Explore more products in the Power Management IC category on EnvMart to find compatible components for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 16V.
This voltage regulator has a low quiescent current of 56μA, making it energy-efficient for battery-powered applications.
The SOT-223 package has dimensions of 2.8mm in length, 2.8mm in width, and 1.45mm in height.
It operates reliably within a temperature range from -40°C to +125°C.
The regulator incorporates true current fold-back, short-circuit protection, and over-temperature shutdown for enhanced safety and reliability.
Yes, it is certified to meet the Automotive Electronic Council’s AEC-Q100 standards for automotive applications.
The minimum input voltage for this model is 3.6V.
This unit is designed for surface mounting on PCBs.
It is suitable for automotive power systems, communications equipment, consumer electronics, industrial controls, and battery-powered devices.
The MCP1754T-3302E/OT has a pin count of 5.
This voltage regulator is RoHS compliant, ensuring adherence to environmental and safety standards.
This model belongs to the MCP1754 series of voltage regulators.
