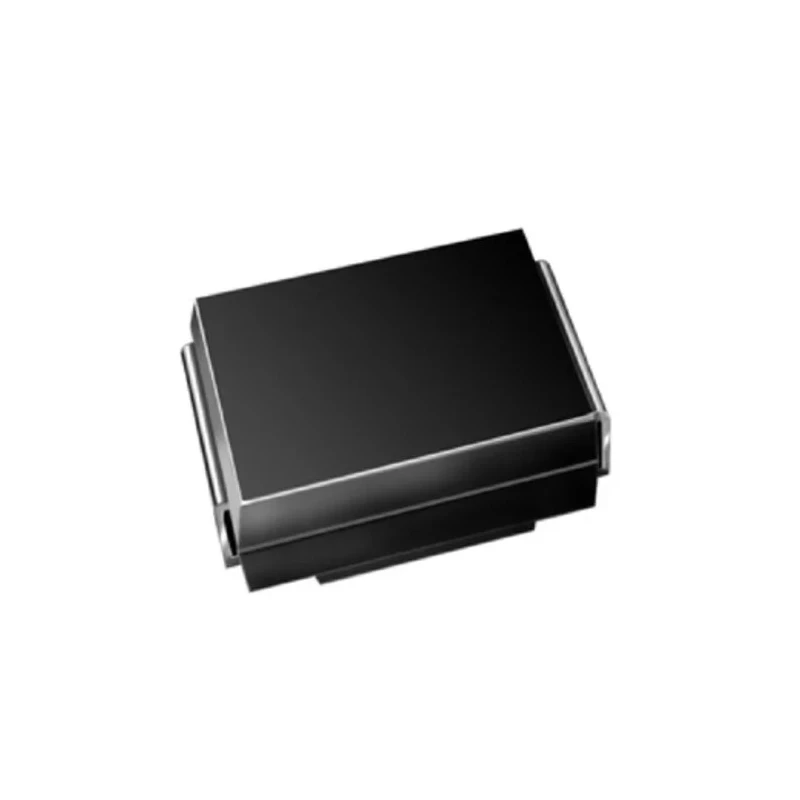

Vishay Surface Mount Power Zener Diode 24 V 1.5 W 5% Tolerance 2-Pin DO-214AA SMZJ3798BHM3_A/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.44mm |
| Length | 4.57mm |
| Model | SMZJ3798BHM3_A/H |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 1.5W |
| Diode Configuration | Single |
| Test Current It | 15.6mA |
| Maximum Reverse Leakage Current | 5μA |
| Nominal Zener Voltage Vz | 24V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 19Ω |
Key Features
- Designed for voltage regulation with a 5% tolerance to maintain consistent voltage levels.
- Utilizes a glass passivated chip junction for durability and stability.
- Low Zener impedance of 19 ohms improving regulation performance.
- Surface mount package ideal for automated PCB assembly and low profile applications.
- Operates over a wide temperature range from -55°C to 150°C suitable for industrial environments.
- Complies with RoHS standards and meets AEC-Q101 automotive reliability standards.
- Features a maximum reverse leakage current of 5 μA ensuring minimal leakage losses.
- Pin count of 2 simplifies circuit integration.
Product Description
Vishay SMZJ3798BHM3_A/H surface mount power Zener diode is engineered to provide reliable voltage regulation in sensitive electronic circuits and industrial applications. It features a nominal Zener voltage of 24 V with a precision tolerance of ±5%, ensuring steady voltage levels even under varying electrical conditions.
The diode is housed in a low-profile DO-214AA package, perfectly suited for automated surface mount technology (SMT) assembly processes, allowing for compact, efficient PCB designs. It includes a single element per chip with a glass passivated junction, which enhances thermal stability and device longevity.
Capable of dissipating up to 1.5 W of power, this diode supports operation across a broad temperature range from -55°C to 150°C, making it ideal for rugged industrial environments and automotive applications compliant with the AEC-Q101 standard.
The low Zener impedance value of 19 ohms contributes to better voltage regulation characteristics and efficiency in the power circuitry. Additionally, its maximum reverse leakage current is limited to 5 μA, minimizing energy loss and enhancing performance.
This diode is primarily used in industrial electronics, voltage regulation modules, protection circuits, and automotive systems where stable voltage and high reliability are critical.
Designed for voltage regulation with a 5% tolerance to maintain consistent voltage levels. Utilizes a glass passivated chip junction for durability and stability. Low Zener impedance of 19 ohms improving regulation performance.
Surface mount package ideal for automated PCB assembly and low profile applications. Operates over a wide temperature range from -55°C to 150°C suitable for industrial environments. Complies with RoHS standards and meets AEC-Q101 automotive reliability standards.
Features a maximum reverse leakage current of 5 μA ensuring minimal leakage losses. Pin count of 2 simplifies circuit integration. Explore more Vishay semiconductor components and Zener Diodes on EnvMart for your electronics manufacturing and design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 24 V.
This model has a maximum power dissipation of 1.5 W.
It operates over a wide temperature range from -55°C to 150°C.
This diode features a pin count of 2, which simplifies circuit integration.
The diode is housed in a DO-214AA package, suitable for surface mount applications.
It meets the AEC-Q101 automotive reliability standards.
The maximum Zener impedance is 19 ohms, which improves regulation performance.
This diode is primarily used for voltage regulation in industrial electronics and automotive systems.
The height of this model is 2.44 mm and the length is 4.57 mm.
Yes, it complies with RoHS standards.
It has a single diode configuration per chip.
