3M 2500 Series Straight Surface PCB Header, 16 Contacts, 2.54 mm Pitch, 2 Row, Shrouded N2516-6V0C-RB-WE

Free Delivery in India | Lowest Global Shipping Charges

3M 2500 Series Straight Surface PCB Header, 16 Contacts, 2.54 mm Pitch, 2 Row, Shrouded N2516-6V0C-RB-WE



Category PCB Header Brand 3M Condition New

Specifications

Country of Origin	India
Voltage	1000V
Brand	3M
Orientation	Straight
Current	2A
Model	N2516-6V0C-RB-WE
Mount Type	Surface
Contact Material	Copper Alloy
Series	2500
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	16
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board, Wire-to-Board
High-temp insulation in accordance with JEDEC J-STD-020C requirements	withstands remelt temperatures and lead-free processes up to 260°C
UL No.	E68080, JEDEC J-STD-020C

Key Features

Features a straight orientation for reliable surface mounting.
Offers 16 contacts and 2 rows for efficient connectivity.
Designed with a 2.54 mm pitch for standard PCB compatibility.
Shrouded enclosure ensures enhanced protection and precise mating.
Copper alloy contacts plated with gold for excellent conductivity and durability.
Rated for 2A current and up to 1000V voltage operation.
High-temperature insulation meets JEDEC J-STD-020C standards, suitable for lead-free reflow up to 260°C.
Pick-up hood in ESD conductive material provides safety during assembly.

Product Description

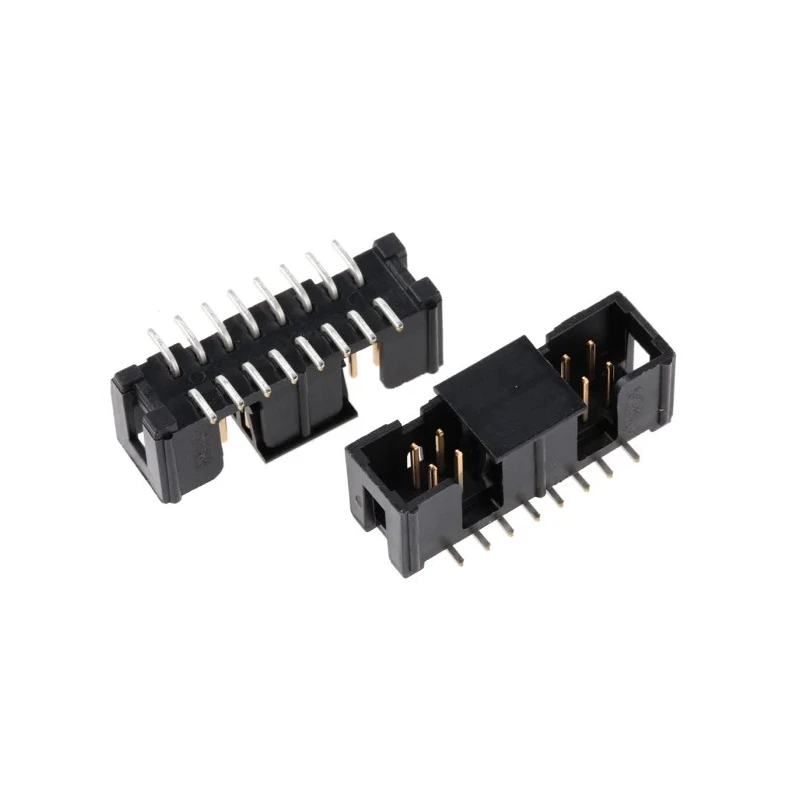

The 3M N2516-6V0C-RB-WE is a straight surface mount PCB header from the widely used 2500 Series, featuring 16 contacts in 2 rows, with a 2.54 mm pitch and shrouded construction. This connector is engineered for robust, high-performance board-to-board and wire-to-board connections in demanding electronic applications.

Its straight orientation allows easy integration and reliable surface mounting on printed circuit boards, providing a precise and secure fit. The shrouded design prevents misalignment and ensures accurate mating, while also protecting the contacts from dust and mechanical stress.

The contact assembly utilizes copper alloy with gold plating, offering low contact resistance, excellent conductivity, and superior durability against corrosion and wear. With a current rating of 2A and voltage tolerance up to 1000V, it supports a broad range of signal and power transmission requirements.

This connector is built to withstand harsh environments, featuring high-temperature insulation compliant with JEDEC J-STD-020C, capable of lead-free processes and reflow soldering up to 260°C. The pick-up hood is made of ESD conductive material, and contacts are visible for inspection after soldering, simplifying production and quality control.

The N2516-6V0C-RB-WE's termination method is solder, with male contact gender and surface mount type, ensuring compatibility with industry-standard PCB layouts. The center slot polarization reduces insertion errors and accelerates assembly times.

Widely used in industrial automation, instrumentation, medical devices, consumer electronics, communications, and data hardware, this connector guarantees cost-effective and reliable connectivity solutions. Applications include signal and data interfaces, power connections, and modular assembly systems.

Compliance with UL No. E68080 and JEDEC J-STD-020C ensures international safety and performance standards are met.

Engineers looking for high-quality, versatile PCB headers for modern electronics can browse more 3M connectivity solutions and related PCB Headers within the Electronics & Electricals hardware category.
