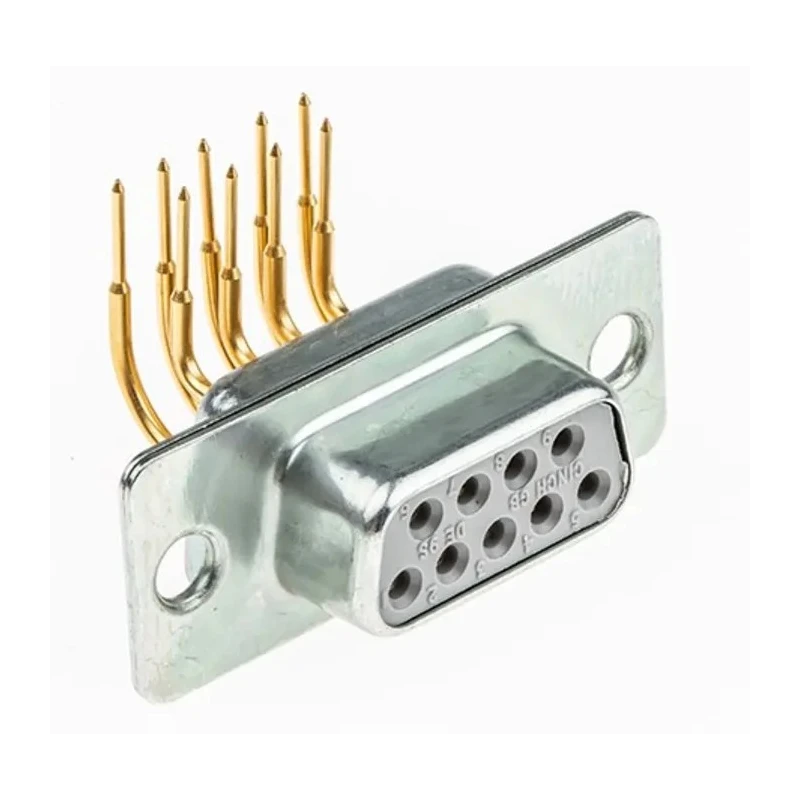

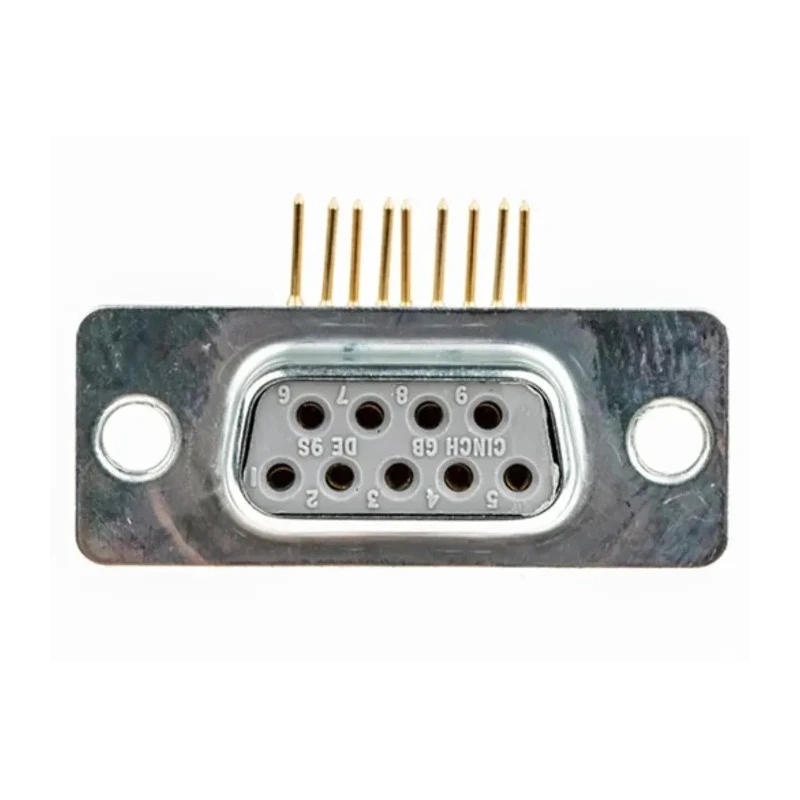

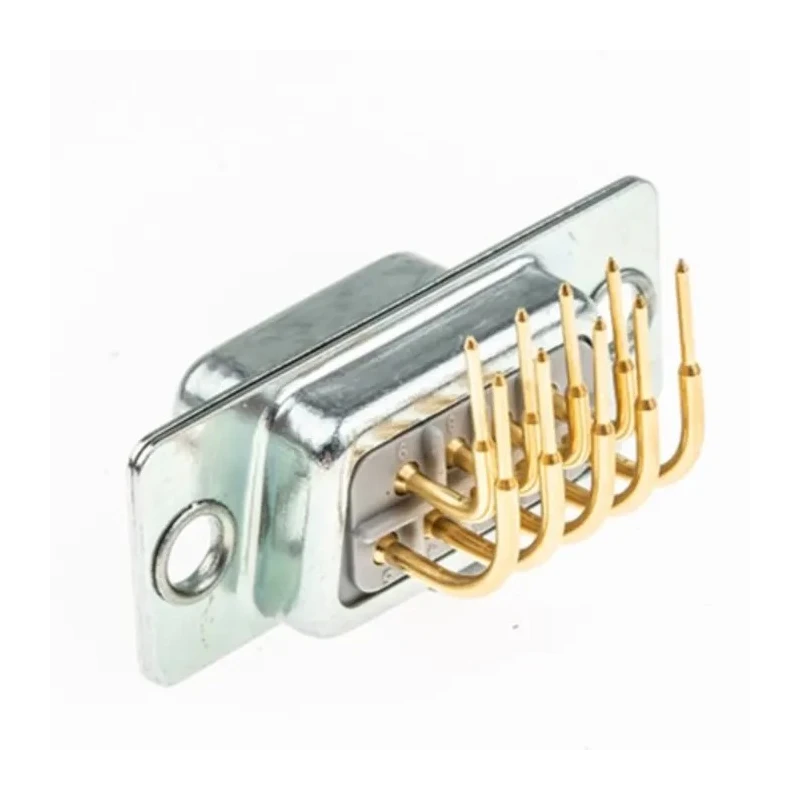

RS PRO 9 Way Right Angle Through Hole D-Sub Connector Female 2.74 mm Pitch 750V 5A 472-685
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 750V |
| Brand | RS PRO |
| Orientation | Right Angle |
| Current | 5A |
| Model | 472-685 |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Copper Alloy |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.74mm |
| Contact Plating | Gold |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Connector Gender | Female |
| D-Sub Shell Size | D |
| RS PRO 9 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector FemaleBrand | RS PRO |
Key Features
- Features nine contact points for secure electrical connections.
- Right angle orientation allows easy PCB mounting in constrained spaces.
- Through-hole mount type ensures strong mechanical and electrical attachment.
- Connector gender is female, suitable for socket applications.
- Constructed from polyethylene terephthalate (PET) housing for high temperature and moisture resistance.
- Gold plated copper alloy contacts provide corrosion resistance and excellent conductivity.
- Supports a voltage rating up to 750 volts for robust performance.
- Rated for a current of 5 amperes to handle moderate power loads safely.
Product Description
RS PRO 472-685 is a 9 Way Right Angle Through Hole D-Sub Connector Female designed for secure and reliable electronic connections on printed circuit boards (PCBs). Featuring a right angle orientation and through-hole mount type, it is ideal for side or rear panel installations in devices such as laptops, monitors, and televisions. The connector offers excellent electrical performance with copper alloy contacts plated in gold to prevent corrosion and enhance signal integrity.
The polyethylene terephthalate (PET) housing material provides resistance to moisture and high temperatures, enabling safe operation in demanding industrial and military applications. This D-sub connector supports a voltage rating up to 750 V and current rating of 5 A, certified to meet high operating temperature demands from -55°C up to 125°C, ensuring dependable use in harsh environments.
Its 2.74 mm pin pitch and 9 contact number make it compatible with standard D-sub applications in electronics assembly and instrumentation. Intended for industrial, laboratory, manufacturing, and military equipment use, it facilitates reliable signal and power transmission.
Features nine contact points for secure electrical connections. Right angle orientation allows easy PCB mounting in constrained spaces. Through-hole mount type ensures strong mechanical and electrical attachment. Connector gender is female, suitable for socket applications.
Constructed from polyethylene terephthalate (PET) housing for high temperature and moisture resistance. Gold plated copper alloy contacts provide corrosion resistance and excellent conductivity. Supports a voltage rating up to 750 volts for robust performance.
Rated for a current of 5 amperes to handle moderate power loads safely. Operating temperature ranges from -55°C to 125°C for use in harsh environments. 2.74 mm pitch ensures compatibility with standard D-Sub Connector products.
Use this RS PRO connector in electronics manufacturing, test equipment, industrial instrumentation, and military systems where durable and stable connections are essential. It offers a high-quality solution for PCB connection needs with assured reliability.
Explore more connectors and electronic components within the RS PRO range and general Power Connectors category on EnvMart for comprehensive industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a current of 5 amperes, allowing it to handle moderate power loads safely.
The pin pitch for this unit is 2.74 mm, ensuring compatibility with standard D-Sub applications.
This model utilizes a through-hole mount type, ensuring strong mechanical and electrical attachment.
The housing is constructed from polyethylene terephthalate (PET), providing resistance to moisture and high temperatures.
The contacts are made from copper alloy and are gold plated to enhance conductivity and prevent corrosion.
The connector gender is female, making it suitable for socket applications.
It is intended for use in electronics manufacturing, test equipment, industrial instrumentation, and military systems.
The D-Sub shell size for this connector is classified as size D.
This model features a solder termination type, which is common for secure PCB connections.
