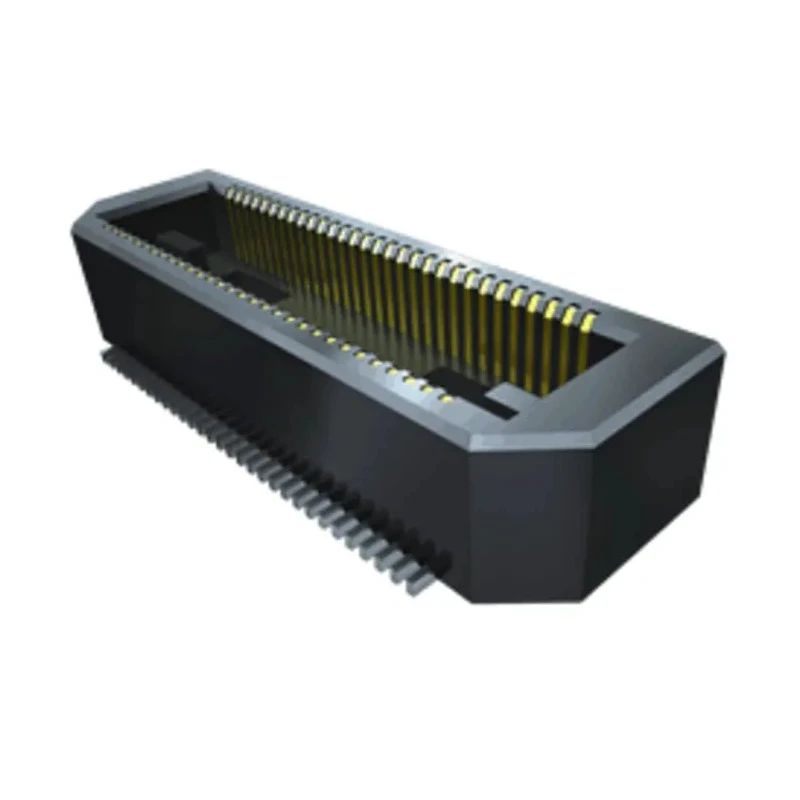

Samtec BTH Series Straight Surface PCB Header, 100 Contacts, 0.5 mm Pitch, 2 Row, Shrouded BTH-050-01-L-D-A

Free Delivery in India | Lowest Global Shipping Charges

Samtec BTH Series Straight Surface PCB Header, 100 Contacts, 0.5 mm Pitch, 2 Row, Shrouded BTH-050-01-L-D-A

Name: Samtec BTH Series Straight Surface PCB Header, 100 Contacts, 0.5 mm Pitch, 2 Row, Shrouded BTH-050-01-L-D-A
Brand: Samtec
SKU: 216168
Price: 5.47 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	United States
Voltage	275V
Brand	Samtec
Orientation	Straight
Current	2A
Model	BTH-050-01-L-D-A
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	BTH
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.5mm
Contact Plating	Gold
Number of Contacts	100
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Features a shrouded design for secure connectivity.
Constructed with phosphor bronze contacts plated in gold for reliable conductivity.
Housing made from durable liquid crystal polymer for high temperature resistance.
Operates within a temperature range of -55°C to 125°C.
Supports 2 A current and 275 V voltage for versatile electronic applications.
Designed with a straight orientation and surface mount type for efficient PCB assembly.
Includes standard alignment pin feature ensuring precise placement.
Manufactured in the United States, meeting rigorous quality standards.

Product Description

Samtec BTH-050-01-L-D-A is a high-quality straight surface mount PCB header from the BTH series, featuring 100 male contacts arranged in 2 rows with a 0.5 mm pitch. This shrouded connector is designed for board-to-board applications providing reliable and stable connections.

The header comprises phosphor bronze contacts with gold plating to ensure excellent electrical performance and corrosion resistance. The housing is fabricated from liquid crystal polymer, offering robust thermal stability and mechanical strength, suitable for demanding industrial environments.

Operable within a temperature range of -55°C to 125°C, this PCB header supports a current rating of 2 A and a maximum voltage of 275 V, making it ideal for a wide range of electronics assembly tasks including industrial machinery, laboratory equipment, and electronic device manufacturing.

Its surface mount design with a straight orientation and shrouded protection enhances the durability and precision of the connection. Additionally, the standard alignment pin feature facilitates accurate positioning during PCB assembly.

Manufactured in the United States, this Samtec PCB header guarantees high quality and compliance with industrial standards, suitable for electronic components, power and connectors, and board-to-board connector systems.

Features a shrouded design for secure connectivity. Constructed with phosphor bronze contacts plated in gold for reliable conductivity. Housing made from durable liquid crystal polymer for high temperature resistance. Operates within a temperature range of -55°C to 125°C.

Supports 2 A current and 275 V voltage for versatile electronic applications. Designed with a straight orientation and surface mount type for efficient PCB assembly. Includes standard alignment pin feature ensuring precise placement.

Manufactured in the United States, meeting rigorous quality standards.
