Semikron Danfoss Dual Thyristor Module 1200 V 95 A 150 mA 2 kA 1.65 V SKKT 92B12 E

Free Delivery in India | Lowest Global Shipping Charges

Semikron Danfoss Dual Thyristor Module 1200 V 95 A 150 mA 2 kA 1.65 V SKKT 92B12 E

Name: Semikron Danfoss Dual Thyristor Module 1200 V 95 A 150 mA 2 kA 1.65 V SKKT 92B12 E
Brand: Semikron Danfoss
SKU: 216056
Price: 54.37 USD
Availability: InStock



Category Thyristor Module Brand Semikron Danfoss Condition New

Specifications

Country of Origin	Germany
Brand	Semikron Danfoss
Model	SKKT 92B12 E
Mount Type	Panel
Maximum Operating Temperature	125°C
Package Type	SEMIPACK1
Minimum Operating Temperature	-40°C
Pin Count	7
Rated Average On-State Current Irms	95A
Thyristor Type	SCR
Repetitive Peak Reverse Voltage VDRM	1200V
Surge Current Rating	2kA
Maximum Gate Trigger Current Igt	150mA
Maximum Holding Current Ih	250mA
Maximum Gate Trigger Voltage Vgt	3V
Peak On-State Voltage	1.65V
Repetitive Peak Off-State Current	20mA

Key Features

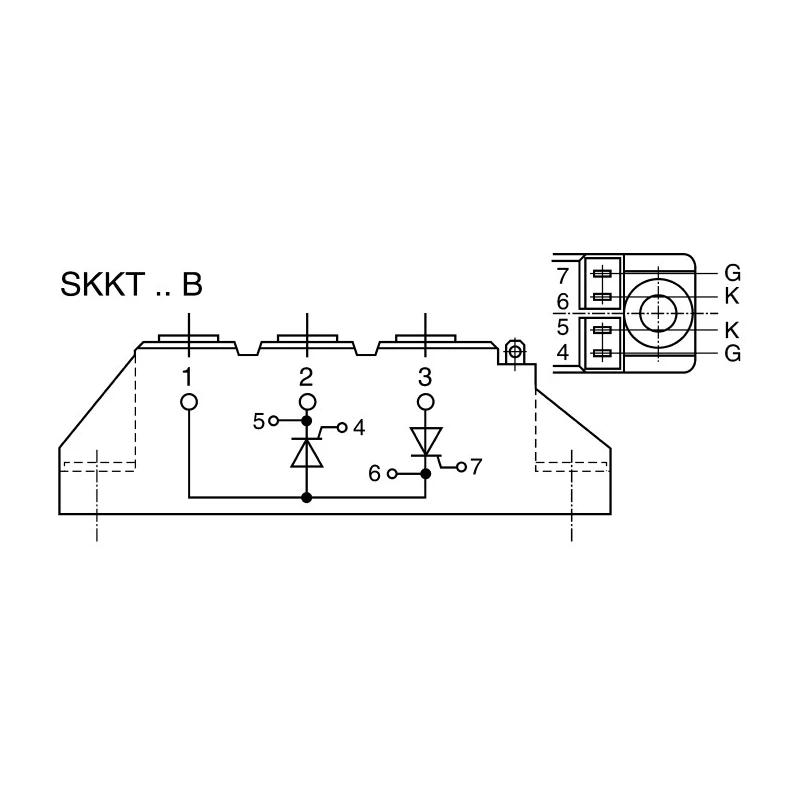

Dual thyristor modules with encapsulated, electrically isolated base plate.
Suitable for use in battery chargers, welders, plating equipment, and regulated power supplies.
Features a maximum gate trigger current of 150 mA and peak on-state voltage of 1.65 V.
Operates within -40°C to 125°C temperature range ensuring durability in harsh environments.
Panel mount type with 7-pin configuration for easy integration.
Repetitive peak reverse voltage of 1200 V with surge current handling capacity of 2 kA.
Designed according to UL recognised component standards and manufactured in Germany.

Product Description

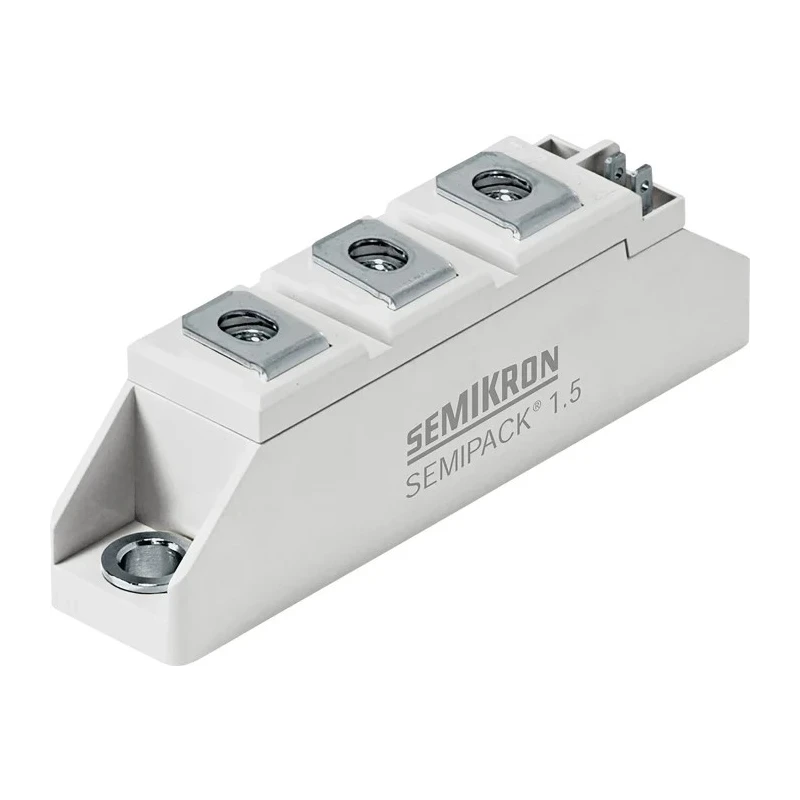

Semikron Danfoss SKKT 92B12 E is a high-performance dual thyristor module designed for demanding industrial and electronic applications. Featuring a 1200 V repetitive peak reverse voltage and 95 A rated average on-state current, this SCR-based module ensures reliable switching under heavy load conditions.

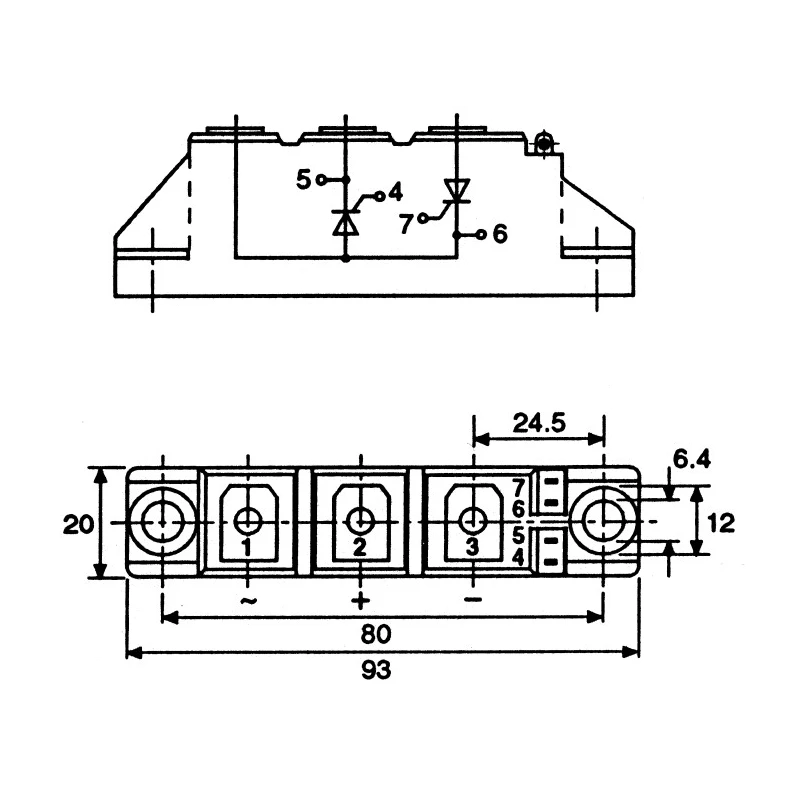

The thyristor module employs the SEMIPACK 1 package with a compact 7-pin design optimized for panel mounting, providing excellent thermal and electrical isolation. With a surge current rating of 2 kA and a low peak on-state voltage of 1.65 V, it delivers efficient power handling capacity suitable for battery charging circuits, welding machines, plating equipment, regulated power supplies, and speed and temperature control systems.

The electrical characteristics such as a maximum gate trigger current of 150 mA and a holding current of 250 mA ensure precise trigger and stable operation during use. The unit functions reliably over a wide temperature range from -40°C up to 125°C, making it adaptable to various industrial environments.

Manufactured in Germany, this module complies with UL recognized component standards (though it does not hold automotive certification) and represents a robust choice for engineers requiring trustworthy power semiconductors.

Dual thyristor module encapsulated with isolated base plate for safety and reliability. High surge current capability supports temporary overload conditions. Low gate trigger current improves control sensitivity. Wide operating temperature range for industrial use.

Panel mount package with 7 pins for straightforward assembly. Suitable for welding, battery charging, plating, and power regulation. German-made quality with UL recognition for enhanced assurance.

This Semikron Danfoss SKKT 92B12 E module fits within the electronics and electricals category specializing in semiconductor Thyristor Modules. It is an essential component for industrial equipment manufacturers and electronic system integrators who require reliable, high current, and high voltage switching capabilities.
