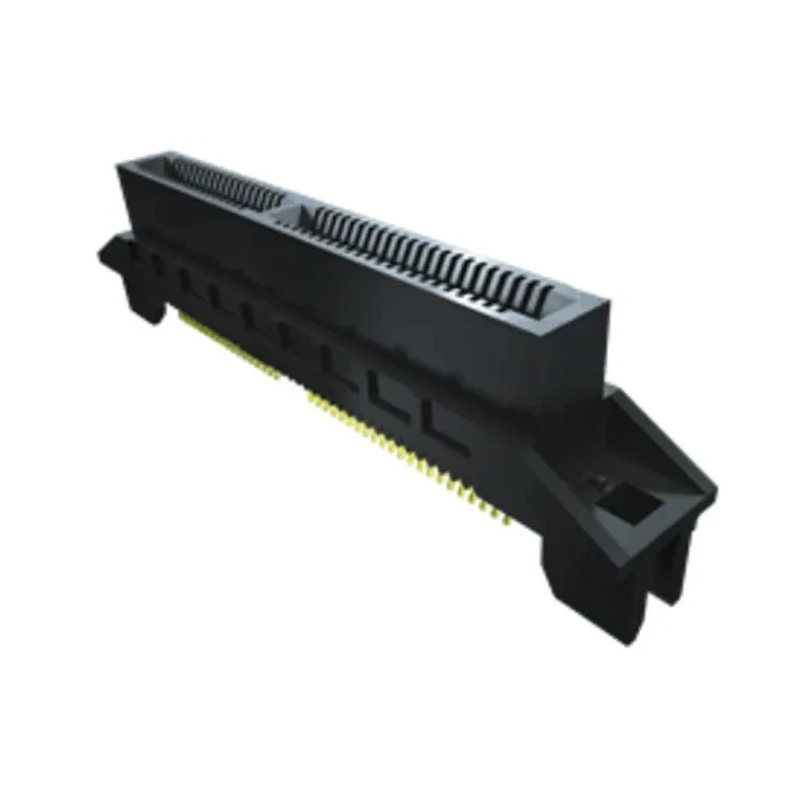

Samtec MEC8-EM Series Straight Edge Connector Female 20-Contacts 0.8 mm Pitch 2 Row Solder

Free Delivery in India | Lowest Global Shipping Charges

Samtec MEC8-EM Series Straight Edge Connector Female 20-Contacts 0.8 mm Pitch 2 Row Solder

Name: Samtec MEC8-EM Series Straight Edge Connector Female 20-Contacts 0.8 mm Pitch 2 Row Solder
Brand: Samtec
SKU: 215870
Price: 8.42 USD
Availability: InStock



Category Edge Connector Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	265V ac
Brand	Samtec
Orientation	Straight
Current	2.2A
Model	MEC8-EM
Mount Type	Edge
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	MEC8-EM
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.8mm
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Female
Connector Gender	Female
Card Type	Edge
Card Thickness	1.6mm

Key Features

This connector supports a maximum current of 2.2A for efficient power transmission.
It features gold-plated phosphor bronze contacts for low resistance and durability.
The connector is designed for 1.6 mm thick cards and offers solder termination type.
Operating temperature range is from -55°C to 125°C, suitable for various environments.
Liquid crystal polymer housing provides mechanical stability and insulation.
This product supports a voltage rating of 265V AC for high voltage applications.
It has a straight orientation to facilitate easy installation and connection.
Double row design accommodates up to 140 pins in the series.

Product Description

Samtec MEC8-EM MEC8-110-02-L-D-EM2 is a straight Edge Connector female featuring 20 contacts with a fine 0.8 mm pitch and a two-row layout, designed for edge mounting in electronic applications.

It is engineered to support a maximum current of 2.2A and withstand voltages up to 265V AC, making it suitable for a wide range of industrial, electronic, and power distribution uses.

The phosphor bronze contacts are gold-plated to ensure low contact resistance and long-lasting reliability. The solder termination type simplifies secure PCB attachment. The housing is made from liquid crystal polymer material, offering excellent mechanical strength and electrical insulation. Card thickness compatibility is 1.6 mm.

With an operating temperature range from -55°C to 125°C, this connector is capable of performing in harsh environmental conditions often seen in industrial and manufacturing settings.

The connector's straight orientation and edge mount design facilitate compact assembly on PCBs and straightforward integration in automation, industrial electronics, and control systems.

Maximum current rating of 2.2A for effective electrical performance. Gold-plated phosphor bronze contacts ensure corrosion resistance and durability. Compatible with 1.6 mm thick cards, supporting standard edge mounting.

Operating temperature range from -55°C to 125°C for versatile environmental use. Liquid crystal polymer housing for enhanced durability and insulation. Rated voltage of 265V AC suitable for power distribution applications.

Straight orientation design for easy PCB integration. Two-row configuration accommodates multiple connections in a compact footprint. 0.8 mm pitch supports high-density PCB layouts. No specific industrial standards or approvals listed.

This connector series provides a reliable, high-performance solution for electronic assembly in industrial, manufacturing, and commercial applications. Explore more quality electronic connectors and components at EnvMart to meet your project needs.
