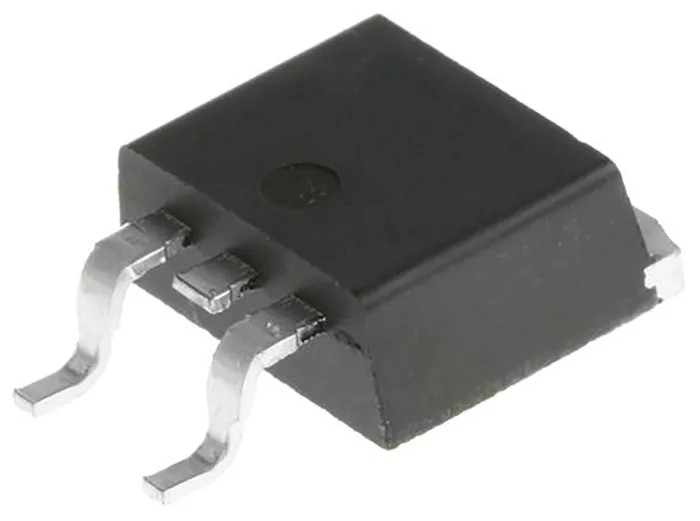

Wolfspeed Schottky Diode Single 3-Pin TO-263 Package 600 V 8 A Z-Rec Series C3D08060G

Wolfspeed C3D08060G is a silicon carbide (SiC) Schottky diode engineered for high efficiency and high voltage applications, offering a continuous forward current rating of 8 A and a peak repetitive reverse voltage of 600 V in a compact 3-pin TO-263 package.

Leveraging advanced Wolfspeed Z-Rec SiC technology, this diode exhibits extremely fast switching with zero reverse recovery current and voltage, reducing power losses in switch-mode power supplies, inverters, and power factor correction (PFC) circuits. The diode operates reliably over a wide temperature range from -55°C to 175°C, making it suitable for industrial, automotive, and power electronics applications demanding robust thermal management.

Its peak non-repetitive forward surge current capacity of 220 A provides protection during transient conditions. The package dimensions are optimized for surface mount assembly, measuring 11.05 mm in length, 10.31 mm in width, and 4.57 mm in height, facilitating compact designs. Compliance with AEC-Q101 automotive standard certifies suitability for automotive electronics.

Surface mount package type TO-263 supporting compact high power designs. Maximum continuous forward current: 8 A for high-load applications. Peak reverse voltage: 600 V ensures operation under high voltage stress. Zero reverse recovery current enables reduced switching losses.

Wide operating temperature range from -55°C up to 175°C. High surge capability of 220 A for transient events. Employs Wolfspeed’s Z-Rec series SiC technology for improved efficiency. Package dimensions length 11.05 mm, width 10.31 mm, height 4.57 mm.

Automotive grade device compliant with AEC-Q101 standard.

This Wolfspeed Schottky diode is ideal for industrial power supplies, renewable energy inverters, electric vehicle charging stations, and other applications requiring efficient high voltage rectification and fast switching performance.
