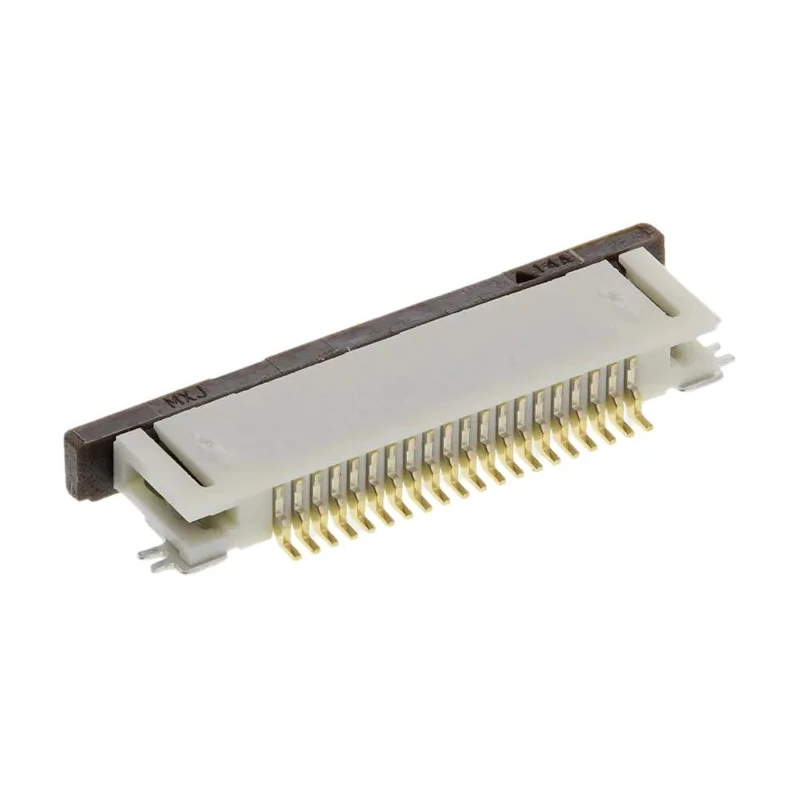

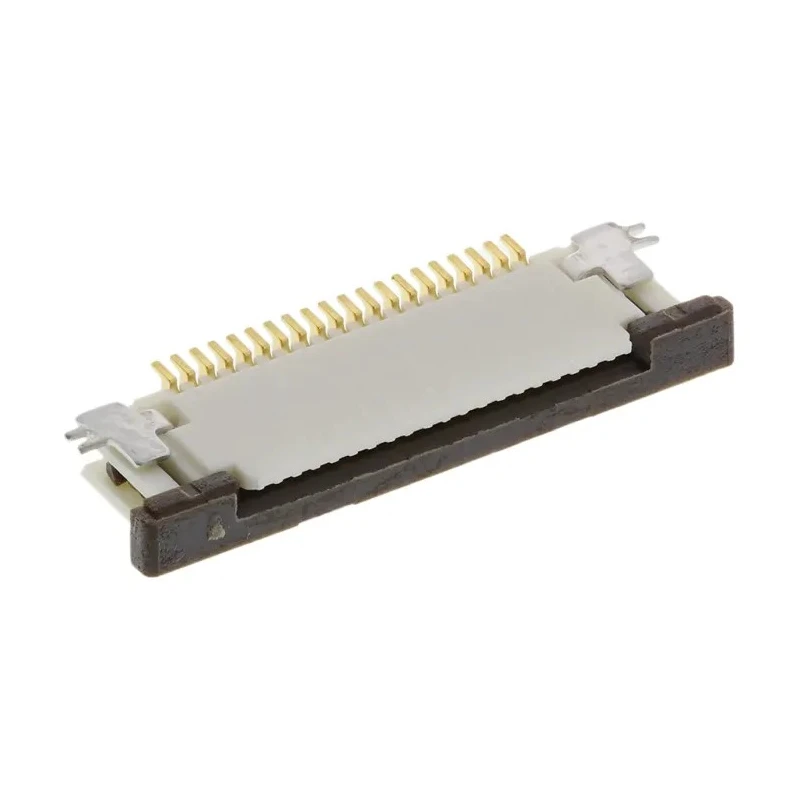

Molex 0.5 mm Pitch 20 Way Right Angle Female FPC Connector, Surface Mount, Solder Termination 52746-2071

Molex 52746-2071 is a high-quality 0.5 mm Pitch 20 Way Right Angle Female FPC Connector specially designed for surface mounting applications with solder termination. This connector belongs to the 52746 series and is built to support flexible printed circuits (FPCs) with a bottom contact position and easy-on, zero insertion force (ZIF) mechanism that reduces assembly stress and prolongs connector life.

The female connector features phosphor bronze contact material plated with gold over nickel to ensure reliable electrical performance and resistance to corrosion. Its nylon housing provides excellent mechanical strength and electrical insulation. With a locking mechanism included, this connector ensures secure mating and prevents accidental disengagement.

Rated for a maximum voltage of 50 V and a current capacity of 500 mA, it is suitable for low voltage and low current electronic devices. The connector’s operating temperature ranging from -20°C to 85°C enables it to perform effectively in a variety of industrial, electronics manufacturing, and commercial environments.

The right-angle orientation allows compact PCB designs benefiting applications that require space-saving connections. This 1-row connector supports 20 contacts with a pitch of 0.5 mm, which is ideal for high-density flexible circuit interconnections in consumer electronics, telecommunications equipment, and computing devices.

Compact 0.5 mm pitch design for high-density circuits. Right angle female connector with 20 contacts. Gold over nickel plating for enhanced conductivity and corrosion resistance. Zero insertion force (ZIF) mechanism for easy mating and longevity.

Durable nylon housing ensures insulation and mechanical protection. Operates reliably from -20°C to 85°C. Supports surface mount technology with solder termination. Includes locking mechanism for secure connections.

This Molex FPC Connector is essential for electronics manufacturing, automotive electronics, instrumentation, and other applications that require reliable, space-efficient flexible circuit connections. Ensure high production efficiency and superior electronic performance by integrating this connector into your designs.
