TDK Flange EMC Filter 6 A 250V ac/dc 60Hz Tab 1 Phase B84111F0000B060

Free Delivery in India | Lowest Global Shipping Charges

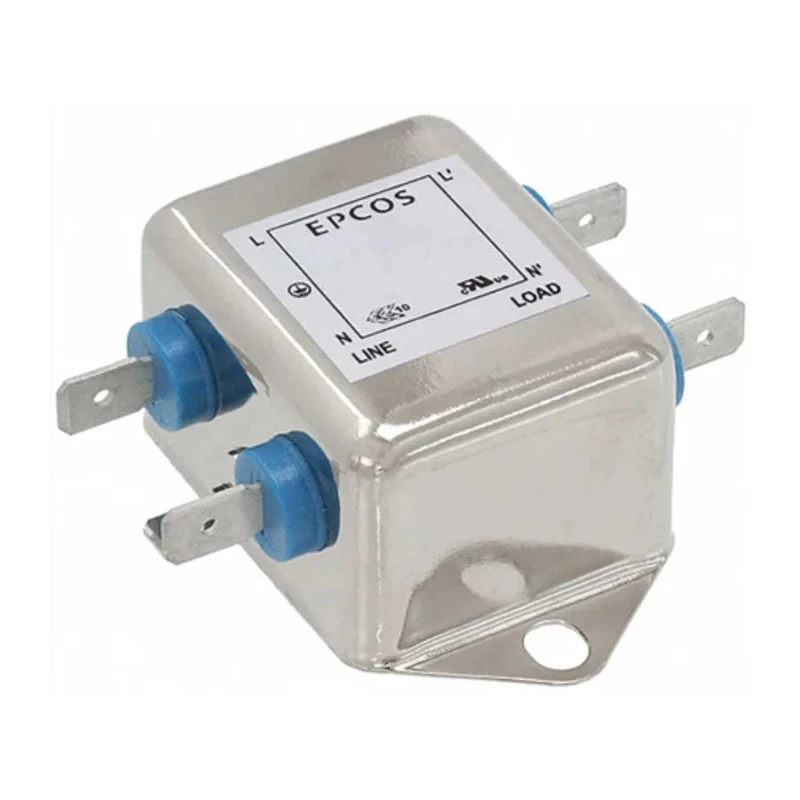

TDK Flange EMC Filter 6 A 250V ac/dc 60Hz Tab 1 Phase B84111F0000B060



Category EMC Filter Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	26mm
Length	64mm
Model	B84111F0000B060
Depth	60.6mm
Mount Type	Flange
Operating Frequency	60Hz
Series	B84111F
Maximum Operating Temperature	100°C
Number Of Stages	1
Capacitance	2pF
Minimum Operating Temperature	-25°C
Maximum Current	6A
Number of Phases	1
Leakage Current	369μA
Maximum Voltage	250V ac/dc
Inductance	2mH
Standards/Approvals	UL 1283
Termination Style	Tab

Key Features

This EMC filter is designed for flange mounting with a compact size and durable construction.
It operates efficiently within a temperature range of -25°C to 100°C.
The filter features a capacitance of 2pF and inductance of 2mH ensuring optimized leakage current of 369μA.
The termination style uses tab connectors suitable for easy installation in power line applications.
Its compact dimensions are 64mm length, 60.6mm depth, and 26mm height for versatile mounting options.
Compliant with UL 1283 standard ensuring safety and performance reliability.
Manufactured in China, this filter suits many industrial electronic applications including telecom and data system power supplies.

Product Description

TDK B84111F0000B060 Flange EMC Filter is a high-quality power line filter for single phase applications, rated at 6 amps current and 250 volts ac/dc voltage with a 60 Hz operating frequency. It is designed for flange mounting and uses tab termination style, providing a secure and reliable connection.

This EMC filter is built to minimize electromagnetic interference with a capacitance of 2pF and inductance of 2mH, resulting in a leakage current of only 369μA. It operates reliably over a temperature range from -25°C to 100°C, making it suitable for a broad range of industrial and electronic environments.

The compact and robust design includes dimensions of 64mm in length, 60.6mm in depth, and 26mm in height, allowing easy integration in switched mode power supplies commonly used in telecom and data systems.

The product complies with UL 1283 standards, ensuring certified safety and performance for electromagnetic compatibility (EMC) filtering. This flange EMC filter provides optimized leakage current performance. Compact design allows easy installation in tight spaces.

Wide operating temperature range supports diverse industrial applications. Suitable for switched mode power supplies in telecom and data systems. UL 1283 certification guarantees reliability and safety. Manufactured in China with polyurethane potting for insulation and durability.

Termination with tab connectors provides secure electrical connections.

This TDK power line EMC Filter is ideal for industrial electronics requiring suppression of interference and noise on single-phase AC or DC power lines. Explore the Electronics Components category for more power line filter solutions on EnvMart.
