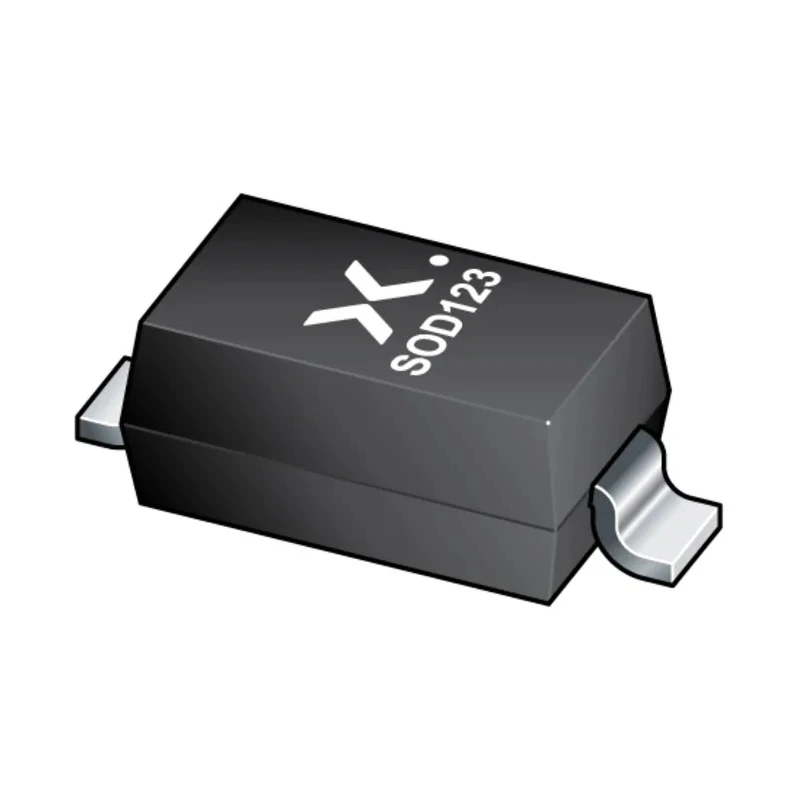

Nexperia Medium Power Low VF Schottky Diode 30 V 2.83 A 2-Pin SOD-123 PMEG3020EGWX

Name: Nexperia Medium Power Low VF Schottky Diode 30 V 2.83 A 2-Pin SOD-123 PMEG3020EGWX
Brand: Nexperia
SKU: 215024
Price: 0.13 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.3mm
Length	2.8mm
Model	PMEG3020EGWX
Width	1.7mm
Mount Type	Surface
Series	PMEG3020EGW
Maximum Operating Temperature	150°C
Package Type	SOD-123
Minimum Operating Temperature	-55°C
Pin Count	2
Forward Current	IF ≤ 2 A
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	2.83A
Peak Reverse Repetitive Voltage Vrrm	30V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	1000μA
Peak Non-Repetitive Forward Surge Current Ifsm	9A
Maximum Forward Voltage Vf	620mV
Reverse voltage	VR ≤ 30 V

Key Features

This Schottky diode supports a maximum continuous forward current of 2.83 A.
Peak reverse repetitive voltage rated at 30 V.
Low typical forward voltage of 510 mV for improved efficiency.
Wide operating temperature range from -55°C to 150°C.
AEC-Q101 qualified for automotive applications.
Low reverse current typically 400 μA reduces power loss.
High surge current capability of 9 A peak non-repetitive forward surge current.
Single diode construction with 2 pins suitable for PCB assembly.

Product Description

Nexperia PMEG3020EGWX is a medium power low forward voltage Schottky diode designed for high efficiency and space-saving applications. Encapsulated in a small surface-mount SOD-123 package, it supports a maximum continuous forward current of 2.83 A and withstands peak reverse repetitive voltages up to 30 V, making it ideal for various semiconductor circuits in electronics and automotive sectors.

This diode exhibits a typical forward voltage of 510 mV and a low reverse current, optimizing power efficiency for DC-DC converters, switch mode power supplies, and reverse polarity protection circuits. Its robust operating temperature range from -55°C to 150°C ensures reliability in harsh industrial environments, and AEC-Q101 qualification confirms automotive-grade compliance.

The compact physical dimensions of 2.8 mm length, 1.7 mm width, and 1.3 mm height support high-density PCB designs, contributing to space savings without performance compromise. The diode’s design integrates a guard ring for stress protection, enhancing durability during surge conditions up to 9 A peak non-repetitive forward surge current.

Applications include automotive electronic systems, low power consumption circuits, and high efficiency rectification tasks. This device is well suited for use in manufacturing, automotive electronics, power management, and consumer electronic devices requiring efficient rectification and minimal power loss.

This Schottky diode supports a maximum continuous forward current of 2.83 A. Peak reverse repetitive voltage rated at 30 V. Low typical forward voltage of 510 mV for improved efficiency. Wide operating temperature range from -55°C to 150°C.

AEC-Q101 qualified for automotive applications. Small SOD-123 surface-mount package dimensions: 2.8x1.7x1.3 mm. Low reverse current typically 400 μA reduces power loss. High surge current capability of 9 A peak non-repetitive forward surge current.

Single diode construction with 2 pins suitable for PCB assembly. Ideal for DC-DC conversion and switch mode power supplies. Explore more Schottky diodes and rectifiers in EnvMart’s semiconductor category for your industrial, automotive, and electronic manufacturing needs.
