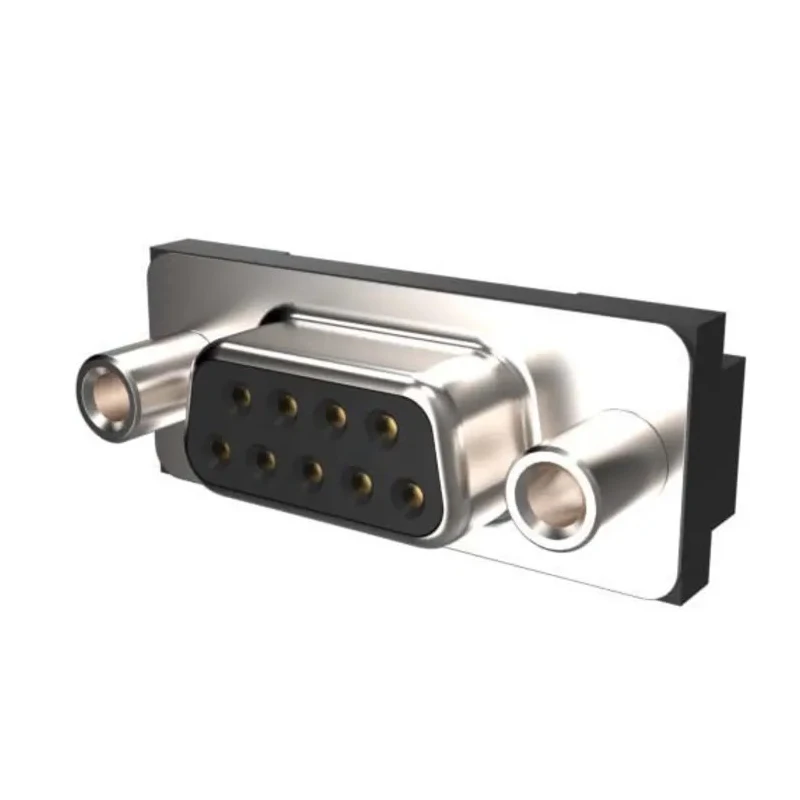

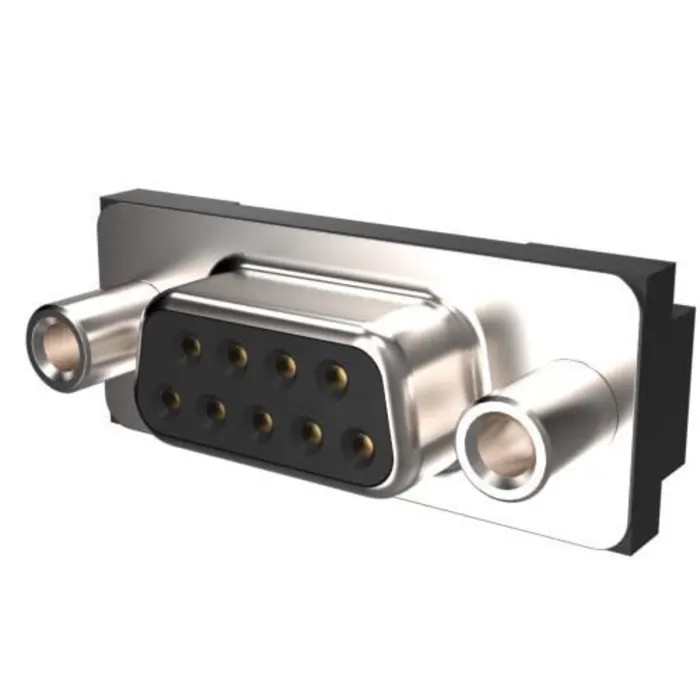

Amphenol Communications Solutions Delta D 9 Way Right Angle 2.74 mm Pitch Plug-in D-Sub Connector with Screw D09S13A4GX00LF
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Amphenol Communications Solutions |
| Orientation | Right Angle |
| Current | 5A |
| Model | D09S13A4GX00LF |
| Mount Type | Plug-in |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | Delta D |
| Mounting Hardware | Screw |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.74mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | E |
Key Features
- Constructed with a durable polybutylene terephthalate housing for reliable insulation.
- Contact material consists of phosphor bronze with gold over nickel plating for enhanced conductivity and corrosion resistance.
- Rated for a maximum current of 5A and a voltage of 300V suitable for various electronic applications.
- Optimized for solder termination with a female connector gender and right angle orientation for PCB mounting.
- Operates effectively in temperature ranges from -55°C to 125°C, accommodating harsh environments.
- Designed to meet 200 mating cycles with harpoons and threaded insert UNC 4-40 mounting hardware.
- Standard Delta D series ensures compatibility with typical D-Sub connector requirements.
- Made in India supporting local manufacturing standards.
Product Description
Amphenol Communications Solutions presents the D09S13A4GX00LF, a Delta D series 9-way D-Sub connector with a right angle orientation and 2.74 mm pitch. This plug-in connector, equipped with screw mounting hardware and female contacts, is designed for high-reliability applications in electronics and industrial environments.
The connector housing is made of polybutylene terephthalate providing excellent insulation and durability. The contacts are phosphor bronze plated with gold over nickel to ensure optimal electrical conductivity and resistance to corrosion over repeated mating cycles.
Rated for 5 amperes of current and a voltage rating up to 300 volts, it is suitable for a wide range of power and signal transmission needs. Its solder termination type enables secure, permanent connections on printed circuit boards with a typical thickness of 1.6 mm.
This connector operates reliably within a wide temperature range from -55°C to 125°C, making it well suited for industrial, manufacturing, laboratory, and commercial electronics applications where temperature extremes may be encountered.
Durable polybutylene terephthalate housing for insulation and robustness. Gold over nickel plated phosphor bronze contacts for long life and conductivity. Rated 5A current and 300V voltage for versatile electronic uses. Right angle plug-in design optimized for PCB mounting with screw hardware.
Wide operational temperature range of -55°C to 125°C for harsh environments. 200 cycles mating durability adhering to quality standards. Delta D series standard for compatibility and interchangeability. Manufactured in India ensuring local quality compliance.
Its robust design makes it ideal for use in electronic components assembly, power connectors, computer interface hardware, telecommunication systems, and industrial control panels.
Explore a comprehensive range of D-Sub Connectors and industrial connector solutions on EnvMart for all your electronic connector needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 5A and a voltage of 300V, making it suitable for various electronic applications.
The housing is made of polybutylene terephthalate, while the contacts consist of phosphor bronze with gold over nickel plating for enhanced conductivity and corrosion resistance.
This D-Sub connector features 9 contacts, designed for reliable connections in electronic applications.
It utilizes a solder termination type, allowing for secure and permanent connections on printed circuit boards.
Yes, it is designed to meet the Delta D series standards, ensuring compatibility with typical D-Sub connector requirements.
This model features a right angle orientation, optimized for PCB mounting.
It comes with screw mounting hardware, facilitating easy installation.
It is designed to withstand 200 mating cycles, ensuring durability for repeated use.
The pitch size of this model is 2.74 mm, which is standard for this type of connector.
This connector is manufactured in India, supporting local manufacturing standards.
