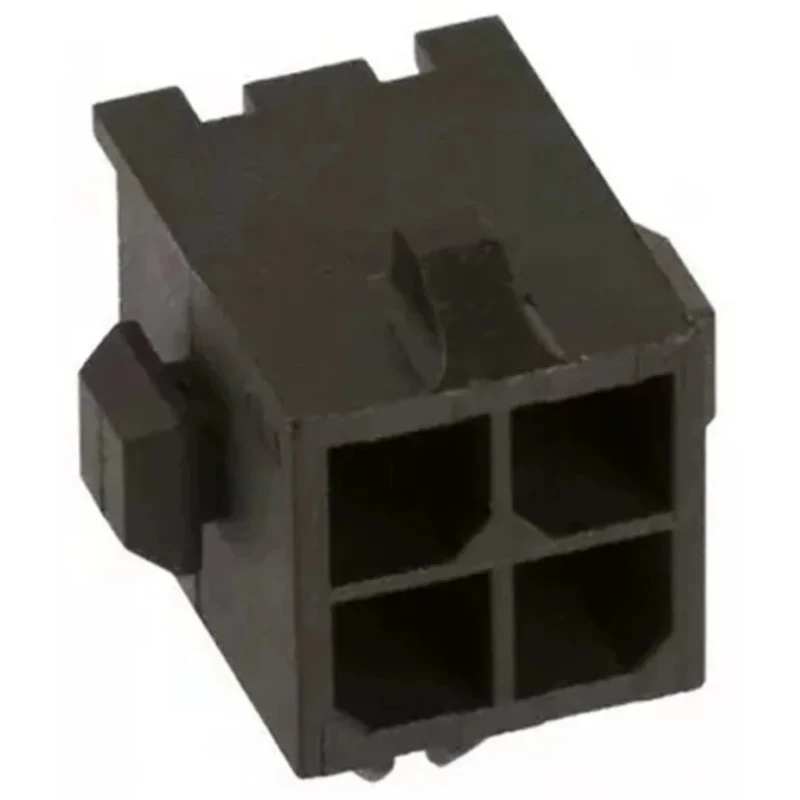

TE Connectivity Micro MATE-N-LOK Series Right Angle Through Hole PCB Header 4 Contacts 3mm Pitch 2 Row Shrouded 3-794618-4
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Micro MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.18mm |
Key Features
- Constructed with a nylon housing for durability and insulation.
- Brass contacts plated with tin ensure reliable conductivity.
- Designed for right angle mounting with through hole solder termination.
- Suitable for industrial, household appliance, and lighting applications.
- Operates safely between -40°C to 105°C with a voltage rating of 250V and current rating of 5A.
- Features polarization and positive locking tabs to prevent mis-mating.
- Tail pin length is precisely 3.18 mm for stable PCB attachment.
- Shrouded design adds protection to contacts and enhances mechanical reliability.
Product Description
TE Connectivity 3-794618-4 Micro MATE-N-LOK Series Right Angle Through Hole PCB Header is a high-quality wire-to-board connector featuring 4 contacts arranged in 2 rows with a 3 mm pitch. The shrouded nylon housing ensures electrical insulation and mechanical protection, suitable for demanding industrial and consumer electronic applications.
The connector uses brass contact material plated with tin, providing excellent conductivity and corrosion resistance. Its right angle orientation and through hole mount type facilitate secure PCB attachment with solder termination and tail pin retention, ensuring robust connections in factory automation, lighting systems, and household appliances.
Operating temperature ranges from -40°C to 105°C allow reliable performance under varying environmental conditions. The connector supports a voltage rating of 250 V and a current rating of 5 A, meeting industrial standards without additional approvals. Polarization and positive lock tabs prevent mis-mating and secure cable connections, enhancing overall system reliability.
This Micro MATE-N-LOK connector series includes variants optimized for LED lighting with low profile mating heights and is compatible with IR reflow soldering processes, making it versatile for modern manufacturing workflows.
Constructed with a nylon housing for durability and insulation. Brass contacts plated with tin ensure reliable conductivity. Designed for right angle mounting with through hole solder termination. Suitable for industrial, household appliance, and lighting applications.
Operates safely between -40°C to 105°C with a voltage rating of 250V and current rating of 5A. Features polarization and positive locking tabs to prevent mis-mating. Tail pin length is precisely 3.18 mm for stable PCB attachment.
Shrouded design adds protection to contacts and enhances mechanical reliability.
Ideal for electronics manufacturing in industrial, automotive, lighting, and consumer electronic sectors, this PCB Header connector offers reliable and secure wire-to-board connections. It supports both vertical and right angle configurations and is made in China.
Explore more connectors and electronic components designed for diverse industrial applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 250V and a current rating of 5A, making it suitable for a variety of applications.
The tail pin length is precisely 3.18 mm, ensuring stable attachment to the PCB.
It features a nylon housing for insulation and durability, with brass contacts plated with tin for reliable conductivity.
The connector operates safely between -40°C to 105°C, allowing for reliable performance in various environmental conditions.
It is designed for right angle mounting with through hole solder termination, facilitating secure PCB attachment.
Yes, it includes polarization and positive locking tabs to prevent mis-mating and ensure secure connections.
It is suitable for industrial, household appliance, and lighting applications, providing reliable wire-to-board connections.
This model features 4 contacts arranged in 2 rows with a 3 mm pitch.
Yes, it is compatible with IR reflow soldering processes, making it versatile for modern manufacturing workflows.
It is classified as a wire-to-board connector system, designed for secure connections between wires and printed circuit boards.
This connector is manufactured in China, as indicated by its country of origin.
The contacts are arranged with a pitch of 3 mm, which is standard for this type of connector.
