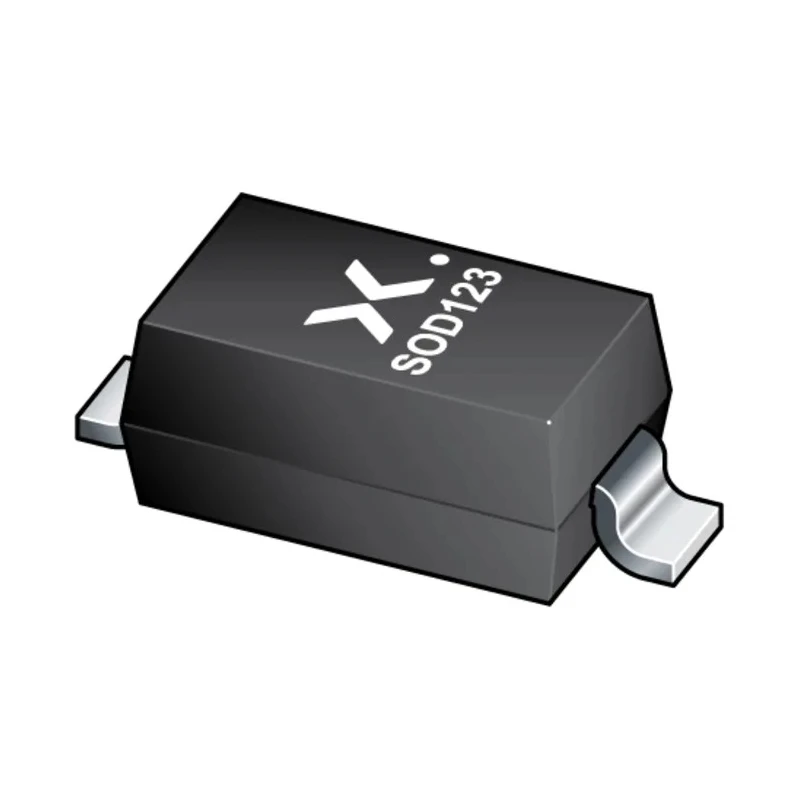

Nexperia 20 V 500 mA Schottky Diode 2-Pin Surface Mount SOD-123 PMEG2005EGWX

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 20 V 500 mA Schottky Diode 2-Pin Surface Mount SOD-123 PMEG2005EGWX

Name: Nexperia 20 V 500 mA Schottky Diode 2-Pin Surface Mount SOD-123 PMEG2005EGWX
Brand: Nexperia
SKU: 215016
Price: 0.06 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.3mm
Length	2.8mm
Model	PMEG2005EGWX
Width	1.7mm
Mount Type	Surface
Series	PMEG2005EGW
Maximum Operating Temperature	150°C
Package Type	SOD-123
Minimum Operating Temperature	-55°C
Pin Count	2
Forward Current	IF ≤ 0.5 A
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	500mA
Peak Reverse Repetitive Voltage Vrrm	20V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	200μA
Peak Non-Repetitive Forward Surge Current Ifsm	10A
Maximum Forward Voltage Vf	390mV
Reverse voltage	VR ≤ 20 V

Key Features

Features low forward voltage of typically 355 mV for energy-efficient operation.
Supports a maximum continuous forward current of 500 mA.
Has a peak reverse repetitive voltage rating of 20 V for reliable blocking.
Small plastic SOD-123 package suitable for compact surface mounting.
Qualified to AEC-Q101 automotive standards ensuring reliability in harsh conditions.
Operation temperature range from -55°C to 150°C supports varied industrial environments.
Low reverse current (typically 40 μA) reduces leakage and power loss.
Meets high surge current capability of 10 A peak non-repetitive forward surge current.

Product Description

Nexperia PMEG2005EGWX is a low forward voltage MEGA Schottky barrier rectifier packaged in a small SOD-123 2-pin surface mount device. It operates with a maximum continuous forward current of 500 mA and a reverse voltage up to 20 V, making it suitable for high efficiency and low loss applications.

This diode features a planar maximum efficiency design with an integrated guard ring for stress protection, enhancing reliability in various industrial and automotive conditions. Its low typical forward voltage of 355 mV and low reverse current of 40 μA enable efficient power conversion and reduced heat dissipation.

The PMEG2005EGWX diode is qualified to AEC-Q101 automotive standards, supporting operation from -55°C to 150°C, making it ideal for automotive electronics as well as power supply circuits. Its peak non-repetitive forward surge current of 10 A allows it to handle transient current spikes safely.

Common applications include low voltage rectification, DC-to-DC converters, switch mode power supplies, reverse polarity protection, and devices requiring low power consumption. Its compact SOD-123 plastic package aids integration in space-constrained PCB designs.

Low forward voltage enhances energy efficiency in switching applications. High surge current capability for improved robustness against transient events. Compliance with automotive AEC-Q101 ensures quality and durability.

Wide operating temperature range suitable for harsh industrial environments. Compact surface mount package minimizes PCB space requirements. Low leakage currents reduce power losses in power sensitive circuits.

For electronics designers requiring a reliable and efficient Schottky diode with automotive qualification, the Nexperia PMEG2005EGWX is a premium choice. It supports a wide range of uses including automotive, industrial, and power electronic applications.

Explore more semiconductor products in the Schottky Diodes & Rectifiers category at EnvMart for your next project and discover quality components that meet exacting industrial standards.

Explore more products in our Schottky Diodes & Rectifiers category.
